Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | 2.2Mpa O Ring Manufacturing Machine,100T O Ring Manufacturing Machine,600*600*2 Rubber Compression Moulding Machine |
||
♥ Qingdao HHS Cooperate Sincerely With You ♥
“ rubber vulcanizing press machine”
◊Features:
8 Ton pressure rubber o ring making machine
This machine consists of heating plate , beam and plate form , cylinder , base ,electrical system , etc .it is widely used for heating , vulcanizing and solidifying various kinds of rubber molded product , such as seal , gasket , o rings , etc
1. The machine adopts the semiautomatic control. Worker can set the vulcanzing time , vulcanizing
temperature in the cabinet . On finishing vulcanization , machine will alarm and worker can open mold
2. Most spare parts for hydraulic system are from our best domestic brand
3. Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4. The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5. The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6. Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7. Main electrical elements are from Schneider France ,which can stabilize machine performance

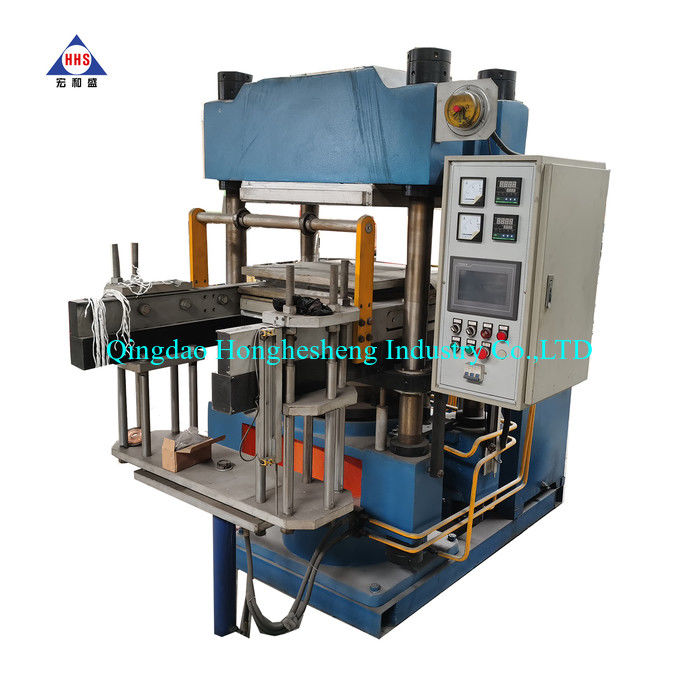

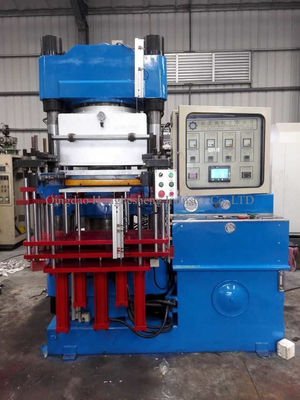

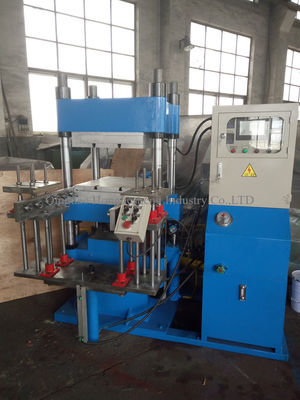

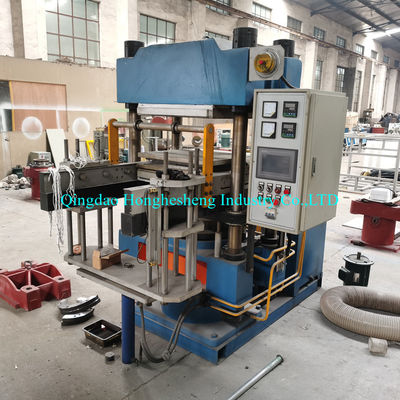

◊Machine Pictures:
1. The machine adopts the world advanced UG software and PO0-E3D analysis aided design to integrally cast and form the optimal design of high rigidity , tight structure and long life service
2. Heating Plate is made of deep hole processing , after carburizing process,by using the principle of heat flux,high precision , and the advantage temperature analysis of optimal design
3. Use computer CNC processing to ensure the optimal precision of design
4. Japanese technology planar average pressure correction with a highest precision up to 0.2mm
5. Heating plate/ in-and-out template adopts carburizing treatment and is completed by grinding and nitriding , long wearproof,not easy to be deformed and high planar precision
◊Main Components:
(1) Hydraulic Station:
(2) Electric control cabinet:
(3) The Piston:
(4) The Hot Plate:
