Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | Frame Speed Bump Molding Press,750*850*2 Speed Bump Molding Press,Rubber Speed Hump Making Machine |
||

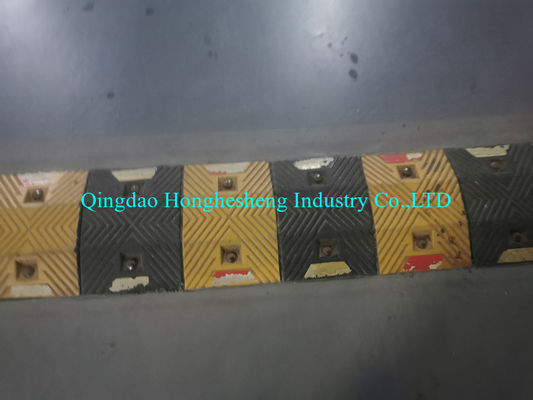

Rubber Traffic Speed Bump Molding Press/Speed Hump Making Machine
-High speed open/close molds, high production efficiency.
-Automatic in/out mold and ejector device, low labor strength.
-Optional normal valve or proportional valve, advanced oil way matching, reduce energy consumption.
-The electric system adopt PLC programming control, which is easy to be operated.
-We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time.
| Version | XLB350*350*2 | XLB400*400*2 | XLB500*500*2 | XLB600*600*2/4 | XLB750*850*2 | XLB1000*1000*2 |
| Mould closing force(MN) | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.5 |
| Plate spacing(mm) | 125 | 125 | 125 | 125 | 125 | 200 |
| Plate work layer | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Platen unit area pressure(Mpa) | 2.04 | 3.13 | 2.52 | 2.78 | 2.51 | 2.5 |
| Plunger sroke(mm) | 250 | 250 | 250 | 250/500 | 250 | 400 |
| Heating way | Electricity/Steam | |||||
| Main motor power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Size(mm) | 1450*400*1350 | 1600*400*1440 | 1450*690*1818 | 1880*780*1660(2150) | 2100*1010*1900 | 2400*960*2500 |
| Weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |
| Structure form | Column type | Column type | Column type | Column type | Column type/Frame type | Frame type |

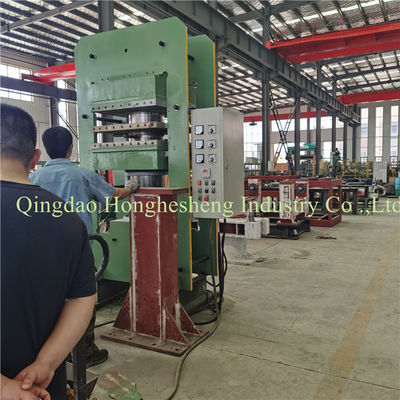

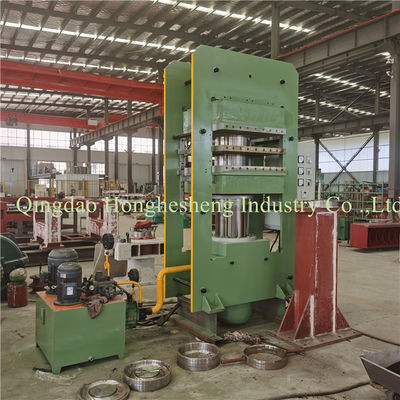

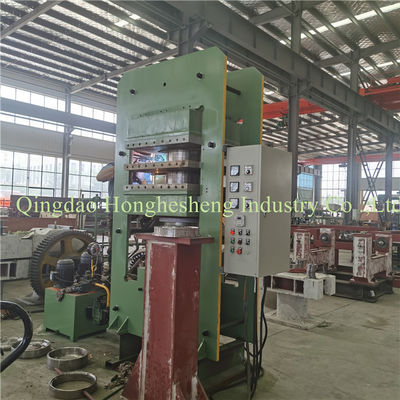

◊Machine Pictures:
