Product Details:
|
| Place Of Origin: | Shandong, China | Type: | Tire Machine |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Warranty Of Core Co: | 3 Years |
| Core Components: | PLC, Motor | Colour: | Green,blue, Customize |
| Dimension(L*W*H):: | 900x730x1700mm | Power (kW): | 5.5 KW |
| Weight (KG): | 1200 KG | Voltage: | According To Customers' Requirement |
| High Light: | 420mm Width Tyre Tube Making Machine,305m/min Tyre Tube Making Machine,Motorcycle Inner Tube Making Machine |
||
MOTORCYCLE TYRE TREAD COOLING CUTTING PRODUCTION LINE

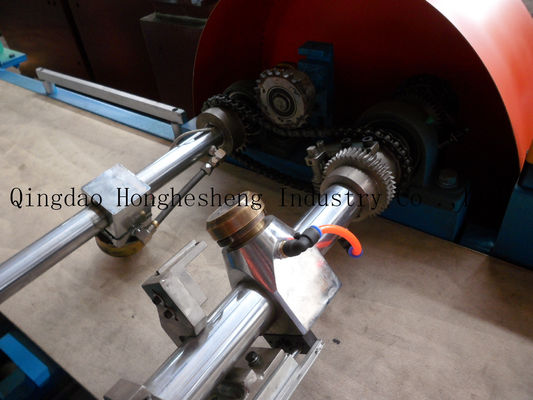

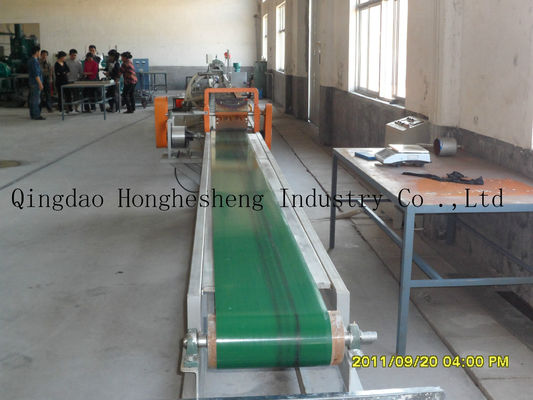

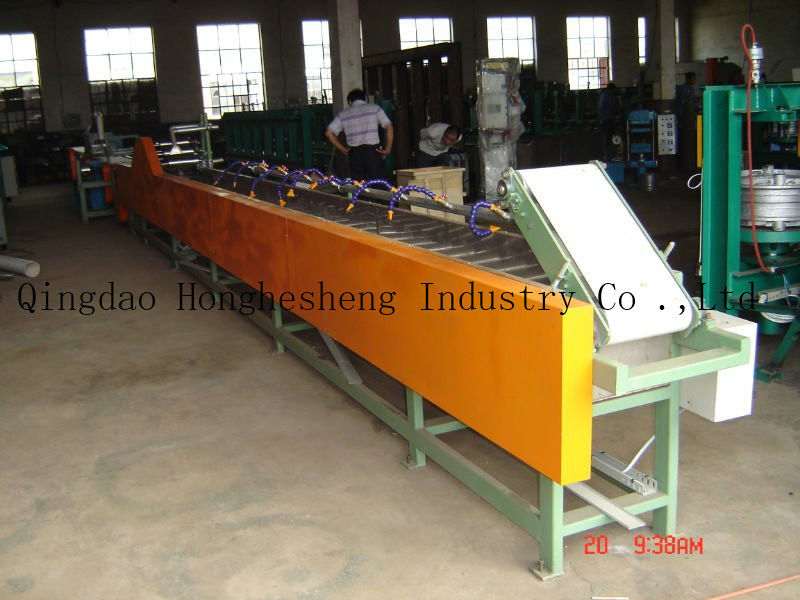

Full-automatic Motorcycle Inner Tube Cooling and Cutting Line
Application:
Mainly used for productionof inner tube with rubber base tube value,also can be uased for common valve of bicycle and motorcycle inner tube productiobn.
Structure features:

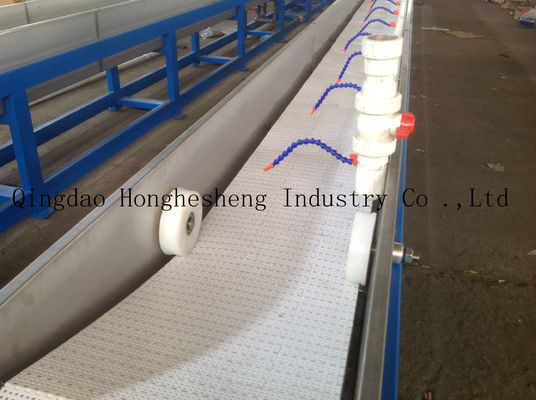

The line is mainly composed of cooling shringkage dry,sensor length measurement&cutting device,both inside and outside release agent powder spraying device&pick-up,formed a complete automation for the production of tube.
Main technical parameter for inner tube production line
| Prouct Type | NSX-ML |
| Tube Specifications | inner tube |
| Double layer tube width(mm) | <420 |
| Line speed (m/min) | 8--305 |
| beat the bore diameter | 8--10 |
| air pressure(mpa) | 0.7 |
| total capacity | 22 |
| single machine weight(kg) | 7000 |
| shape size(mm) | 35000*1300*850 |
