Product Details:
|
| Place Of Origin: | Shandong, China | Type: | Tire Machine |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Warranty Of Core Co: | 3 Years |
| Core Components: | PLC, Motor | Colour: | Green,blue, Customize |
| Dimension(L*W*H):: | 900x730x1700mm | Power (kW): | 5.5 KW |
| Weight (KG): | 1200 KG | Voltage: | According To Customers' Requirement |
| High Light: | Tire Bead Grommeting Winding Machine,28 Inch Bead Grommeting Winding Machine,Motorcycle Tire Bead Winding Machine |
||

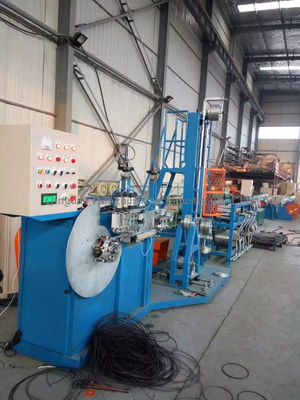

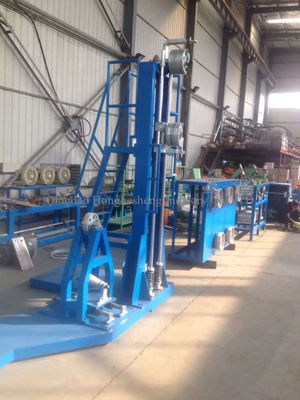

Mototcycle Tire Bead Wire Grommeting Winding Machine
Application:
This machine is production line of bead ring for tire manufacture,suitable for bead with rectangular or square cross section structure.
Structure features:
The main structure of this machine is composed by bead wire let-off device,bead wire polishing heating device,grommeting extrusion,cooling traction storage devices,length fixing&cutting device and bead forming equipment,adopt PLC (program control)set circling numbers,bead ring free for cloth wrapping,automatic discharge .Wire extrusion die device is of wide adaptability and easy disassembly.
Main technical parameter for bead wir grommeting machine:
| Bead diameter(inch) | 8-28 | 3-12 |
| Wire let-off shelf(pcs) | 1-8 | 1-8 |
| Let-off shelf applicable for finished wire coil inner diameter(mm) | 350 | 350 |
| Extruder (optional) | 65 | 65 |
| Wire die plate hole(pcs) | 1-8 | 1-8 |
| Shaping drum speed(r/min) | 100 | 100 |
| Installed capacity(kw) | 36 | 36 |
| Dimension(L*W*H)(mm) | 10500*2200*2800 | 10500*2200*2800 |
