Product Details:
|
| Place Of Origin: | Shandong, China | Type: | Tire Machine |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Warranty Of Core Co: | 3 Years |
| Core Components: | PLC, Motor | Colour: | Green,blue, Customize |
| Dimension(L*W*H):: | 900x730x1700mm | Power (kW): | 5.5 KW |
| Weight (KG): | 1200 KG | Voltage: | According To Customers' Requirement |
| High Light: | 20Cuts/Min horizontal cutting machine,horizontal cutting machine 100mm,1000mm Rubber Strip Bias Cutter |
||

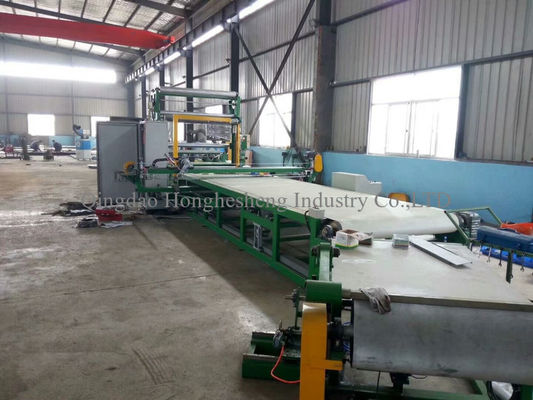

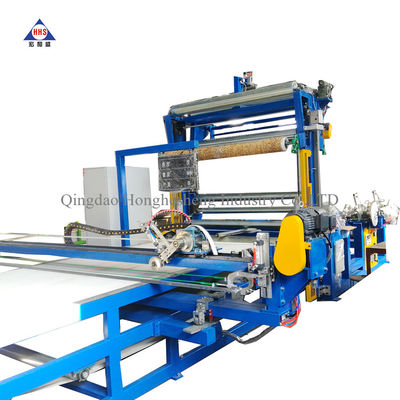

Rubber strip bias cutter / cutting machine / horizontal cutter
Application:

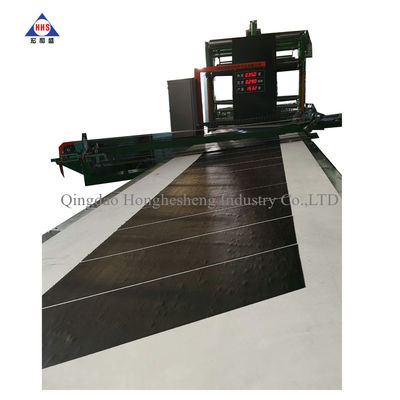

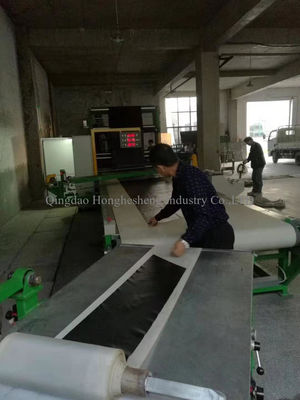

This machine is mainly used to cut the rubber coated cord ,canvas ,percale into pieces with specific width and angle.And the cutting-finished cord (curtain) is rolled up by hand for later forming use .
Features:
The cutting machine mainly consists of let-off device,feed devices and fixed-length cutting device.With adjustment by the encoder,it can set the angle of cut cloth.Cutting number adjustment range is big,wile cutting sroke is adaptable to(curtain)fabric.
Main technical parameters:
| Product Type | WC-1500 |
| Cutting times per minute | 10-20 |
| Applicable cord width | 1500mm |
| Cord roll diameter | 950mm |
| Cloth cutting width | 100-1000mm |
| Cloth cutting angle | 0-50° |
| Cutting stroke | 2800mm |
| Length fixing mode | Manual or automatic |
| Cutting speed | 5700 r/min |
| Compressed air | 0.6-0.8Mpa |
| Total capacity | 10kw/h |
| Dimension(L*W*H) | 10500*4300*2100mm |
| Weight |
4500kg |
