Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | Second Hand Old |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 75 L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 110KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 9500KG | Dimension(l*w*h): | 3600*2280*2650mm |
| High Light: | Reclaimed Rubber Kneader Machine,Pneumatic Rubber Kneader Machine,150L Rubber Kneader Machine |
||
It is mainly used for plasticating, mixing and final mixing the stock
Range of specifications:25L-650L
Type of rotor: To be advise
Intermeshing rotor: NG intermeshing rotor
Type of ram: hydraulic type, pneumatic type
It is mainly used for mixing and plasticating rubber or plastics etc.
Range of specifications:25L-150L
Lab kneader
This machine consists of pnuematic control system , heating/cooling system, tilting system,rotor,thermal resistance,main driving system,mixing chamber,rotor ,dust stop device , ete . It is used to plasticize , mix and final mix rubber , plastics or blend of plastics and rubber
1. Pneumatic control system is controlled by PLC instruction . A bi-directional air cylinder make the ram up or down , in case thatoverload occurs in the mixing chamber ,the top ram can be raised automatically or manually if necessary , so as to protect motor from overload
| Model |
X(S)N- 10X32 |
X(S)N- 20X32 |
X(S)N- 35X30 |
X(S)N- 55X30 |
X(S)N- 75X30 |
X(S)N- 110x30 |
X(S)N- 150x30 |
|
Total volume of mixing chamber |
25L | 45L | 75L | 125L | 180L | 250L | 325L |
|
Working volume of mixing chamber |
10L | 20L | 35L | 55L | 75L | 110L | 150L |
|
Driving motor power |
15KW | 30KW | 55KW | 75KW | 110KW | 185KW | 220KW |
|
Tilting motor power |
1.1KW | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW | 5.5KW |
| Tilting angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
|
Rotational speed of the rotor (front/rear) |
32/23.5 r/min |
32/25 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
30/24.5 r/min |
|
Pressure of compressed air |
0.5-0.8 MPa |
0.5-0.8MPa | 0.5-0.8MPa | 0.6-0.8MPa | 0.6-08MPa | 0.6-0.8MPa | 0.6-0.8MPa |
|
Capacity of compressed air |
≥0.5m³/min | ≥0.7m³/min | ≥0.9m³/min | ≥1.0m³/min | ≥1.0m³/min | ≥1.5m³/min | ≥2.0m³/min |
|
Pressure of cooling water |
0.2-0.4 MPa |
0.2-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa | 0.3-0.4MPa |
|
Pressure of heating steam (plastic mixing) |
0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
|
Overall dimension |
2580X1300 X2280mm |
2630X1520 X2550mm |
3200X1900 X2950mm |
3280X1930 X3070mm |
3330X2620 X3340mm |
3930X3000 X3660mm |
4200X3300 X3900mm |
| Weight | 3300Kg | 4500Kg | 6500Kg | 7800Kg | 10500Kg | 14500Kg | 19500 |

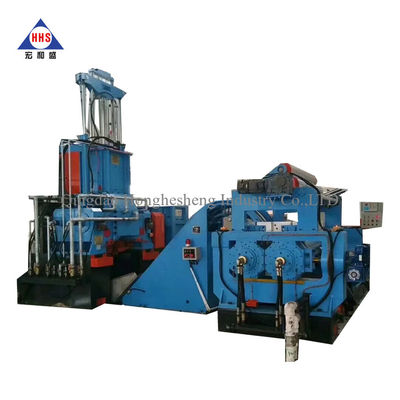

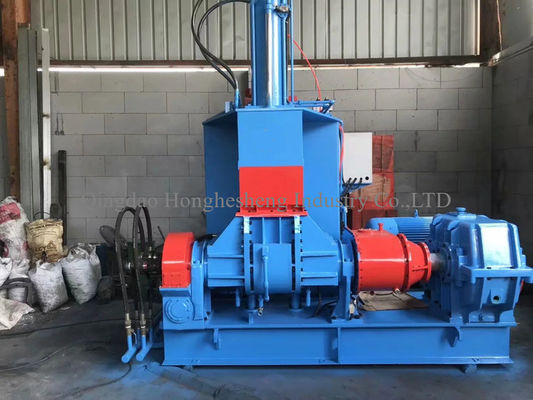

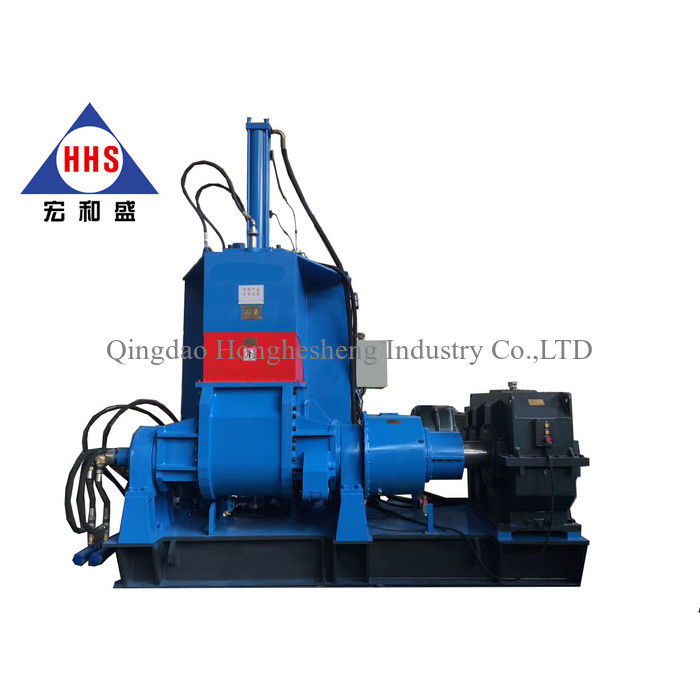

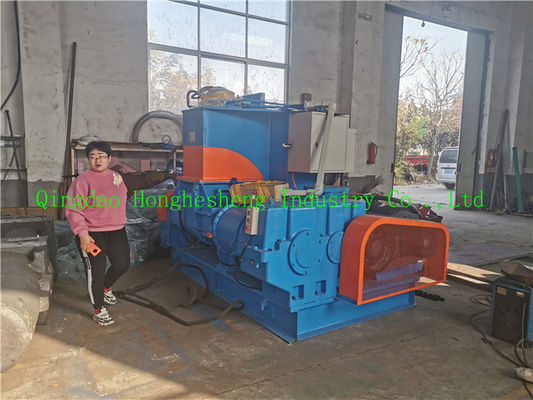

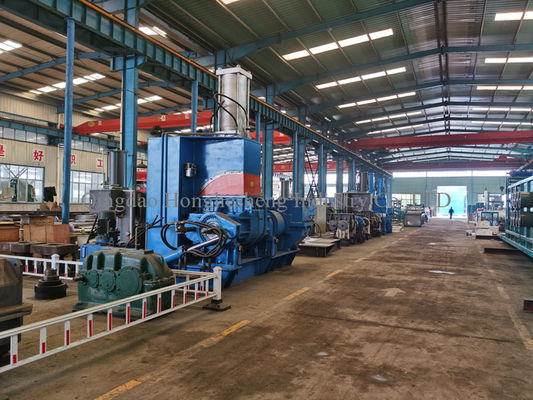

kneader Machine photos:
