Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 55L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 75KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 7800KG | Dimension(l*w*h): | 3200*1900*2880mm |
| High Light: | Rubber Compound Dispersion Kneader Machine,75 Liters Dispersion Kneader Machine,CE Rubber Compound Mixer |
||

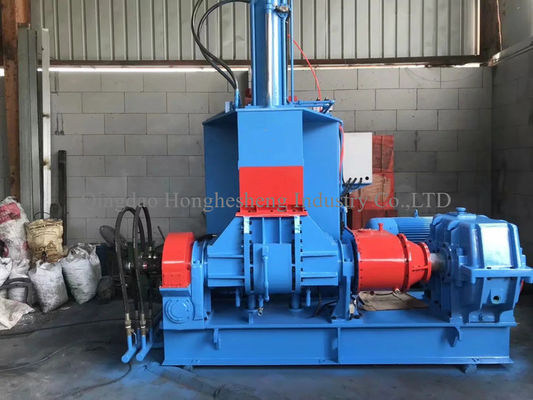

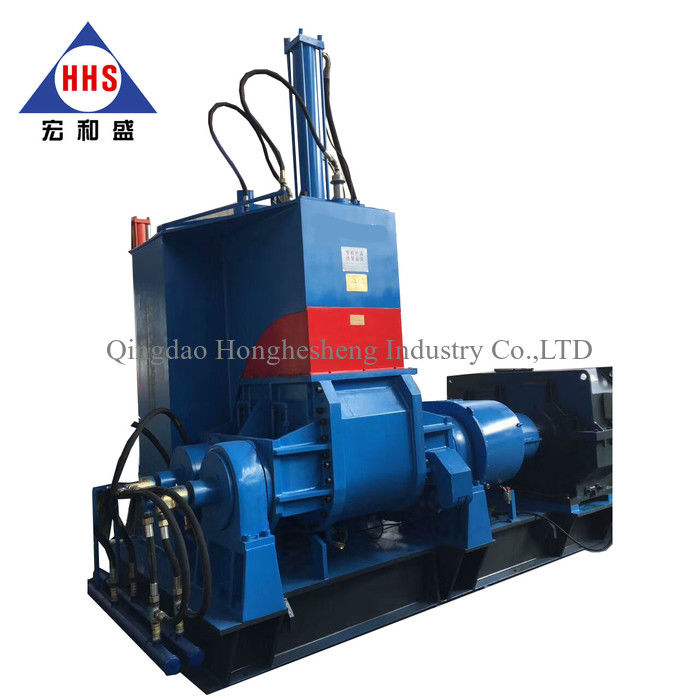

75 Liters Rubber Compounds Dispersion Kneader Mixer With CE Certificates/75L Dispersion Kneader Mixer For Rubber Compound
1. With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellentstable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.
3. Surface where is contacted with the materials are all platedwith hard chromium and polished, which is corrosion-resistantand wear-resistant.
4. Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent water-cooling or steamheating effect and fit in with the needs of plastics and rubberprocessing technology.
5. Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the front rotors to discharge and is easy for changingpigments and cleaning the chamber.
6. Programmable logic controller(PLC) is adopted in theelectric-control system, which has reliable control function andalarm function, and interlock safety-protection function and itis provided with serial interface of net.
| Model | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 | |
| Total volume of mixing chamber | L | 75 | 125 | 175 | 250 |
| Working volume of mixing chamber | L | 35 | 55 | 75 | 110 |
| Motor power | KW | 55 | 75 | 110 | 185 |
| Tilting motor power | KW | 2.2 | 2.2 | 2.2 | 5.5 |
| Tilting | 140o | 140o | 140o | 140o | |
| Speed ratio of rotors | r/min | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of compressed air | Mpa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Comsumption of cooling water | Mpa | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | ≥1.5 |
| Steam pressure | Mpa | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.3~0.4 |
| Size | mm | 3200*1900*2945 | 3300*1900*2900 | 3760*2143*3135 | 4075*2710*3580 |
| Weight | kg | 6500 | 7800 | 10200 | 14900 |
