Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | Rubber Flat Belt Vulcanizing Machine,3kW Belt Vulcanizing Machine |
||
Parameter of HOT Highway slow down speed bump making machine & Rubber products vulcanizing press machine
| Item | XLB-D(Y)1000*1000*1 | XLB-D(Y)1200*1200*1 | XLB-D(Y)1500*1500*1 |
| Nominal molding power | 1.60-2.00MN | 3.15MN | 4.00-5.00MN |
| Working layer number | 1 | 1 | 1 |
| Piston stroke | 250-500mm | 250-500mm | 250-500mm |
| Main motor power | 3.0kW | 3.0kW | 3.0kW |
| Plate clearance | 125-500mm | 125-500mm | 125-500mm |
| Heating method | Steam,ecectricity | Steam,ecectricity | Steam,ecectricity |
| Configuration | Frame | Frame | Frame |
| Electric pipr heating power | 12kW | 15.6kW | 27kW |
Configuration of HOT Highway slow down speed bump making machine & Rubber products vulcanizing press machine
A:Frame: The material is Q345 steel welded, and using Co2 protection welding process. high strength, no air hole, not easy broken, then using the tempering process, to release the internal stress. can not out of shape, at last using the CNC machining center treatment.
B:Heating pipes: Stainless steel ,long using life, material is SUS304
C:Plunger: Vanadium and titanium Alloy Chilled Cast Iron, High hardness (68~72HS )and good abrasion , resistance, can not easy broke the seals
D:Hydraulic cylinder: Nodular cast iron, the material is QT-500, hardness 68~72 HS, using the annealing treatment, and flaw detection process choose the best one.
E:The heating plate :35# steel
F: Thermal baffle: Silicon 3 Calcium plate, not easy broke seals
G: Valve: Cartridge valve, not easy broken and no need maintain brand from Huade (China-Germany joint venture )
H:Hydraulic pump: Brand from YUCI YUKEN HYDRAULICS Co., LTD Japan brand
I: Low-voltage apparatus: The brand from Schneider or Mitsubishi

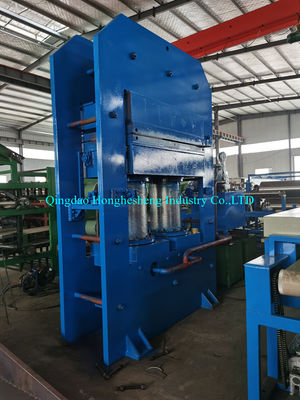

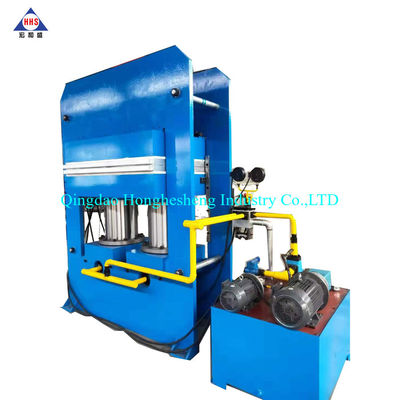

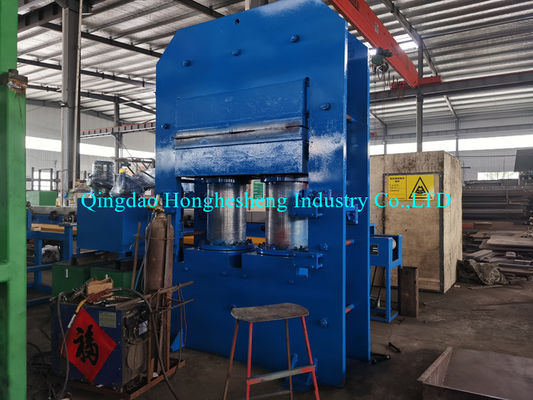

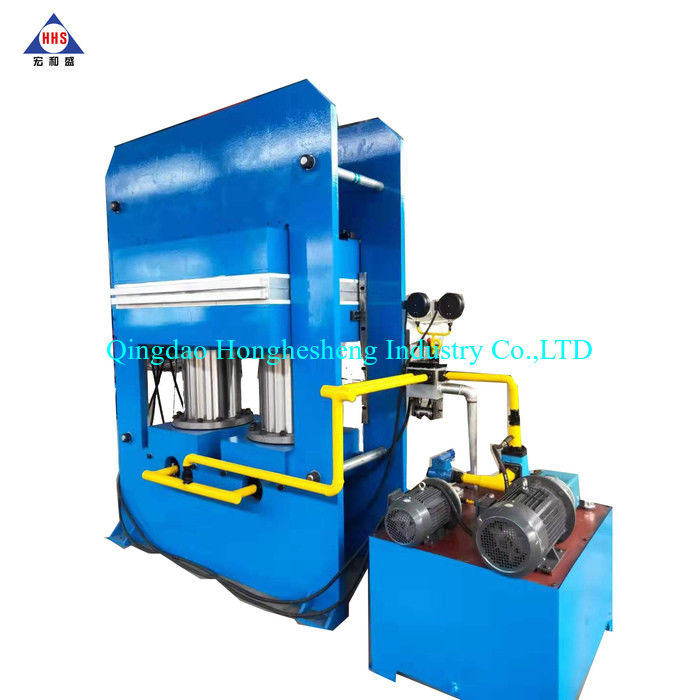

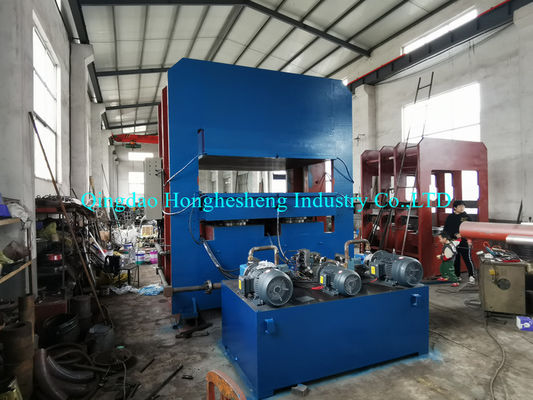

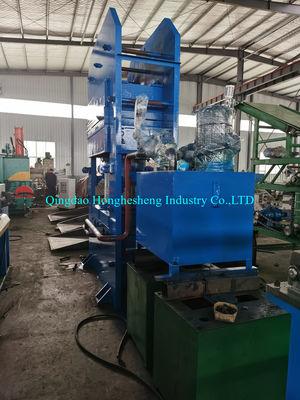

◊Machine Pictures:
◊Related products:
◊Company Information:
