Product Details:
|
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 37kw,20KW,5KW For Lab Two Roll Mill |
|---|---|---|---|
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Weight: | 1t-22t | Dimension(l*w*h): | 1100*700*1200mm |
| High Light: | Dispersion Banbury Internal Mixer,Thermal Resistant Banbury Internal Mixer |
||
1.Mixing Chamber & Rotors
2.Side Board and Pressure Lid
3.Mechanical Seals and Chamber Tilting
4.Electrical Control Panel
rubber kneader
Mixing chamber:
It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.
Thermal Resistance:
There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.
Rotor:
It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.
Cooling/heating system:
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.
Tilting mechanism:
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc.. It is able to actuate the mixing chamber tilting by 140° around the front rotors.
Dust sealing device:
At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.
The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.
Main driving system:
The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.
Pneumatic control system:
Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the ram up or down. In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.
Electric control system:
Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
parameters of rubber kneader
| Model | X(S)N-20*34 | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 |
| Total Volume of Kneading Chamber (L) | 45 | 75 | 125 | 175 | 250 |
| Total Volume of Mixing Chamber(L) | 20 | 35 | 55 | 75 | 110 |
| Driving Motor Power(KW) | 30 | 55 | 75 | 110 | 185 |
| Tilting Motor Power(KW) | 1.5 | 2.2 | 2.2 | 3.0 | 7.5 |
| Tilting Angle | 140° | 140° | 140° | 140° | 140° |
| Rotational Speed of the Rotor (Front/Rear)(r/min) | 34/28 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of Compressed Air(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
|
Flow Rate of Compressed Air (m³/min) |
≥0.7 | ≥0.9 | ≥1.0 | ≥1.0 | ≥1.5 |
| (Rubber Mixing)Pressure of Cooling Water(Mpa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Overall Dimension(L*W*H)(mm) | 3100*1300*2450 | 3200*1900*2945 | 3300*1900*2900 | 3760*2143*3135 | 4075*2712*3580 |
| Gross Weight(kg) | 4500 | 6500 | 7800 |
10.23 |

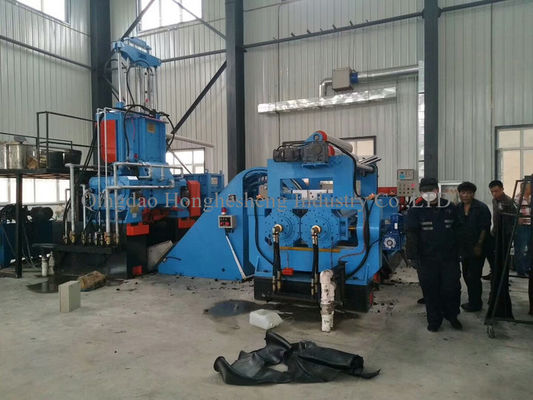

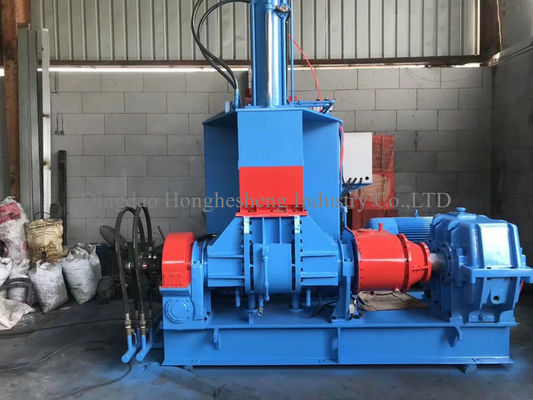

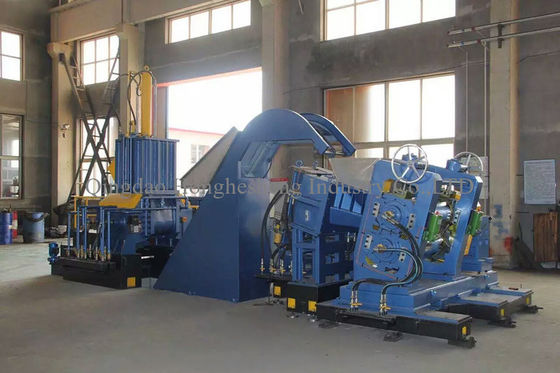

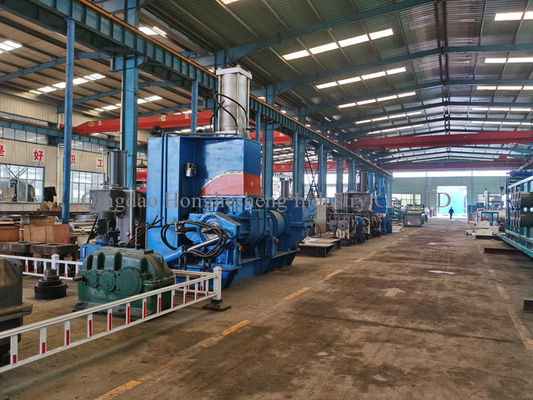

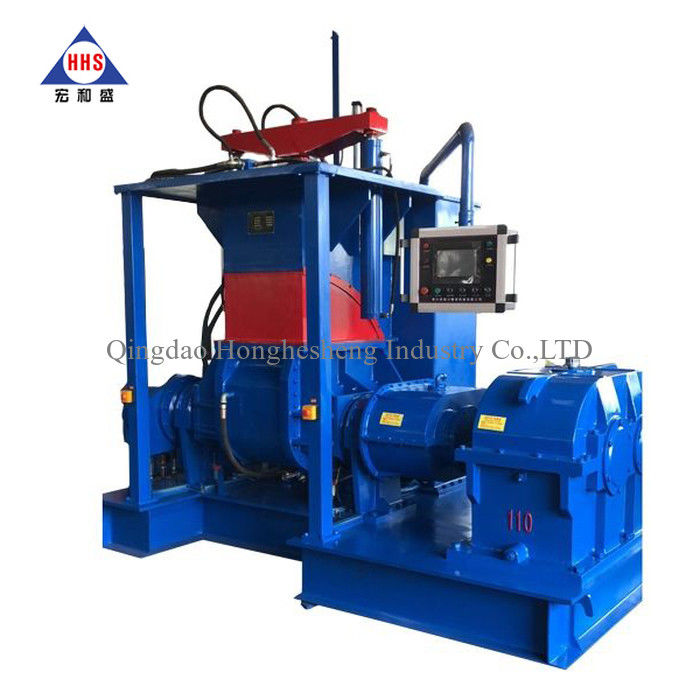

kneader Machine photos:
