Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 55L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 75KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 7800KG | Dimension(l*w*h): | 3200*1900*2880mm |
| High Light: | Tangential Rotor Dispersion Kneader Machine,Activated Carbon Dispersion Kneader Machine |
||

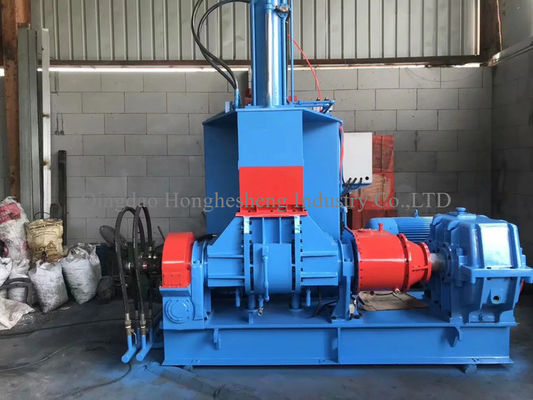

55L New advanced model carbon black banbury mixer / activated carbon internal mixer / rubber kneader
High safety factor,low energy cost, high degree of production sanitation
Brief description
1.Excellent sealing performance(copper sealing ring)
2.No leakage of powder /oil-proof
3.Automatic and manual interaction
4.Rotors:chroming carbide alloy ,15 silk
5.Type of rotors:standard two-wing tangential rotor ,four-wing synchronous rotor ,welded up alloy rotor and cylindrical intermeshing rotor
Main technical parameters:
| Model | X(S)N-20*32 | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 |
| Total Volume (L) | 45 | 75 | 125 | 175 | 250 |
| Working Volume (L) | 20 | 35 | 55 | 75 | 110 |
| Power(KW) | 30 | 55 | 75 | 110 | 185 |
| Tilting Power(KW) | 1.5 | 2.2 | 2.2 | 3.0 | 7.5 |
| Tilting Angle | 140° | 140° | 140° | 140° | 140° |
| Rotational Speed (r/min) | 40/32 | 40/32 | 40/32 | 40/32 | 40/32 |
| Size(mm) | 3100*1300*2450 | 3200*1900*2945 | 3300*1900*2900 | 3760*2143*3135 | 4075*2712*3580 |
Specifications:
1. The plastic material in airtight plastic pressure under the condition of refining or mixed refine, high production efficiency, low labor strength, stable quality. The two edges rotor shearing type, the production process the plastic materials that can be fully tear make the material shear well reach dispersion and evenness.
2. The edges of the rotor peak surfacing wear-resisting hard alloy, and mixing rubber room and material part of the contact all use hard chromium plating fine polishing processing. Mixed refine chamber adopts clip set of type structure, can be out water/steam/medium oil, have good cooling or heating effect, adapt to all kinds of refined rubber refining technological requirements of the plastic.
3. From the back door charging, mixing rubber room maximum flip 140 ° forward unloading, and according to the customer requirement of process can be arbitrary regulation Angle, facilitate next process of connection.
4. The switch on the "w" type, facilitate materials can be fully mixing rubber or refining.
5. The electric control system the programmable logic controller (PLC), has the alarm, unloading
operation, manual/automatic conversion, chain security protection function.
1) Fit for various of high filled composites.
2) Effective leak proof device.
3) “M-W” type pressurization for even dispersion.
4) Accurate control system(temperature system ;electric system).
5) Low maintenance by imported accessories.
The blade is designed in diamond shape, with hollow shaft and blades through which cooling water can run.
Features:M-W pressurization is applied to ensure even mixture of materials and optimized nature variation and achieve X curvilinear motion of the materials, providing excellent abrasion resistance and service life 1-2 times longer than traditionaxil machine.
1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.
2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.
3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.
4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.
