Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 35L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 55KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 6000KG | Dimension(l*w*h): | 3200*1900*2950mm |
| High Light: | 150L Rubber Kneader Machine,ISO 9001 Rubber Kneader Machine |
||
Describtion of rubber kneader
This rubber kneader is mainly used for natural rubber, synthetic rubber, reclaimed rubber and plastic smelting and mixing, rubber and plastic blending, but also for blending of variety of low viscosity materials.
This rubber kneader is widely used in rubber and related products industry, such as tire plant, cable plant, adhesive tape & hose factory, rubber shoes factory, sealed fittings factory, rubber and plastic products factory, also applies to blend in paints, dyes, ceramics, medicine, tapes, movie film line etc..
This machine is the best new-type mixing equipment in rubber, plastics industry, the performance indicators are at or near advanced level of similar products in domestic and abroad. It has the following features:
1.Advanced and reasonable design
2.Compact structure,
3.Occupies small space
4.Easy to install and operate
5.High efficiency
6.Easy removal of mixing chamber and replacing pigment
7.High effective cooling and heating
8.Mixing and dispersing evenly and the use of fully closed structure both safe and greatly improve the operating environment
9.New sealed structural design, good sealing effect and long life.

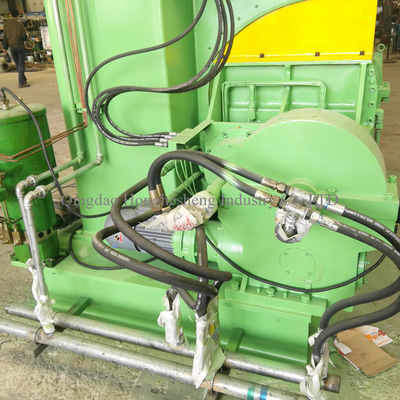

Maintain pictures
parameters
|
Model Item |
X(S)N-1.5 | X(S)N-3 | X(S)N-10x32 | X(S)N-20x32 | X(S)N-35x32 | X(S)N-55x32 | X(S)N-75x32 | X(S)N-110x32 | X(S)N-150x32 | X(S)N-200x32 | |
| Total volume( L ) | 4 | 8 | 25 | 45 | 75 | 125 | 180 | 250 | 325 | 440 | |
| Working volume(L) | 1.5 | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 | 200 | |
| Motor power ( KW ) | 4 | 7.5 | 18.5 | 37 | 55 | 75 | 110 | 185 | 220 | 280 | |
|
Tilting |
Worm gear |
Worm gear |
Worm gear |
Worm gear |
Worm gear |
Worm gear |
Worm gear/ Hydraulic
|
Worm gear/ Hydraulic
|
Worm gear/ Hydraulic
|
HHydraulic |
|
|
Sealing |
Spring type |
Spring type |
Spring type |
Spring type |
Spring type |
Spring type |
Spring type/ Hydraulic |
Spring type/ Hydraulic |
Spring type/ Hydraulic |
Spring type/ Hydraulic |
|
|
Rotor speed (F/R) (r/min ) |
8.8-88/ 6.9/69 |
25-100/ 18-72 |
32/25 | 32/26 | 32/26 | 32/26 | 32/26 | 30/24.5 | 30/24.5 | 30/24.5 | |
|
Dimension (mm) |
L | 1550 | 1600 | 2300 | 2500 | 3150 | 3370 | 3770 | 4060 | 4200 | 4520 |
| W | 750 | 950 | 1360 | 1750 | 2020 | 1950 | 2570 | 2750 | 3300 | 3400 | |
| H | 1825 | 1880 | 2120 | 2450 | 2960 | 3020 | 3160 | 3590 | 3900 | 4215 | |
| Total weight( kg ) | 750 | 1050 | 3000 | 4500 | 7200 | 8200 | 11600 | 15600 | 19500 | 22500 | |
We are professional manufacturer of machinery
About us--
Qingdao Honghesheng Machine Manufacture Co., LTD.
1. has specialized in machine manufacture almost 20 years;(since 1996)
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc;
6.our machine are welcome by the world,popular in lots of markets
For FCL goods, we usually pack machines with stretched film and then load them to the
container. to ensure safety, we will fix machine with steel .
For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
