Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support | Type: | Open Mixing Mill |
|---|---|---|---|
| Roller Hardness: | 50 | Bush: | Nylon Bush,bearing Bush,ball Bearing B |
| Voltage: | 220V/380V/450V | Power(w): | 5.5KW |
| Weight: | 5200KG | Dimension(l*w*h): | 1133X920X1394mm |
| Warranty: | 2 Year | Condition: | New |
| High Light: | Daylight 125mm Curing Press Machine,250mm Piston Stroke Curing Press Machine,2 Layers Rubber Vulcanizing Machine |
||

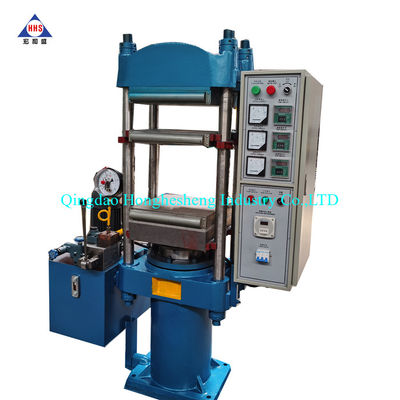

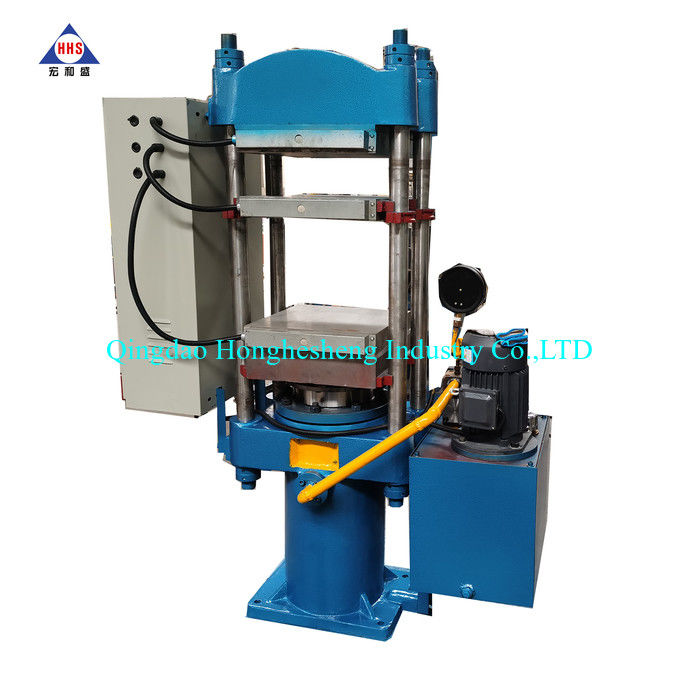

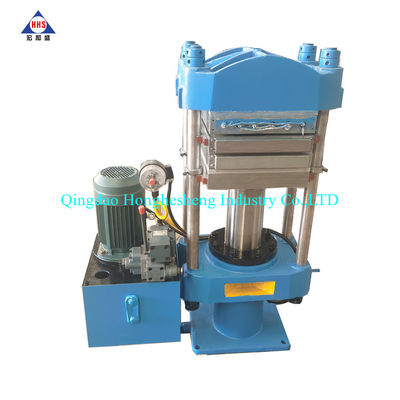

Column type platen vulcanizing press is used for vulcanizing various kinds of rubber and plastic mould products as well as non-mould products. And it can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.
1) Our plate vulcanizing press machine has 4-columns structure and frame structure, as a below pressing type(upwards), the heating plate opens by the self-weight of the hot plate, platform and plunger.
2) The plate size, piston stroke and total pressure can be adjusted according to customers, actual requirement, the machine can equip with manual-pull mold and automatic hydraulic-pull mold, which reduces labors, working strength and inconvenience.
3) This machine has three kinds of control method: manually, semi-auto and full auto.
4) Fast speed mould-closing, high production efficiency, low locking speed to protect mould.
5) Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance.
6) Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
7) The rubber vulcanizing press is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
| Model | XLB-D350X350 | XLB-D400X400 | XLB-D600X600 | XLB-D750X850 | XLB-D900X900 |
| Total Pressure | 0.25mn | 0.50mn | 1.00mn | 1.60mn | 2.50mn |
| Platen Size | 350x350mm | 400x400mm | 600x600mm | 750x850mm | 900x900mm |
| Daylight | 125mm | 125mm | 125mm | 125mm | 125mm |
| Working Layer | 2 | 2 | 2 | 2 | 2 |
| Piston Stroke | 250mm | 250mm | 250mm | 250mm | 250mm |
| Heating way | Electric | Electric | Electric | Electric | Electric |
| Platen Unit Area Pressure | 20kg/cm² | 31kg/cm² | 28kg/cm² | 25kg/cm² | 31kg/cm² |
