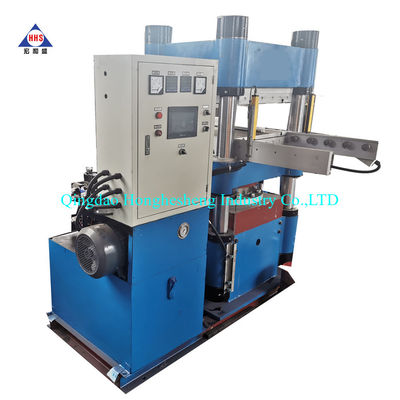

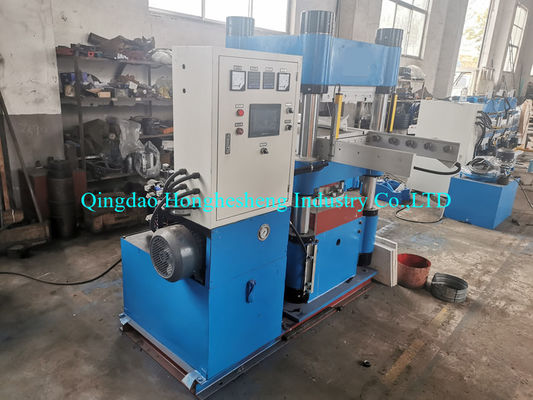

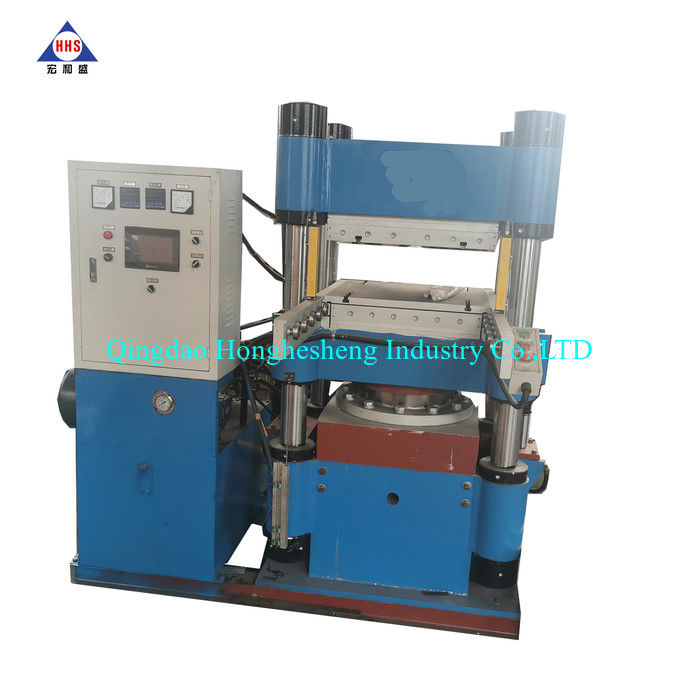

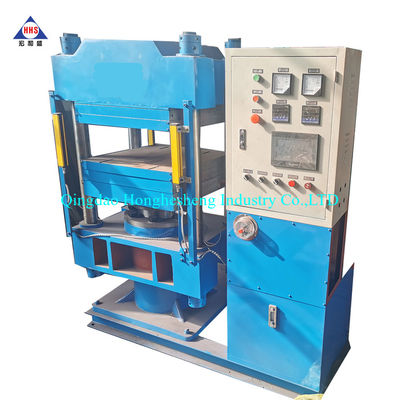

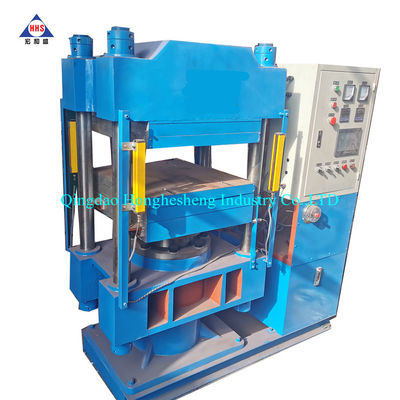

21Mpa 11Kn Hydraulic Press For Rubber Vulcanization

Large Image : 21Mpa 11Kn Hydraulic Press For Rubber Vulcanization

Product Details:

Place of Origin:	Qingdao Shangdong
Brand Name:	HHS
Certification:	CE
Model Number:	XLB200-800

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 4000
Packaging Details:	standard wood package or based on clients request
Delivery Time:	15-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	60 sets/Year

Contact Now

21Mpa 11Kn Hydraulic Press For Rubber Vulcanization

Description

Type:	Vulcanizer	Colour:	All Colour
Voltage:	Customized	Power(W):	5.5KW
Temperature:	Max 300 Degree	Working Layers:	1-4layers
Plates:	300-2100mm	Hot Plates Material:	Q-235 Material.
Heating:	Electricity , Steam Heating , Conduction Oil Heating .	Weight:	2000 Kg
High Light:	11Kn Hydraulic Press For Rubber , 21Mpa Hydraulic Press For Rubber , Hydraulic Press For Rubber Vulcanization

Whole Sale Price China Supplier Hydraulic Press For Rubber Vulcanization

1. Product Application

Rubber vulcanizing press is used for vulcanizing various kinds of rubber and plastic mould products as well as

non-mould products. And it can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.

2. Product Paramenters

Item	Unit	XLB-Y100	XLB-Y100B	XLB-Y100A	XLB-Y160	XLB-Y200	XLB-Y200
Mold-locking force	kn	1000	1000	1000	1600	2000	2000
Max. working pressure	Mpa	21	21	21	21	21	21
Clamp stroke	mm	300	300	300	300	250	250
Heat plate size	mm	420*420	450*450	500*500	520*540	520*540	600*600
Max. opening	mm	420	420	420	420	420	420
Motor power	Kw	4	4	4	5.5	5.5	5.5

Item	Unit	XLB-Y250	XLB-Y300	XLB-Y400A	XLB-Y400B	XLB-Y500	XLB-Y600
Mold-locking force	Kn	2500	3000	4000	4000	5000	6000
Max. working pressure	Mpa	21	21	21	21	21	21
Clamp stroke	mm	250	250	400	500	500	500
Heat plate size	mm	600600 650600	650*650	800*800	1000*1000	1000*1000	1200 *1200
Max. opening	mm	420	420	700	700	700	800
Motor power	Kn	7.5	7.5	11	11	15	15
