Product Details:
|
| High Light: | Interlock Air Shower Clean Room,380v Air Shower Clean Room,SS304 Industrial Air Shower |
||
|---|---|---|---|

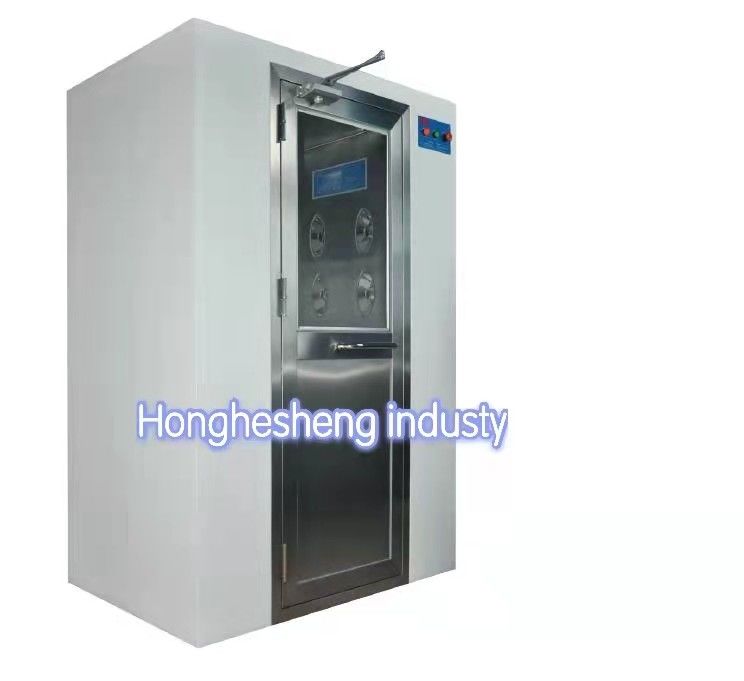

The introduction of air shower air lock chamber
The air shower air lock chamber could remove surface-deposited particles from personnel when they enter and exit a cleanroom or anyother controlled environment. The electromagnetic interlock prevents that possibility of cross contamination by alllowing only one door at a time to open.
Operating principle of the air shower air lock chamber
The air lock chamber is widely used for personnel access, prevent the unclean air flow entering into the clean area, in the work area set the blowing leaching purification device to eliminate the dust from people and the products, meantime, it has the airlock role to ensure clean room with clean air conditioning system to achieve the required cleanliness.
Material of air shower air lock chamber.
1.Outside and inside is 304 or 316.
2.Or outside is cold rolled steel, inside is stainless steel 304, door is stainless steel 304.
Certifications of air lock chamber.
The air shower air lock chamber has CE, ROHS, UL, ISO9001 & ISO14001.
Application of air shower air lock chamber.
The air lock chamber is widely used for electronic/ microelectronics/ precision electronic/ biological manufacturing industry/ medical industry/ food processing/ ITO mode/ liquid crystal and conductive photoelectric suggests that the industry/ PCB/ SMT manufacturing industry/ aerospacevoyage/ aumomobie manufacturing industry/ dust-free painting industry and other industry, etc.
Regular Specification of air shower air lock chamber
| Item | One person single blow air shower | One person double blow air shower | Two person double blow air shower | ||||||
| Model | KLC-AS-1260/1 | KLC-AS-1150/1 | KLC-AS-1300/1 | KLC-AS-1400/1 | KLC-AS-1590/1 | KLC-AS-1200/1 | KLC-AS-1400/2 | KLC-AS-1590/2 | |
| External size (WXLXHmm) | 1260x1000x2050 | 1150x1000x2180 | 1300x1000x2180 | 1400x1000x2180 | 1590x1000x2050 | 1200x1500x2180 | 1400x1500x2180 | 1590x1500x2050 | |
| Internal size (WXLXHmm) | 790x930x1910 | 790x930x1910 | 790x930x1910 | 790x930x1910 | 790x930x1910 | 790x1430x1910 | 790x1430x1910 | 790x1430x1910 | |
| Nozzles in stainless steel | 6 | 12 | 12 | 12 | 12 | 16 | 16 | 16 | |
| Nozzle wind speed (m/s) | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | |
| Noise (1m from the equipment) | <65 | <65 | <65 | <65 | <65 | <65 | <65 | <65 | |
| Fan | Power supply (V/50Hz) | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz | 380/50Hz |
| Power (W) | 750 | 600 | 600 | 600 | 750 | 750 | 750 | 750 | |
| Air flow (m³/h) | 1200 | 1500 | 1500 | 1500 | 1200 | 2500 | 2500 | 1200 | |
| HEPA filter | Size (WXHXDmm) | 630x630x69 | 630x630x69 | 630x630x69 | 630x630x69 | 630x630x69 | 630x915x69 | 630x915x69 | 630x915x69 |
| Set | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | |
| Pre-filter | Size (WXHXDmm) | 775x380x17 | 775x380x17 | 775x380x17 | 775x380x17 | 775x380x17 | 775x380x17 | 775x380x17 | 775x380x17 |
| Set | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | |
| Power supply (W) | 780 | 630 | 630 | 630 | 1530 | 780 | 780 | ||
