Product Details:
Place of Origin: CHINA
Brand Name: honghesheng
Certification: CE ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD:5000-20000 /SET
Packaging Details: wood package /20-40 container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month

-70C - +150C Programmable Thermal Temperature Humidity Chamber 50L 1000L

High Light:

Programmable Temperature Humidity Chamber


150C Temperature Humidity Chamber


1000L Temperature And Humidity Chamber

-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional

Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

-70C - +150C Programmable Thermal Temperature Humidity Chamber 50L 1000L 0


1.The constant temperature and humidity test box is mainly composed of control panel, distribution panel, insulation layer, air supply fan, heater, humidifier and refrigeration unit. The main specifications can be divided into 6 standard sizes and 10 specifications under different conditions.

2.The controller can be connected to the computer through LAN interface. Users can design programs on the computer screen, collect test data and records, call program execution, remote control machine switch and other functions.

3.The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor temperature and humidity distribution is uniform.

4.Complete safety protection device, if abnormal conditions occur, the controller screen will automatically display the fault status, cut off the power switch, and provide troubleshooting methods.


Technical parameter

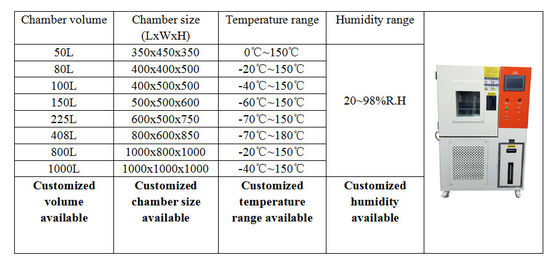

Model TMAX-50L TMAX-80L TMAX-225L TMAX-408L TMAX-800L TMAX-1000L
Inner chamber size (CM) 35*45*35 50*40*40 50*60*75 80*60*85 80*100*100 100*100*100
Power (- 40 ℃) 4.5(KW) 5.0(KW) 6.0(KW) 7.0(KW) 8.5(KW) 9.5(KW)







Temperature range






Customized temperature is available

Humidity range


Customized humidity is available

Fluctuation / uniformity ±1.5℃/±2℃
Humidity deviation ±3%R.H
Heating rate About 1.0~3.0℃/min
Cooling rate About 0.5~1.0℃/min

Control system









Controller "Temi" brand programming temperature instrument, HD real color LCD touch screen
Accuracy range

Setting accuracy: temperature 0.1 ℃, humidity 1% R.H,

Indication accuracy: temperature 0.1 ℃, humidity 1% R.H


and humidity sensor

Platinum resistor PT100Ω/MV
Heating system Fully independent system, Ni Cr alloy electric heating heater
Humidification system External isolation type, all stainless steel shallow surface evaporation humidifier
Dehumidification system Adopt the dew point temperature laminar contact dehumidification method of evaporator coil
Water supply system Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption
Refrigeration system French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode
Circulation system Motors with low noise and temperature resistance - multi blade centrifugal fans





Outer box material High quality carbon steel plates. Phosphorized electrostatic spray or SUS304 stainless steel
Inner box material Stainless steel high quality mirror plate
Thermal insulation material Polyurethane rigid foam / superfine glass fiber wool
Door frame insulation Double layer high and low temperature aging resistant silicone rubber door sealing strip
Standard configuration Multi layer heating defrosting with lighting glass window 1 set, test sample rack 2, test lead hole 1
Safeguard Leakage, short circuit, overtemperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection
Supply voltage AC220Vor 380V±10% 50±0.5Hz
Operating ambient temperature 5℃~+30℃ ≤85%R.H

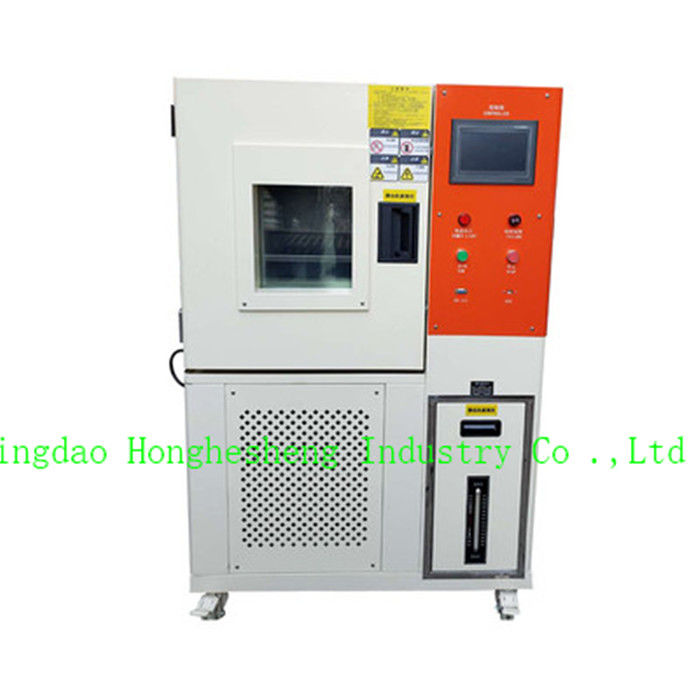

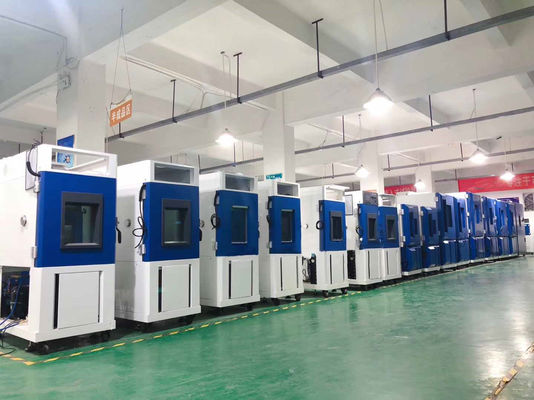

Product Images
