Product Details:
|
| High Light: | 80L Temperature Humidity Test Chamber,Touch Screen Temperature Humidity Test Chamber,SUS304 Temperature Humidity Chamber |
||
|---|---|---|---|
Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Features

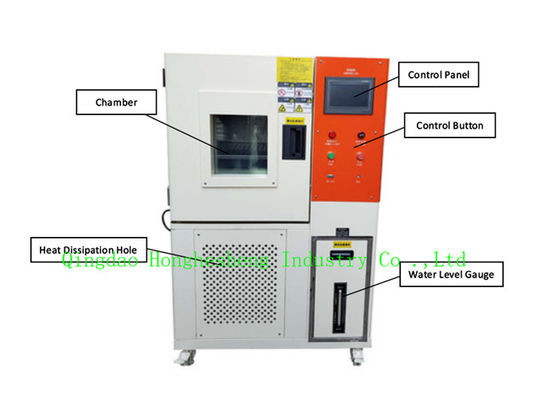

1.The constant temperature and humidity test box is mainly composed of control panel, distribution panel, insulation layer, air supply fan, heater, humidifier and refrigeration unit. The main specifications can be divided into 6 standard sizes and 10 specifications under different conditions.
2.The controller can be connected to the computer through LAN interface. Users can design programs on the computer screen, collect test data and records, call program execution, remote control machine switch and other functions.
3.The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor temperature and humidity distribution is uniform.
4.Complete safety protection device, if abnormal conditions occur, the controller screen will automatically display the fault status, cut off the power switch, and provide troubleshooting methods.

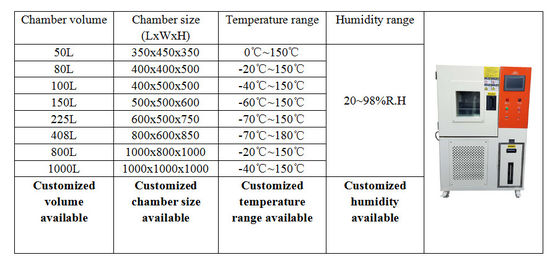

Technical parameter
| Model | TMAX-50L | TMAX-80L | TMAX-225L | TMAX-408L | TMAX-800L | TMAX-1000L | |
| Inner chamber size (CM) | 35*45*35 | 50*40*40 | 50*60*75 | 80*60*85 | 80*100*100 | 100*100*100 | |
| Power (- 40 ℃) | 4.5(KW) | 5.0(KW) | 6.0(KW) | 7.0(KW) | 8.5(KW) | 9.5(KW) | |
|
Performance
|
Temperature range |
A:-20℃~150℃ B:-40℃~150℃ C:-60℃~150℃ D:-70℃~150℃ E:-70℃~180℃ Customized temperature is available |
|||||
| Humidity range |
20~98%R.H Customized humidity is available |
||||||
| Fluctuation / uniformity | ±1.5℃/±2℃ | ||||||
| Humidity deviation | ±3%R.H | ||||||
| Heating rate | About 1.0~3.0℃/min | ||||||
| Cooling rate | About 0.5~1.0℃/min | ||||||
|
Control system
|
Controller | "Temi" brand programming temperature instrument, HD real color LCD touch screen | |||||
| Accuracy range |
Setting accuracy: temperature 0.1 ℃, humidity 1% R.H, Indication accuracy: temperature 0.1 ℃, humidity 1% R.H |
||||||
|
Temperature and humidity sensor |
Platinum resistor PT100Ω/MV | ||||||
| Heating system | Fully independent system, Ni Cr alloy electric heating heater | ||||||
| Humidification system | External isolation type, all stainless steel shallow surface evaporation humidifier | ||||||
| Dehumidification system | Adopt the dew point temperature laminar contact dehumidification method of evaporator coil | ||||||
| Water supply system | Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption | ||||||
| Refrigeration system | French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode | ||||||
| Circulation system | Motors with low noise and temperature resistance - multi blade centrifugal fans | ||||||
|
Materials
|
Outer box material | High quality carbon steel plates. Phosphorized electrostatic spray or SUS304 stainless steel | |||||
| Inner box material | Stainless steel high quality mirror plate | ||||||
| Thermal insulation material | Polyurethane rigid foam / superfine glass fiber wool | ||||||
| Door frame insulation | Double layer high and low temperature aging resistant silicone rubber door sealing strip | ||||||
| Standard configuration | Multi layer heating defrosting with lighting glass window 1 set, test sample rack 2, test lead hole 1 | ||||||
| Safeguard | Leakage, short circuit, overtemperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection | ||||||
| Supply voltage | AC220Vor 380V±10% 50±0.5Hz | ||||||
| Operating ambient temperature | 5℃~+30℃ ≤85%R.H | ||||||

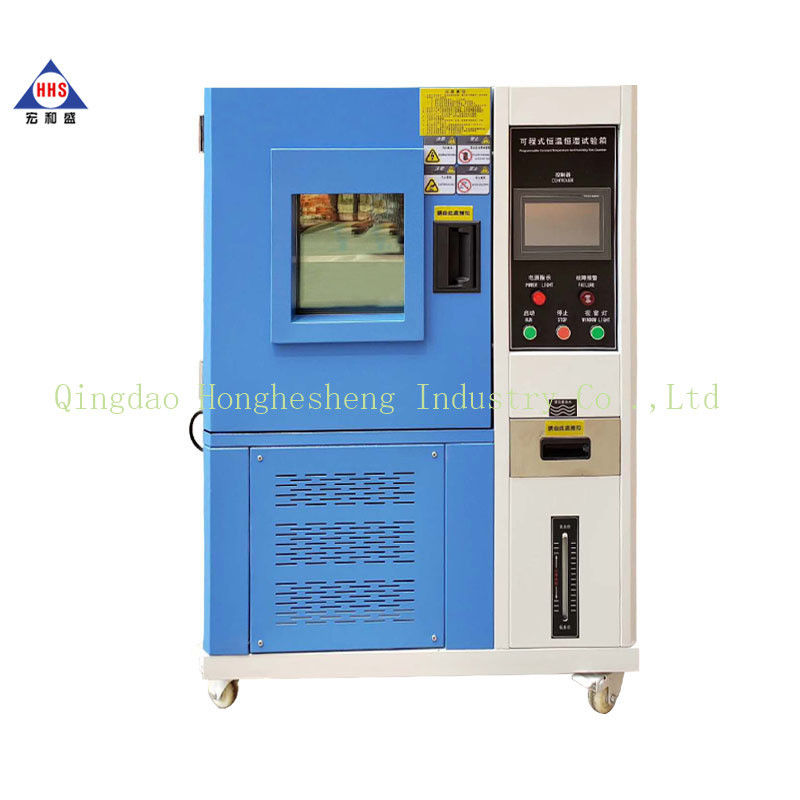

Product Images
