Product Details:
|
| Type: | Vulcanizer | Colour: | All Colour |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | Max 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| High Light: | Solid Rubber Injection Moulding Machine,5.5KW Rubber Injection Moulding Machine,Hexagonal Dumbbell Injection Moulding Machine |
||

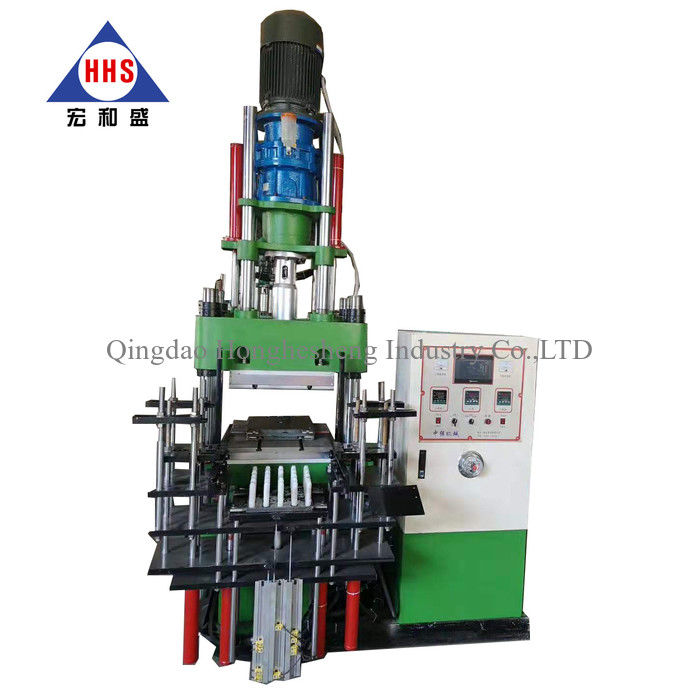

Crossfit rubber hex dumbbell making machine, Rubber dumbbell vulcanizer molding press machine
Rubber dumbbell making machine /rubber Vulcanizing press / rubber dumbbell molding press machine , Especially it is suitable for the rubber model products of complex shapes, exhaust difficultly, difficult to molding and also for rubber products which are easy to produce bubble. Among them, Frequency conversion microcomputer control vacuum vulcanizing press and vacuum vulcanizing press for butyl rubber medical stoppers .
Technical parameters of crossfit rubber hex dumbbell making machine, Rubber dumbbell vulcanizer molding press machine
| Model | 100T | 200T | 250T | 300T | 350T | 400T | 500T | |
| Clamping force | KN | 1000 | 2000 | 2500 | 3000 | 3500 | 4000 | 5000 |
| Stroke | mm | 250 | 250 | 300 | 300 | 300 | 300 | 300 |
| Upper heating plate size | mm | 420x460 | 550x560 | 600x650 | 650x650 | 700x750 | 800x800 | 900x900 |
| Diameter of cylinder | mm | 250 | 355 | 400 | 450 | 475 | 500 | 560 |
| Horse power | HP | 7.5x2 | 10x2 | 10x2 | 10x2 | 15x2 | 15x2 | 15x2 |
| Heating power | KW | 16.5 | 25 | 31 | 34 | 44 | 57 | 64 |
| Total power | KW | 30 | 42 | 49 | 52 | 64 | 79 | 86 |
| Mold open |
2RT/3RT/4RT |
|||||||
