Product Details:
|
| High Light: | Vertical Rubber Bale Cutter,5.5KW Rubber Bale Cutter,Single Cylinder Guillotine Cutting Machine |
||
|---|---|---|---|
Usage:
This rubber bale cutter is mainly used to cut the natural rubber,synthetic rubber and other plastic materials,especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.
Features of rubber bale cutter:

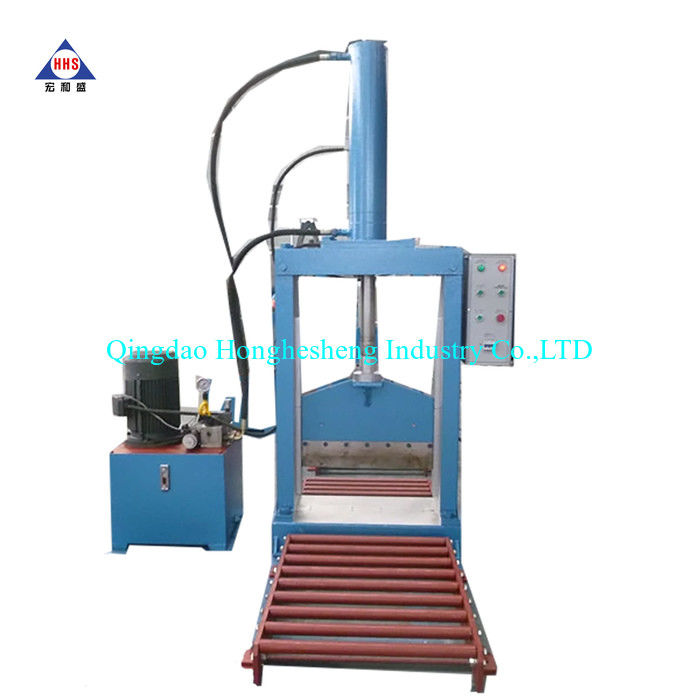

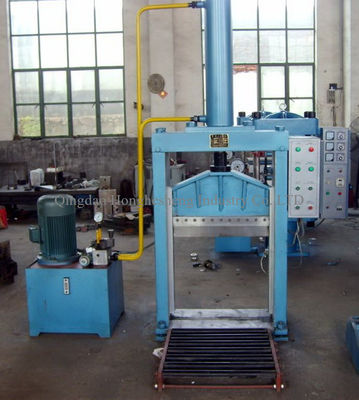

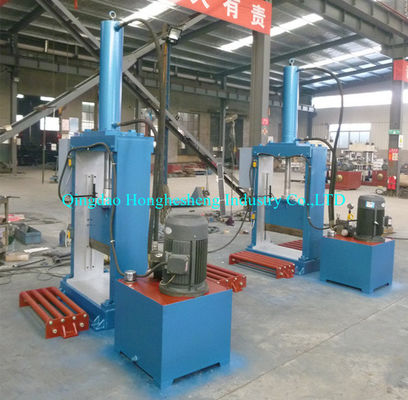

1.This rubber bale cutter mainly consists of cutting knife,frame,cylinder,base,auxiliary table,sydraulic system and electric system.
2.The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.
3.When cutting the raw rubber,put the raw rubber under the cutting knife,the press the start button,the knife can cut the rubber.
5.Two limited switches are installed on the frame to control the reversal valve to change the movement direction of the knife,at the same time,it protects the cover of the cylinder.
Technical Information:
| Type | XQL-80 | XQL-160 |
| Width (mm) | 660 | 1000 |
| Stroke (mm) | 680 | 680 |
| Diameter of the piston (mm) | 150 | 150 |
| Time Taken by the Stroke (second) | 16~25 | 10~16 |
| Power (KW) | 5.5 | 5.5 |
| Overall Dimension (LxWxH) | 1900×720×2580 | 2000×500×3000 |
| Weight (kg) | 1500 | 2000 |
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
6 How to send us your enquiry? Kindly tell me answer
-1 what is your blade width ? 650 mm?1000mm?
-2 distance? based on your meterial height
-3 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently
