Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | Xkp 400 Waste Tire Recycling Plant,200kg/H Waste Tire Recycling Plant,90kw Tyre Recycling Equipment |
||

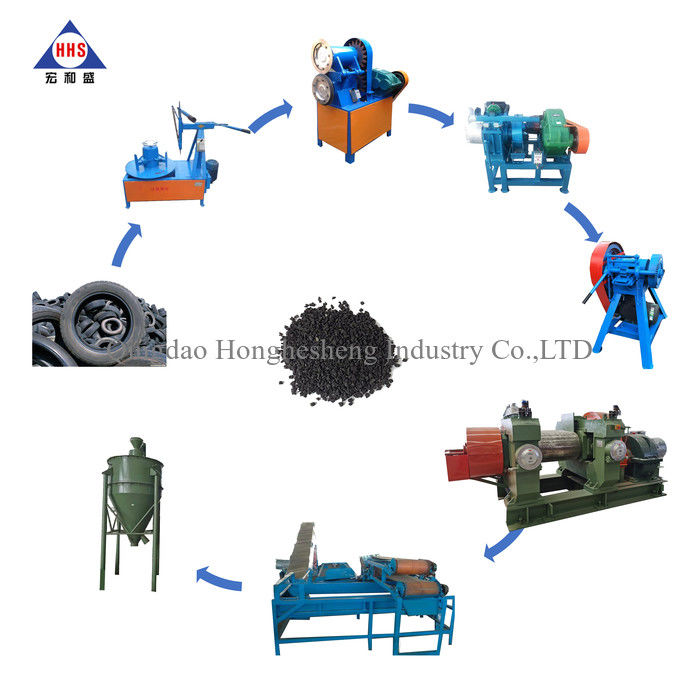

First Introduction
Rubber powder production of waste tire recycling line is used to crush the waste tire into rubber powder. Environmental protection and energy saving, Market Prospect Broadness .
| Waste tire pretreating: Get 25-50mm blocks. | |||

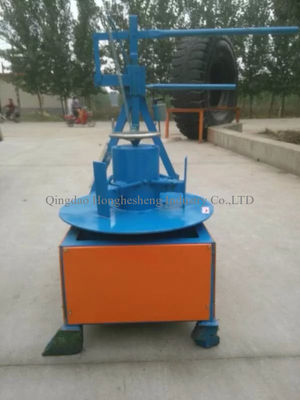

| 1 | Ring cutter | QQJ-20 | 1 |
| 2 | Loop machine | YQJ-285 | 1 |
| 3 | strip cutter | QTJ-380 | 1 |
| 4 | block cutter | QKJ-45 | 1 |
| Rubber powder treatment:5-30 meshes rubber powder. Separate steel wire and fiber from rubber powder. | |||

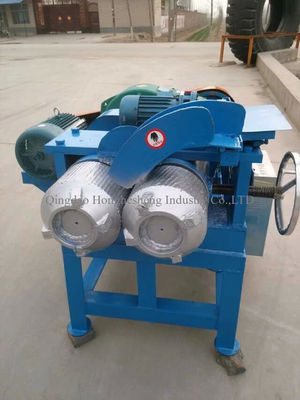

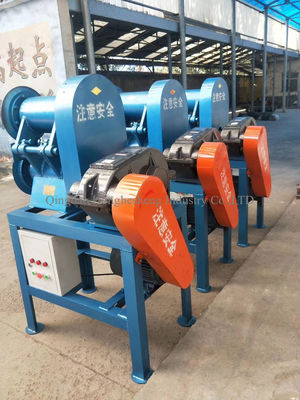

| 5 | Two roll rubber crusher | XKP-400 | 1 |
| XKP-450 | |||
| XKP-560 | |||
| 6 | Main conveyor | BCL-8 | 1 |
| 7 | Small conveyor | BCL-3 | 1 |
| 8 | Double-deck magnetic separator | BMS-22 | 1 |
| 9 | Single-deck Magnetic | SMS-1 | 1 |
| 10 | Main vibrating sieve | BSS-8 | 1 |
| 11 | Small vibrating sieve | SSS-3 | 1 |
| 12 | Fiber Processing Equipment | FS-1100 | 1 |
Second Production capacity and energy consumption ,you can choose suitable line
| NO | MODEL | Total Power(KW/h) | Production Capacity (kg/h) |
| 1 | XKP-400 line | About 103.2kw | 200-300kg for around 10-30 mesh rubber powder. |
| XKP-450 line | About 113.2kw | 400-500kg for around 10-30 mesh rubber powder | |
| XKP-560 line | About 132.2KW | 600-1000kg for around 10-30 mesh rubber powder. | |
| Floor space:About 20*8 m2, Workers needed:3 operator and 1 maintainer | |||
