Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | 100T Rubber Vacuum Press Machine,CE Silicone Spoon Vacuum Press Machine |
||
| Application
Suitable for multilateral, polygonal and other complicated shape products, particularly for cooking utensil, sporting goods , medical supplies, auto accessories, high and low voltage electricity, electronic accessory and other high precision applications. |
 |
Technical parameters:
| Type | 100T | 150T | 200T | 250T | 300T | 300T XL | 400T | 500T |
| Clamping force(Ton) | 100 | 150 | 200 | 250 | 300 | 300 | 400 | 500 |
| Stroke(mm) | 250 | 250 | 280 | 300 | 300 | 300 | 300 | 300 |
| Heating plate size(mm) | 400*400 448*460 |
420*420 460*460 |
503*508 545*560 |
600*600 600*650 |
600*600 650*650 |
700*700 700*700 |
700*700 800*800 |
800*800 850*850 |
| Diameter of cylinder(mm) | ∅250 | ∅310 | ∅355 | ∅400 | ∅450 | ∅450 | ∅500 | ∅560 |
| Horsepower(HP) | 7.5*1 | 7.5*2 | 10*2 | 10*2 | 10*2 | 10*2 | 15*2 | 15*2 |
| Type of mold opening | 2RT/3RT/4RT UP-DOWN IN-OUT 2RT/3RT/4RT | |||||||
| Double shaft thermal electricity(kw) | 14 | 22.5 | 27 | 34.5 | 36 | 45.5 | 46.5 | 48 |
| Total power(kw) | 19.5 | 33.5 | 42 | 49.5 | 51 | 60.5 | 68.5 | 70 |
| Gross weight(kg) | 6000 | 7500 | 8500 | 11000 | 13000 | 15000 | 19500 | 24000 |
| Machine size(cm) | 270*230*227 | 300*230*235 | 320*260*250 | 360*295*265 | 365*295*270 | 380*300*290 | 385*315*300 | 410*320*310 |

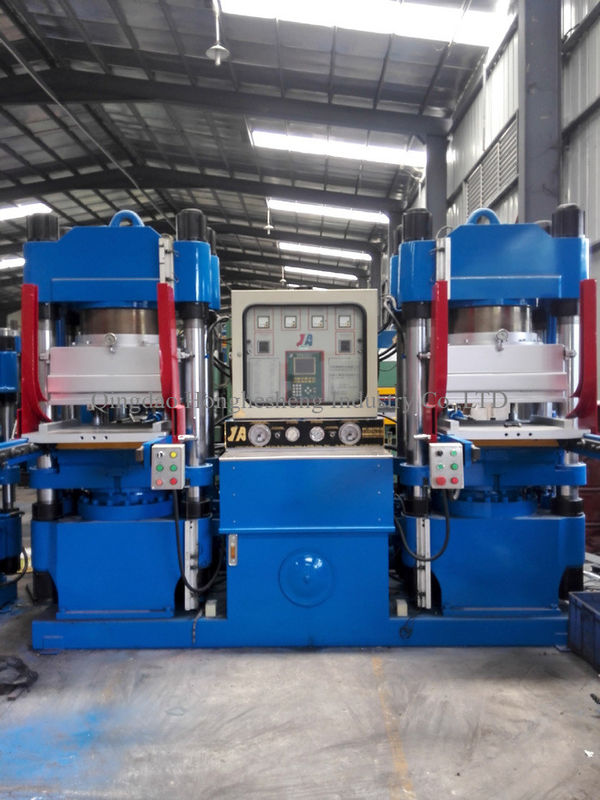

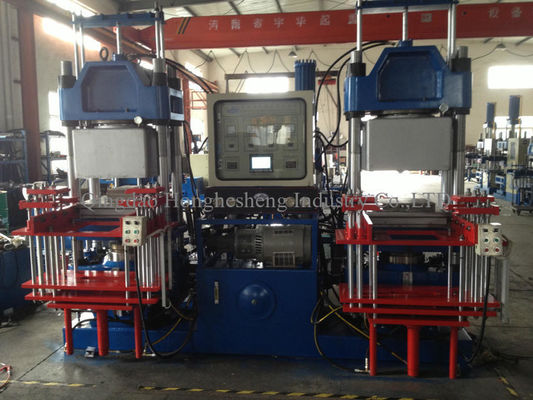

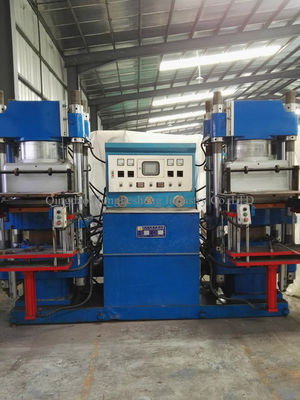

◊Machine Pictures:
