Product Details:
|
| Voltage: | 220V/380/450V | Power(w): | 1.5KW |
|---|---|---|---|
| Color: | Orange,Blue Or Green,customized | Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet |
| Warranty: | 1 Year | Lift Speed: | 9.5m/min |
| Capacity: | 130KG/batch | Condition: | New |
| Weight: | 600kg | Dimension(l*w*h): | 3780*875*2260mm |
| High Light: | Rubber Vertical Bucket Elevator,1.5KW Z Type Vertical Bucket Elevator,Vertical Bucket Conveyor For 110L Kneader |
||
Use for:
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Structure:
This machine consists of Base,Rack,Gland,Rollers,Bearing,Transmission device,Lubrication device,Decelerator,Adjustment device of the roller temperature,Emergency shutdown device and brake rigging and etc.
1.The roller is made of chilled cast iron. It is divided into hollowed roll and drilled roll. The inner of hollowed roll is machined. The hollowed roll surface can be smooth or grooved. The grooved roll has full grooved surface, partial grooved surface and so on.
2.The roll is supported by roller bearing so it has low noise and long service life.
3.The roll bearing adopts grease lubricating and oil lubricating.
4.The pressure transducer system is available for directly displaying the working pressure and control the feed. When over pressure, it will automatically stops and save or print the pressure value.
5.The product is complied with nation-established safety standard (this standard is identical with Europe standard.)
Specification and Performance
| 1, Apply to type of Kneader | 35L/55L/75L/110L |
| 2, Lifting Speed of Hopper (m/min) | 9.5 |
| 3, Lifting Weight(kg) | 130 |
| 4, Speed of Mainshaft(r/min) | 25.9 |
| 5, Model of Chain | Chain 16A-1 |
| 6, Driving Motor Power(KW) | 1.5 |
| 7, Type of Motor | YEJ90L-4 |

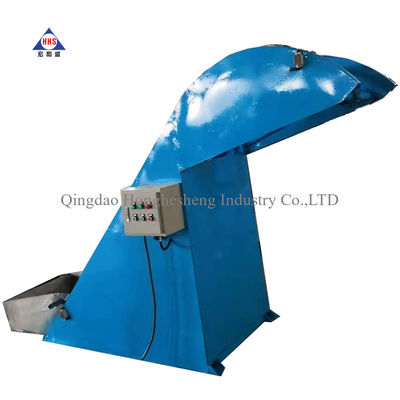

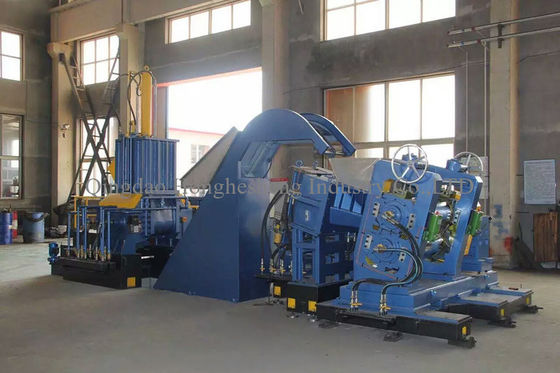

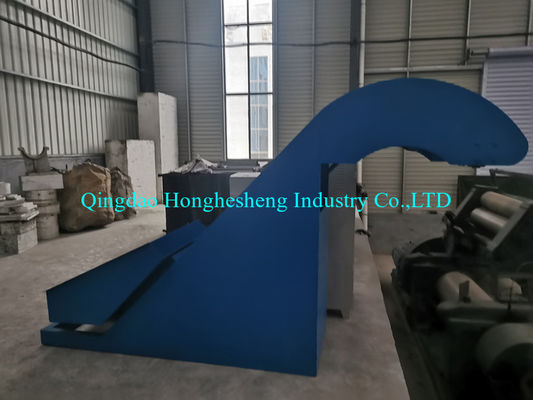

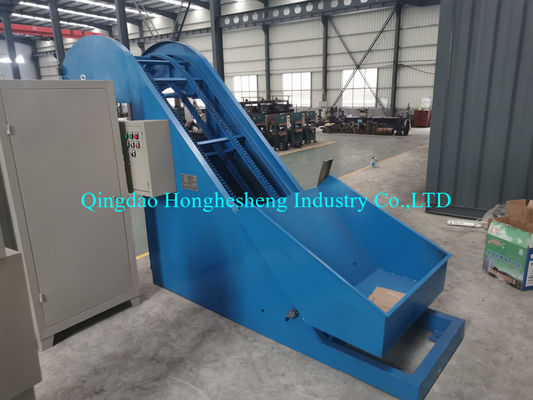

6. Photos:
