Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 35L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 55KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 6000KG | Dimension(l*w*h): | 3200*1900*2950mm |
| High Light: | Car Floor Mat Rubber Kneader Machine,OEM Rubber Kneader Machine |
||
This machine is to mix and plasticize the plastics ( such as TPR, EVA, color master batch, rubber etc..) in the airtight, pressure, heating conditions (temperature and pressure are all controllable).It is a small machine with the virtues of small volume, low consumption, high precision controlling of temperature, pressure controllable and easy handling of loading and discharging materials, etc., which is suitable for sampling and improving formulas in plastics. It is also feasible for small production, which can avoid wasting resources by using big power machineries for sampling or for small production. The machine is suitable for testing and production in all professional granule factories.
parameters
Main technical parameters:
| Model | X(S)N-20*32 | X(S)N-35*30 | X(S)N-55*30 | X(S)N-75*30 | X(S)N-110*30 |
| Total Volume (L) | 45 | 75 | 125 | 175 | 250 |
| Working Volume (L) | 20 | 35 | 55 | 75 | 110 |
| Power(KW) | 30 | 55 | 75 | 110 | 185 |
| Tilting Power(KW) | 1.5 | 2.2 | 2.2 | 3.0 | 7.5 |
| Tilting Angle | 140° | 140° | 140° | 140° | 140° |
| Rotational Speed (r/min) | 40/32 | 40/32 | 40/32 | 40/32 | 40/32 |
| Size(mm) | 3100*1300*2450 | 3200*1900*2945 | 3300*1900*2900 | 3760*2143*3135 |
4075*2712*3580 |

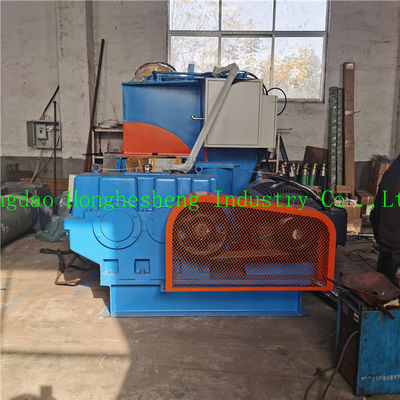

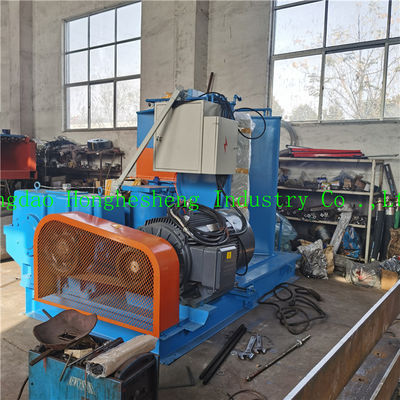

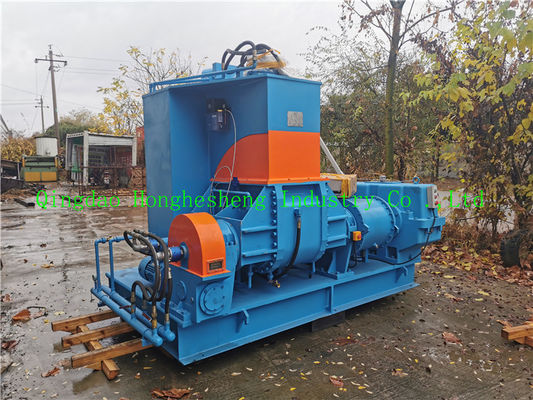

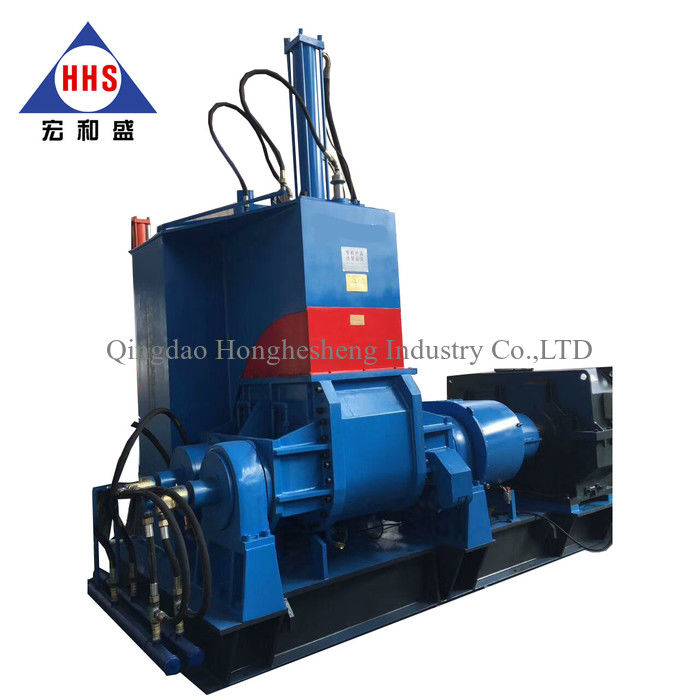

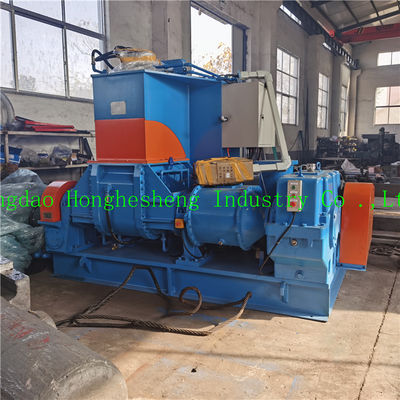

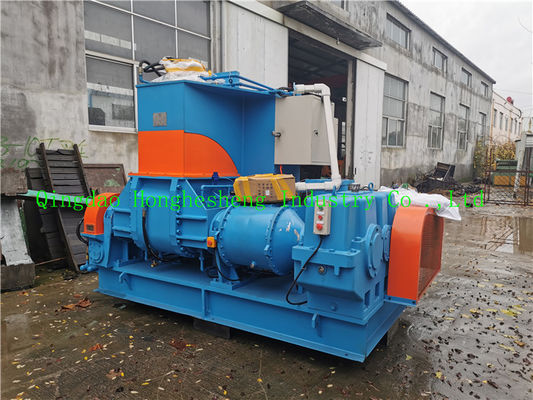

detailed pictures
