Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | Single Hook Tire Recycling Machine,90kw Hydraulic Tire Recycling Machine |
||

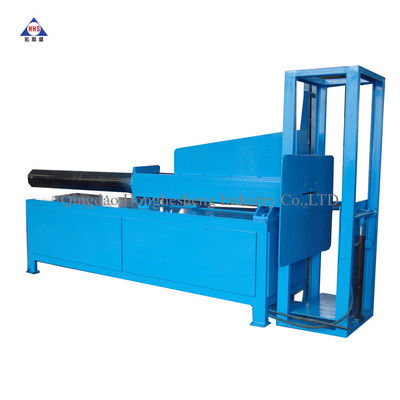

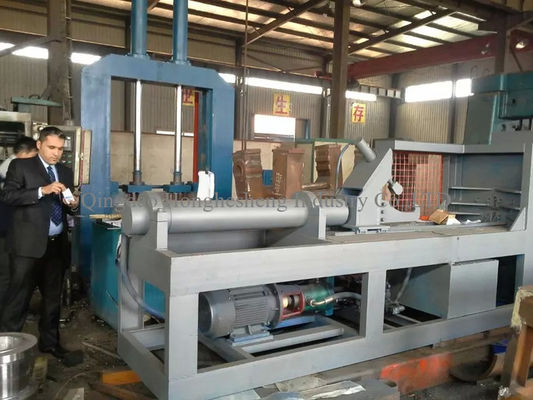

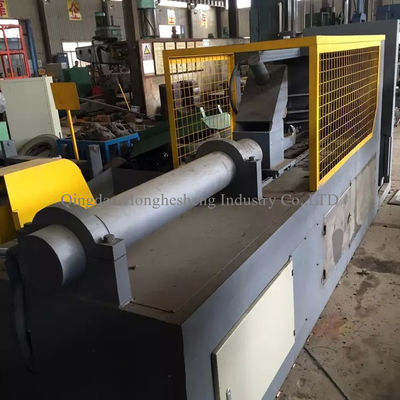

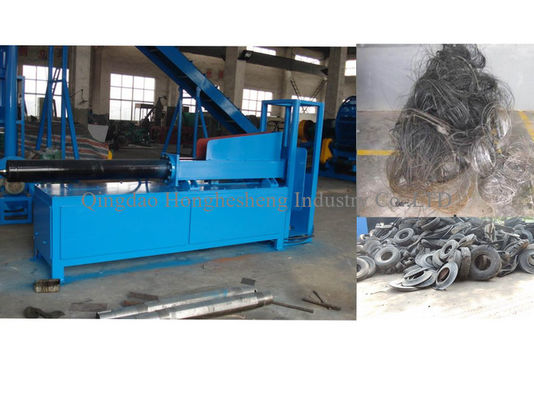

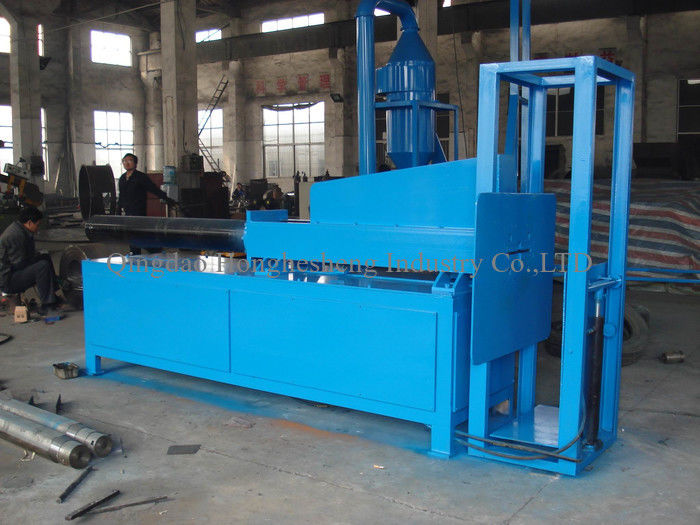

TD-1200Hydraulic Tire De-Beader Used Tire Wire Remover Wire Drawing Machine/Single Hook Drawing Machine
Application:
Draw out the steel loops from the tire bead.
Structural Features:
Tire wire puller machine consists of motor, hydraulic system, drawing hook, lift platform, Magnetic valve and main frame, etc. Hard alloy is welded on the cutting blade to make it rigid and wearable.
The machine is equipped with safety shelves to effectively prevent unsafe issues from occurring in the process of tire bead peeling off. The base of the machine is a complete cast framework, which is
Main Parameters
| TD-1200 Tyre draw machine for steel wire from old tires | |
| Name | Technical parameter |
| Feed size of tire(mm) | ≤φ1300 |
| Capacity(tires/h) | 30-40 |
| Power(KW) | 11 |
| Overall dimensions(m) | 4.7*0.9*1.7 |
| Equipment weight (T) | 1.8 |
