Product Details:
|
Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
---|---|---|---|
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
High Light: | Fully Automatic Rubber Crusher,Tyre Recycling Rubber Crusher |
1. product description
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber.

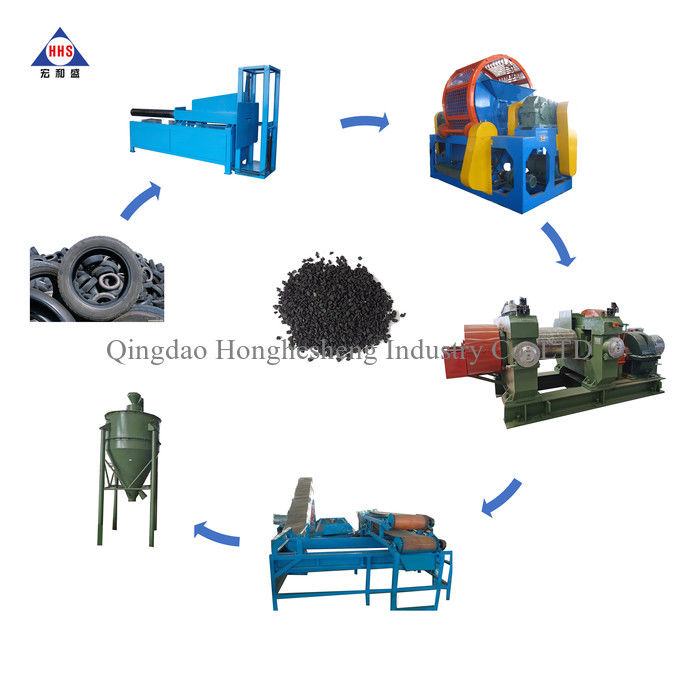

2.Process flow
tire ring cutter → steel wire extractor→ tire shredder→ rubber coarse crusher→ magnetic separator→ vibrating screen1→ fine rubber crusher→ vibrating screen2 → cyclone classifier→ storage bin→ rubber grinder →vibrating screen3→package.
the whole line has the following features:
1), iron/steel removing ratio>99.5%, fiber removing ratio>98%
2), compact structure ensure running safety, easy maintenance;
3), low energy consumption;
4), adopt automatic control system for whole line, reduce labor cost;
5), no sewage and waste gas discharge, environment protection.
6), available capacity range of our tire recycling lines at present: 400~3000kg/h
7), available finial rubber powder size: 30~120mesh.
8), adopts SIEMENS and Chinese famous brand electrical elements.
3.Processing method
Physic mechanical crushing method at normal temperature of waste tyre:nochemical raw material is required,no waste gas,washte water and soot are discharged, and the cooling water of the equipment is reused,no emission,equipment noise is within the range specified by the country(GB20055-2006),fineness of rubber powder produced by it is adjustable(10 meshes to 30 meshes),take waste tyre as example,the process is as follows:breaking down,crushing,filtering,magnetic separating,grin-ding,then the finished products are produced.
4.Main Parameters
Model | ZPS-900 | ZPS-1200 |
Feeding tire size | ≤ 900mm | ≤ 1200mm |
discharge size | 50*50mm | 50*50mm |
Waste rubber processing | 1-1.5T/h | 2-3.8T/h |
Motor power | 22*2 kw | 55*2 kw |
