Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | Rubber Silicone Hydraulic Vulcanizing Machine,25T Hydraulic Vulcanizing Machine |
||
Instruction:

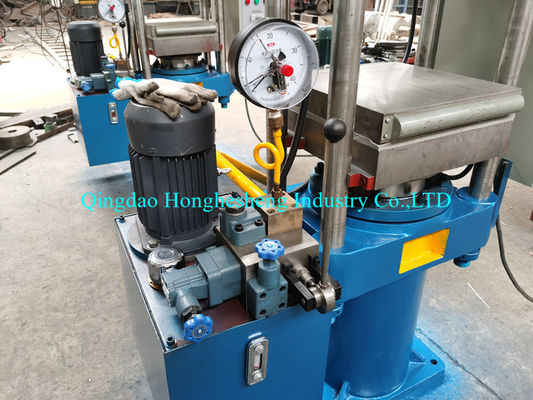

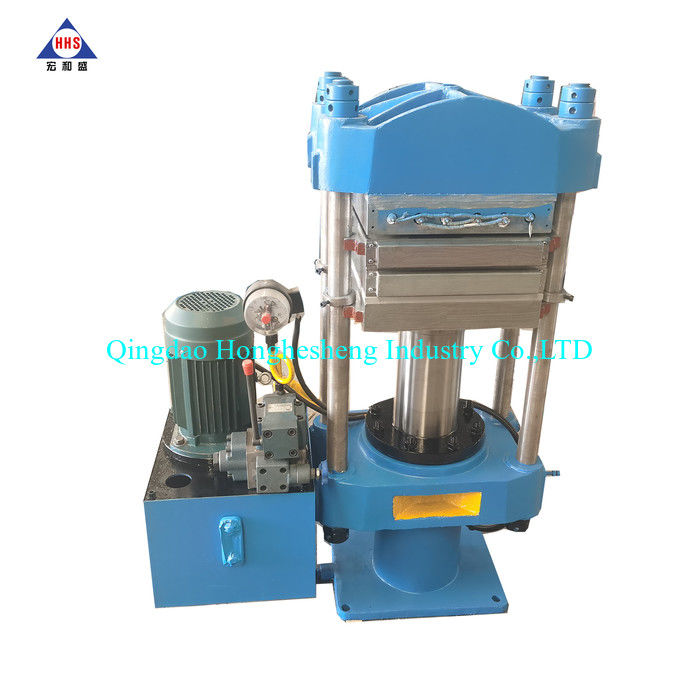

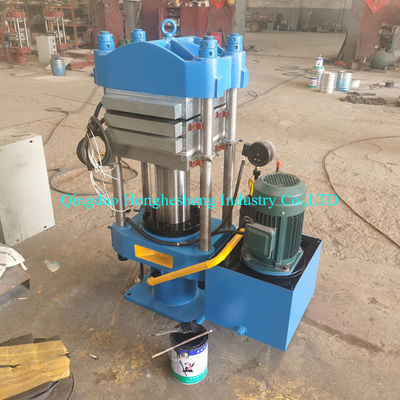

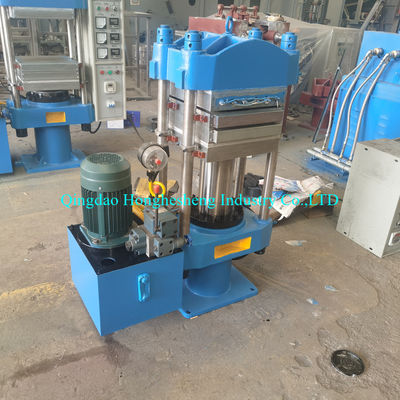

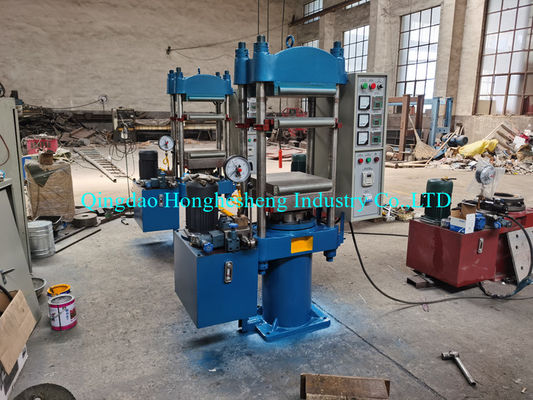

Factory Sales Lab Rubber Compression Molding Machine is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.
Parameters:
| Capacity | 10T,20T,30T,50T |
| Temp. Range | Room temp. ~300℃ |
| Temp. Controller | LED Indicator,press key set input |
| Timer | LED display,time range 0.1S~99min~9.9hr |
| Heating type | Electrical Heating |
| Hot pressure plate | 300×300mm / 350x350mm / 500x500mm optional |
| Cold pressure plate | 300×300mm / 350x350mm / 500x500mm optional |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature scope | Room temp. ~+5℃ |
| Cooling type | Water cooling / Air cooling (optional) |
| Oil pressure system |
The proportion hydraulic pressure current capacity loop circuit control system,GPY oil pump driver high performance electroencephalographic |
|
matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can preelection one, twice pressure and time. |
|
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0~350kg/sq.cm |
| power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power supply | 3 phase,AC 380V,20A (or customize) |
| Weight | About 500kg |
