Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 3kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/220V/450V |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | Waste Tyre Strip Block Cutting Machine,3kw Tyre Block Cutting Machine |
||

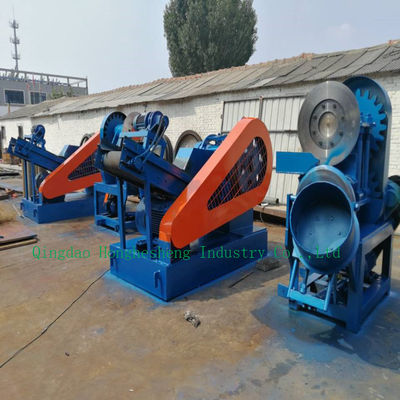

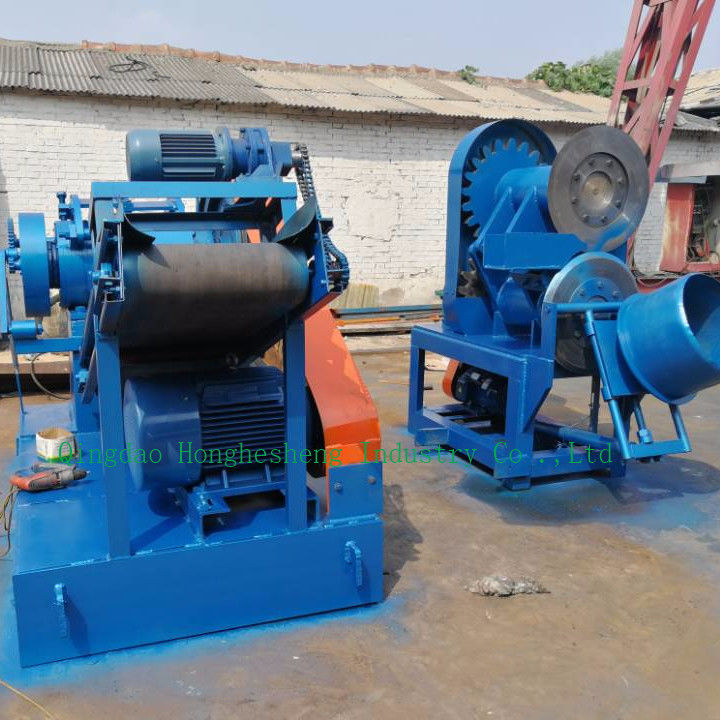

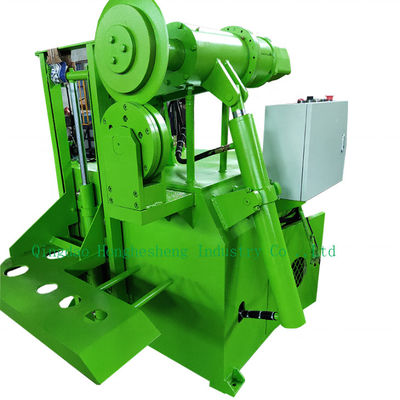

Automatic Waste Tyre Strip Block Cutting Machine For Tyres Chip
First Introduction
Application:
To cut tire from tire cutter into 50*50mm pieces.
Main technical spc.:
| 1.Type | QK-600 |
| 2.Rotation speed of blade disk | 450r/min |
|
3. Moving blade number Fixed blade number |
2pcs 1pc |
| 4.Motor power | 39KW |
| 5.Production capacity | 20-30pcs/h |
| 6. Overall size | 2100*1800*2400mm |
| 7.Weight | around 4800kgs |
Features:
1.Turn on the power, first start the main motor, wait for the motor to run normally, prepare to feed.
2.The radius of the tire cut through the tire dismantling machine is placed on the rotating pallet by an operator,the tray is controlled by the worker and the button controls the hydraulic cylinder lift,The cutter will feed automatically and cut to 35mm block. cyclic cutting operation until the ring,after cutting to the mouth ring, the button is returned to the hydraulic cylinder to take down the ring and continue to be placed in the radius tire cut by the tire dismantling machine.
Attention:
1. Before starting the machine, check if the tool, gear, and bolt are loose and wear out. after confirming there is no problem, close the cover.
2. The width of the block is kept 50mm-90mm.
3. Regularly add lubricant and change.
4.Note that the tool should be repaired in time if it is damaged after use for a period of time to avoid danger.
