Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | 100T Hot Pressing Machine,Q235 Plate Vulcanizing Press,5.5KW Vacuum Hot Pressing Machine |
||
100T 200T 300T Automatic vacuum hot pressing machine
p'roduct Description
This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet
Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
can be used as hydraulic press machine
2 Technical Parameters
if you make nonstandard machine, kindly confirm me below ,so that we can make precise quotation.
-1 what is your rubber plate size ? 500*500mm?1000*1000mm?
-2 pressure? 25T ,50T,80T.100T?
-3 How many layers? 2 plates,1 layer?3 plates ,2 layers?.........
-4 distance between hot plates? 125mm? or other?
-5 what is the plunger stroke? 250mm? 500mm?
-6 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently.
3 why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity
4 detailed pictures,note:machine can be different colour
note : can choose push and pull mould and touch screen based on your needs
Technical parameters:
| Type | 100T | 150T | 200T | 250T | 300T | 300T XL | 400T | 500T |
| Clamping force(Ton) | 100 | 150 | 200 | 250 | 300 | 300 | 400 | 500 |
| Stroke(mm) | 250 | 250 | 280 | 300 | 300 | 300 | 300 | 300 |
| Heating plate size(mm) | 400*400 448*460 |
420*420 460*460 |
503*508 545*560 |
600*600 600*650 |
600*600 650*650 |
700*700 700*700 |
700*700 800*800 |
800*800 850*850 |
| Diameter of cylinder(mm) | ∅250 | ∅310 | ∅355 | ∅400 | ∅450 | ∅450 | ∅500 | ∅560 |
| Horsepower(HP) | 7.5*1 | 7.5*2 | 10*2 | 10*2 | 10*2 | 10*2 | 15*2 | 15*2 |
| Type of mold opening | 2RT/3RT/4RT UP-DOWN IN-OUT 2RT/3RT/4RT | |||||||
| Double shaft thermal electricity(kw) | 14 | 22.5 | 27 | 34.5 | 36 | 45.5 | 46.5 | 48 |
| Total power(kw) | 19.5 | 33.5 | 42 | 49.5 | 51 | 60.5 | 68.5 | 70 |
| Gross weight(kg) | 6000 | 7500 | 8500 | 11000 | 13000 | 15000 | 19500 | 24000 |
| Machine size(cm) | 270*230*227 | 300*230*235 | 320*260*250 | 360*295*265 | 365*295*270 | 380*300*290 | 385*315*300 | 410*320*310 |

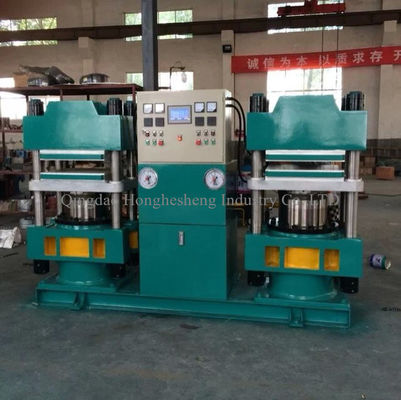

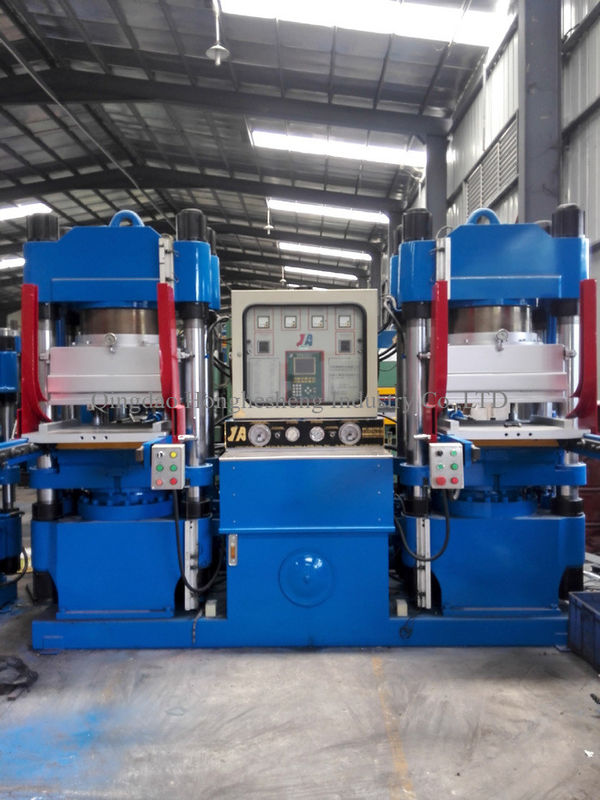

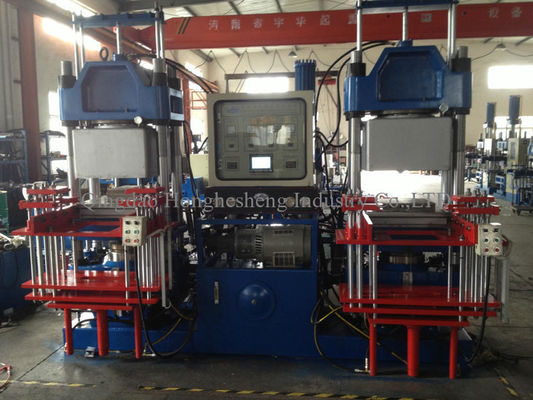

◊Machine Pictures:
