Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | 6 Column Type Plate Vulcanizing Press,600T Plate Vulcanizing Press,Steam Heating Belt Vulcanizing Press |
||
600T six column type vulcanizing press machine
1. Introduction
1.1 This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet
1.2 Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
can be used as hydraulic press machine
|
Parameters/version
|
XLB350*350*2 |
XLB400*400*2 |
XLB500*500*2 |
XLB600*600*2/4 |
XLB750*850*2 |
XLB1000*1000*2 |
| Mould closing force | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.5 |
| Hot plate spacing | 125 | 125 | 125 | 125 | 125 | 200 |
| Hot plate layer | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Plunger stroke | 250 | 250 | 250 | 250/500 | 250 | 400 |
| Heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/Stream | Electricity/stream |
| Main motor power | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| The thermal power | 2.4kw/board | 3kw/board | 3kw/board | 7.5kw/board | 9kw/board | 10.8kw/board |
| Size(l*w*h) | 1450*400*1350 | 1600*400*1440 | 1450*690*1818 | 1880*780*1660 | 2100*1010*1900 | 2400*960*2500 |
| Weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |

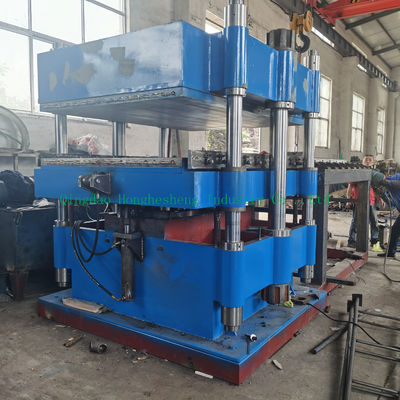

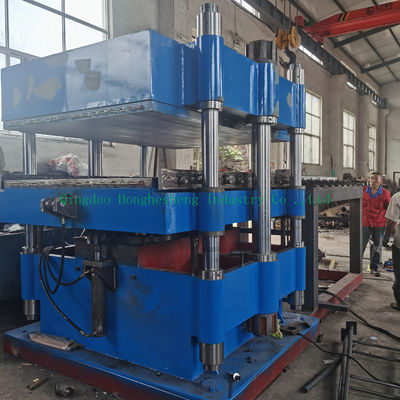

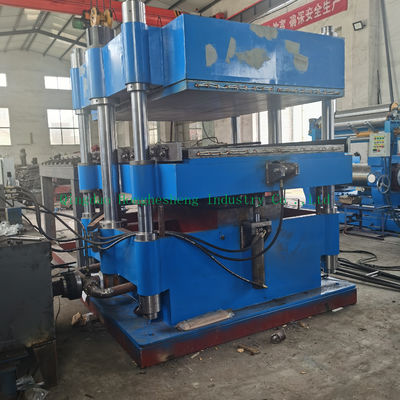

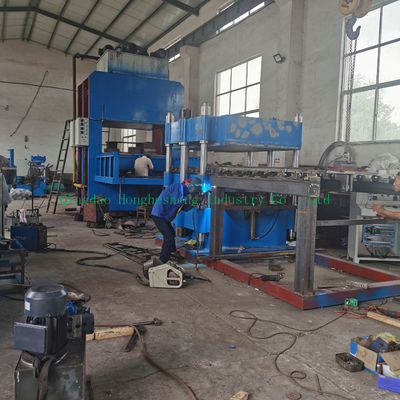

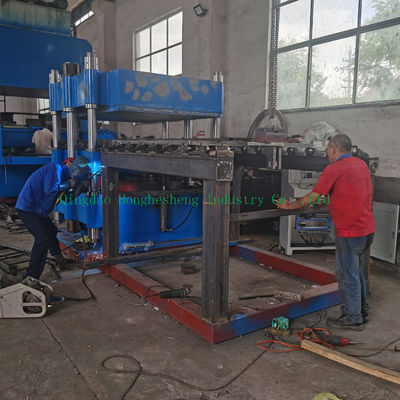

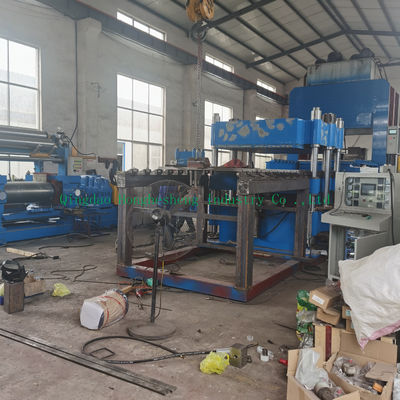

◊Machine Pictures:
