Product Details:
|
| Type: | Tire Machine,Rubber Cutting Machine,continuous Type | Power(w): | 90kw~200kw |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customer Request |
| Name: | Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant | Capacity: | More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h |
| Year: | New | Product Name: | Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery |
| Function: | Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder | Raw Material: | Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire |
| End Product: | Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber | Usage: | Used Tire Recyling,Waste Tyre Dispose |
| High Light: | 40 Mesh Rubber Crusher,90kw Double Roller Rubber Crusher,1500 Kg/H Waste Tire Recycling Machine |
||
1. Rubber Grinder Mill To granulate radial tires into fine rubber
crumb of 40~120 mesh with steel and fiber completely recycled at ambient temperature.
3. Rubber Grinder Mill tight construction, small space and simple
technique flow.
4. Rubber Grinder Mill low energy-consuming and good performance-cost ratio.
Rolls :: Alloy Chilled Cast Iron rolls with grooved teeth with hardness 510 ~ 550 BHN. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling.
Roll Clearance Adjusting Unit :NIP adjustment at two roller ends is done manually using two separate screws attached to the bearing housing body
Journal Bearing Housing : Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
Lubrication: Manual / Motorized Grease pump for lubrication of Anti Friction Roller Bearings fitted in dust sealed housing.
Stand Frame & Apron (Cap) : Heavy Duty Steel Casting / Steel Fabricated.
Base Frame : Common base frame, heavy duty Steel fabricated of Double Channel and MS plate accurately machined for fitment of auxiliary equipment.
Gearbox : Helical Reduction Gearbox Greaves/ Shanti make direct coupled with Motor and Pinion Drive Shaft
Technical parameter:
| Parameter | Version | |||||
| XKP-400 | XKP-450 | XKP-560 | XKJ400 | XKJ-480 | ||
| Front roll diameter | 400 | 450 | 560 | 400 | 480 | |
| Back roll diameter | 400 | 450 | 510 | 480 | 612 | |
| Roll length | 600 | 650 | 800 | 650 | 800 | |
| Front roll surface speed | 17.32 | 23.2 | 25.56 | 18.01 | 26.6 | |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 | 1:1.88 | 1:1.75 | |
| Max .nip | 8 | 8 | 15 | 10 | 15 | |
| Feeding capacity per | 200-300 | 600-800 | -1500 | -300 | -500 | |
| Power | 45 | 55 | 75 | 55 | 75 | |
| Size | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 | 4770*2300*1835 | 50702800*1978 | |
| Weight | 7000 | 12000 | 19000 | 12800 | 20000 | |

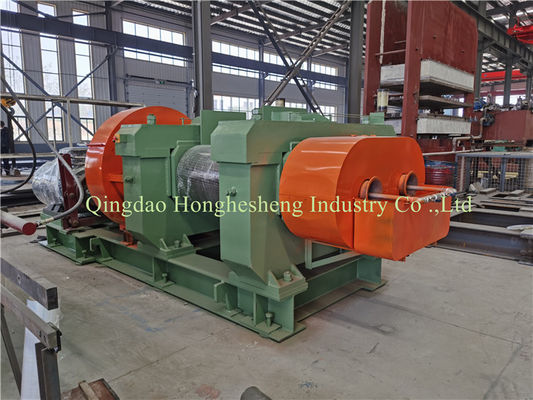

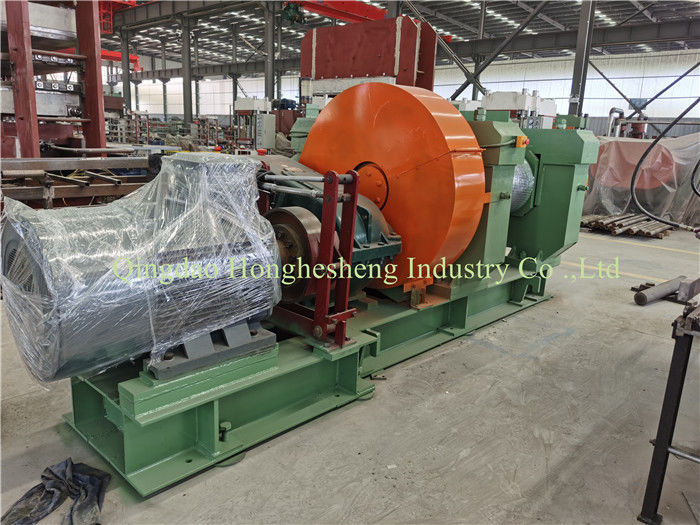

detailed pictures
N
