Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 35L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 55KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 6000KG | Dimension(l*w*h): | 3200*1900*2950mm |
| High Light: | 380V EVA Rubber Kneader Machine,50HZ Rubber Kneader Machine,Hard Chromed Rubber Dispersion Kneader |
||

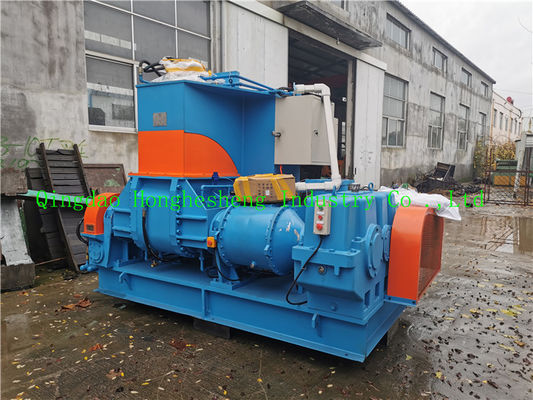

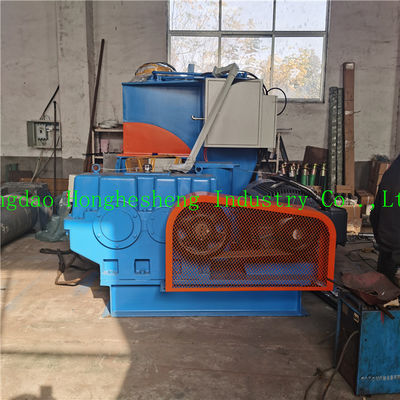

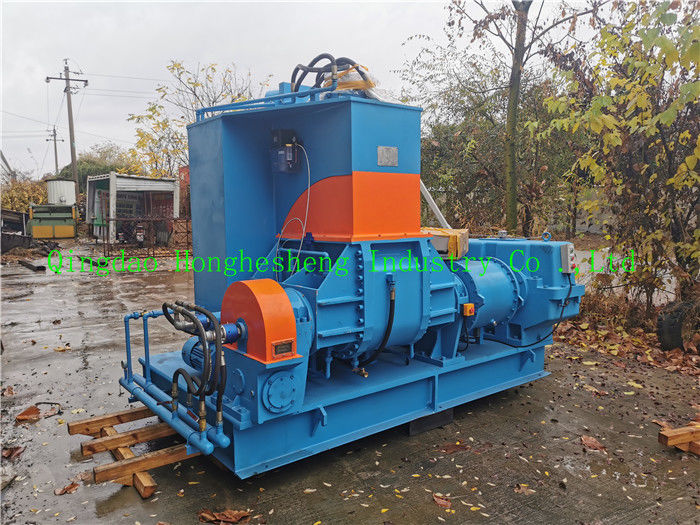

This machine is to mix and plasticize the plastics ( such as TPR, EVA, color master batch, rubber etc..) in the airtight, pressure, heating conditions (temperature and pressure are all controllable).It is a small machine with the virtues of small volume, low consumption, high precision controlling of temperature, pressure controllable and easy handling of loading and discharging materials, etc., which is suitable for sampling and improving formulas in plastics. It is also feasible for small production, which can avoid wasting resources by using big power machineries for sampling or for small production. The machine is suitable for testing and production in all professional granule factories.
Brief self-introduction:
Our factory has nearly 30 years experience in manufacturing rubber machine.
We have a set of standardized production line,which contains wire peeling machine,rubber cutter, grinding mill,shredder,screen conveyor,rubber crusher,shaker,banburying mixer,open mill,spiral elevator,kneader,rubber filter and extruder,vulcanizer,refiner,calendering machine.
Description:
1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion . Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2)Easy Cleaning and Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made nice.
3)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.
Construction:
Mixing Chamber & Rotors: The mixing chamber is fabricated from alloy steel & is W-shaped. The chamber is fitted with two rotary blades.
The surface is hard-chromed and has a provision for jacketing the inlet of water for cooling & steam for heating.
The rotors are hard chromed, after the tips of the rotary blades are welded with stelite.
ISO 9001 , CE, and SGS test each year.
Function:
Dispersion kneader, equipped with a pair of rotors which perform relative rotation with the specific shape, is a kind of machine for intermittently plasticating and mixing the polymer materials under with adjustable temperature and pressure.
Mainly parameters:
| Version & Parameters | XSN-35*30 | XSN-55*30 | XSN-75*30 | XSN-110*30 |
| Mixing capacity (L) | 35 | 55 | 75 | 110 |
| Main Power(kw) | 55 | 75 | 90 | 160 |
| Brake Motor (kw) | 2.2 | 3.0 | 4.0 | 5.5 |
| Tilting angle | 140 | 140 | 140 | 1400 |
| Air compressor (kw) | 5.5 | 7.5 | 10 | 10 |
| Dust collector | HLL-10 | HLL-15 | HLL-20 | HLL-30 |
| Cooling water (MPA) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Heating Steam (MPA) | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Electric Heater (kw) | 12 | 15 | 18 | 24 |
| Overall Size L×W×H (mm) | 3200×1900×2950 | 3750×1950×3050 | 3760×2143×3050 | 3930×3000×3660 |
| Weight(kg) | 6500 | 7800 | 10500 | 15000 |
