Product Details:
|
| Place Of Origin: | Shandong, China | Condition: | New |
|---|---|---|---|
| Batch Time(times/hour):: | 10 Times/hour | Total Capacity(L): | 35L |
| Marketing Type: | New Product 2021 | Warranty: | 3 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pum | Brand Name: | HHS |
| Voltage: | 380V,Customer's Request,380V/50HZ | Power(w): | 55KW |
| Type: | Rubber Kneader,Electric Heating Water Cooling | Color: | Orange,Blue Or Green,customized |
| Application: | Rubber / Plastic Mixing,Mixing Rubber Or Press Rubber Sheet | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 6000KG | Dimension(l*w*h): | 3200*1900*2950mm |
| High Light: | Rubber Internal Banbury Mixing Machine,Silicone Plastic Compound Mixer,EVA Silicone Plastic Compound Mixer |
||
NAME:Factory direct PVE EVA Silicone Plastic Compound Mixer Rubber Internal Banbury Mixing Machine
MODEL:XSN-3L,5L,10L,20L,35L
Parameter of Good price Banbury Rubber Mixer / Banbury Rubber Internal Mixer Machine Manufacturer.
| Parameter/model | X(S)N-3 | X(S)N-10 | X(S)N-20 | X(S)N-35 | X(S)N-55 | X(S)N-75 | X(S)N-110 | X(S)N-150 | X(S)N-200 |
| Total volume (L) | 8 | 25 | 45 | 80 | 125 | 175 | 250 | 325 | 440 |
| Working volume (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving motor power (KW) | 7.5 | 18.5 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Tilting motor power (KW) | 0.55 | 1.5 | 1.5 | 2.2 | 2.2 | 4.0 | 7.5 | 15 | 7.5 |
| Tilting angle | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Rotor speed (RPM) | 32/25 | 32/25 | 32/26.5 | 32/24.5 | 32/26 | 32/26 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of compressed air (MPA) | 0.7-0.9 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Capacity of compressed air (m³/min) | ≥0.3 | ≥0. 5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.3 | ≥1.6 | ≥2.0 | ≥2.0 |
| Pressure of cooling water (Mpa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| weight (kg) | 1038 | 3000 | 4437 | 6500 | 7850 | 10230 | 14200 | 19500 | 22500 |
CONFIGURATION of Factory direct PVE EVA Silicone Plastic Compound Mixer Rubber Internal Banbury Mixing Machine.

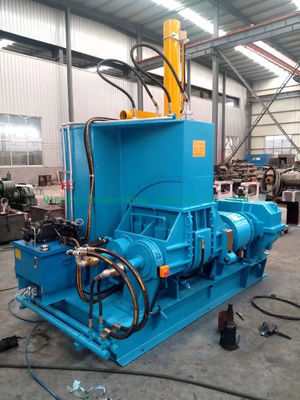

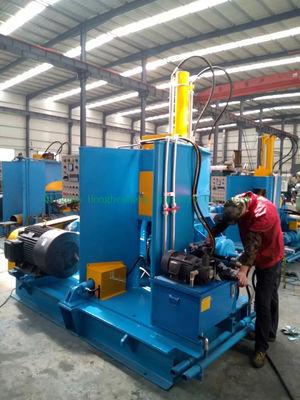

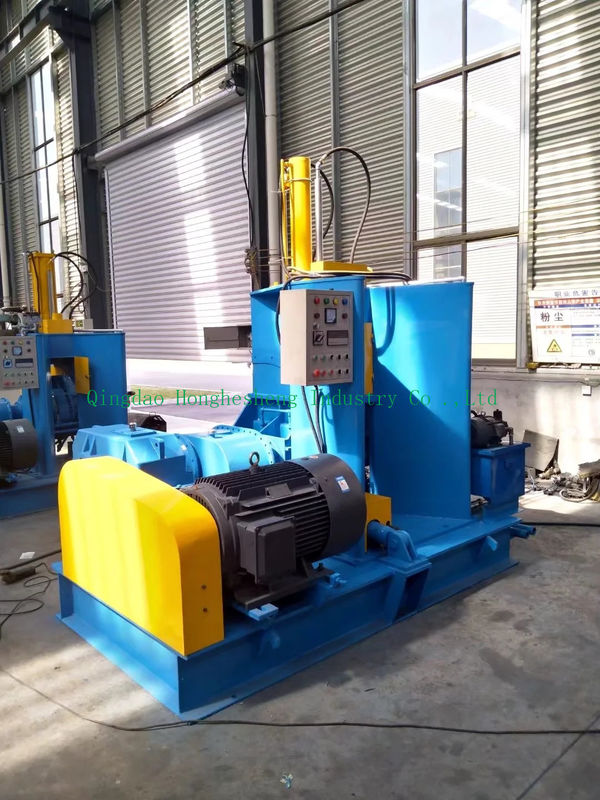

detailed picture
For FCL goods, we usually pack machines with stretched film and then load them to the
container. to ensure safety, we will fix machine with steel .
For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
