Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | Rubber Sheet Vulcanizing Press Machine,Frame Structure Vulcanizing Press Machine,2000t Plate Vulcanizing Press |
||
1 This machine is frame structure, including main machine, hydraulic station, electric controlling cabinet
2Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device
Parameter of HOT Highway slow down speed bump making machine & Rubber products vulcanizing press machine
| Item | XLB-D(Y)1000*1000*1 | XLB-D(Y)1200*1200*1 | XLB-D(Y)1500*1500*1 |
| Nominal molding power | 1.60-2.00MN | 3.15MN | 4.00-5.00MN |
| Working layer number | 1 | 1 | 1 |
| Piston stroke | 250-500mm | 250-500mm | 250-500mm |
| Main motor power | 3.0kW | 3.0kW | 3.0kW |
| Plate clearance | 125-500mm | 125-500mm | 125-500mm |
| Heating method | Steam,ecectricity | Steam,ecectricity | Steam,ecectricity |
| Configuration | Frame | Frame | Frame |
| Electric pipr heating power | 12kW | 15.6kW | 27kW |

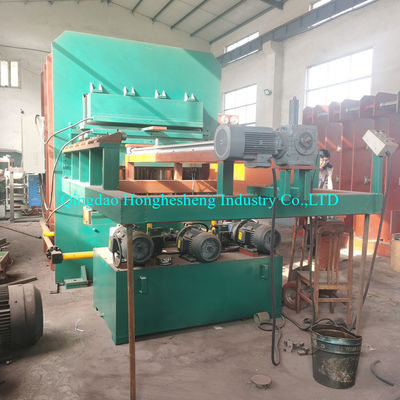

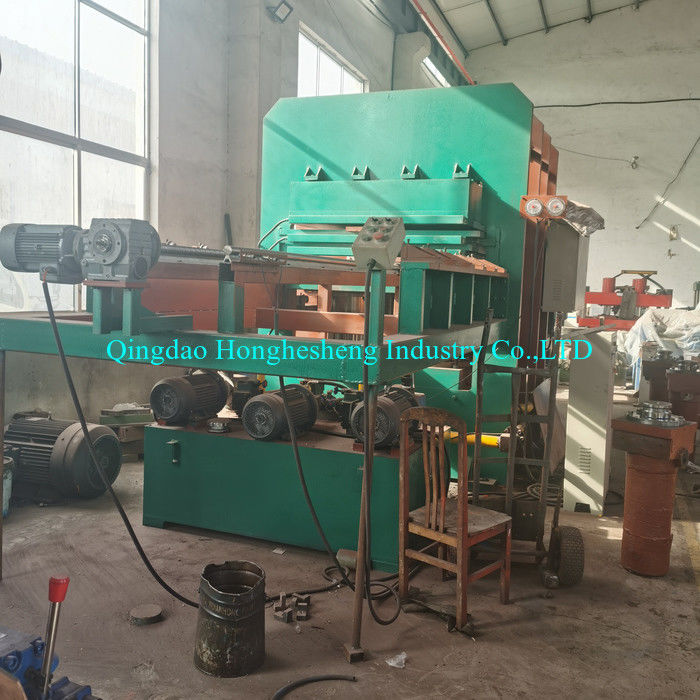

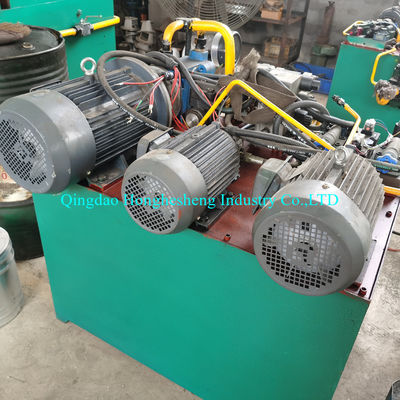

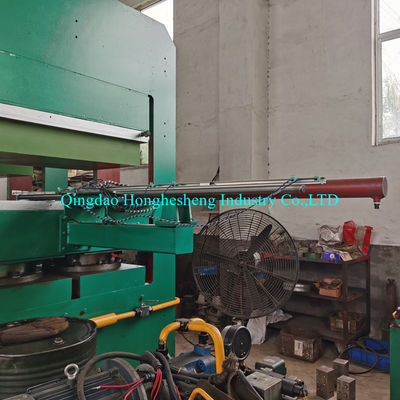

◊Machine Pictures:
