Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 2000 Kg |
| Advantage: | High Production | ||
| High Light: | 100t Rubber Vulcanizing Press Machine,600x600 Vulcanizing Press Machine,Column Type Plate Vulcanizing Press |
||
100Ton RUBBER VULCANIZING PRESS MACHINE 600*600*1.0MN
1. Introduction
n Plate Vulcanizing Press (Column Type)
This machine(Column type) is mainly used for vulcanizing all kinds of rubber and plastic mold products and non-mold product.
The technique parameter:
| TYPE | XLB-D600X600/1.60MN |
| TOTAL PRESSURE(MN) | 1.60MN |
| PLATE SIZE(MM) | 600X600 |
| PLATE DAYLIGHT (MM) | 350 |
| DAYLIGHT NO | 1 |
| PISTON STROKE(MM) | 350 |
| PLATE UNIT AREA PRESSURE(KG/CM2) | 44.5 |
| OVERALL DIMENSION(MM) | 700X1700X1800 |
| WEIGHT(KG) | 5100 |

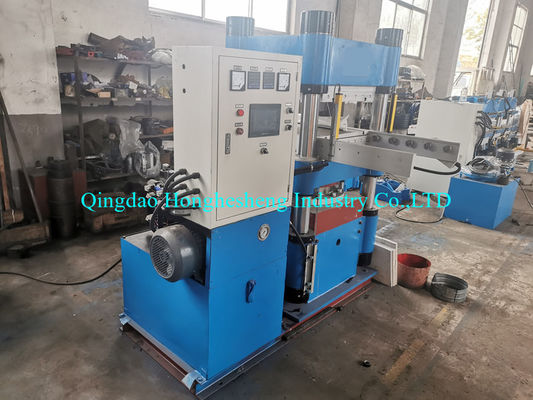

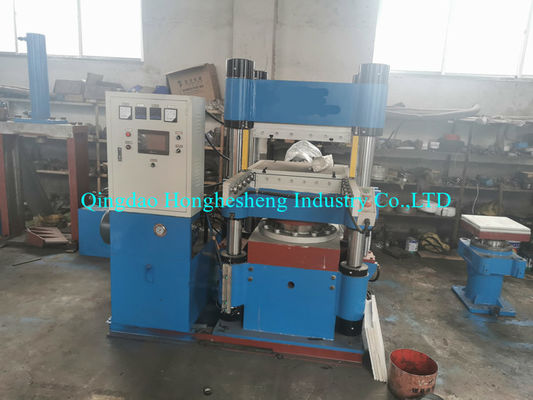

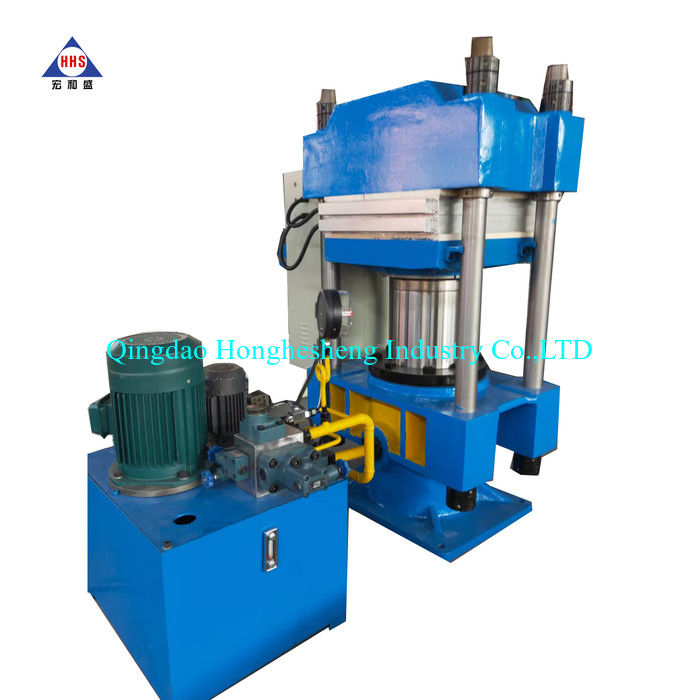

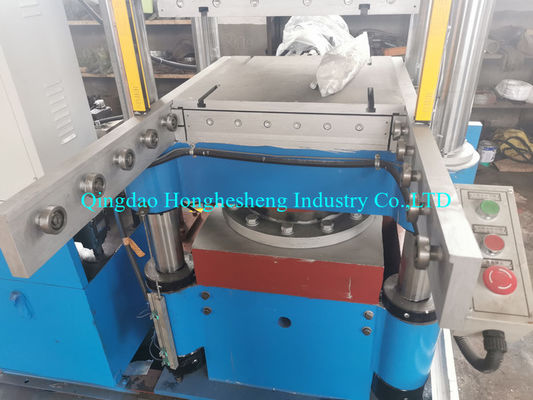

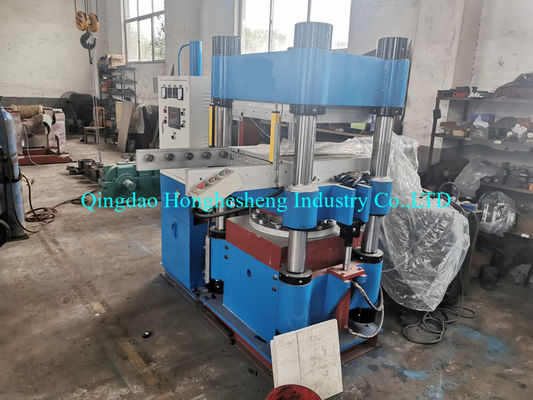

◊Machine Pictures:
◊related products:
