Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire

Certification
China Qingdao Honghesheng Industry Co., Ltd. certification
I'm Online Chat Now

Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire

Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire
Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire
Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire

Large Image :  Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire

Product Details:
Place of Origin: CHINA
Brand Name: HHS
Certification: CE
Model Number: HHS-900
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD:20000/SET
Packaging Details: wood package /20-40GP/HC
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 SETS/MONTH

Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire

Description
Type: Tire Machine,Rubber Cutting Machine,continuous Type Power(w): 90kw~200kw
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 380V/50HZ,Customer Request
Name: Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open Mill Tyre Recycling Reclaimed Rubber Plant Capacity: More Than 500kg Per Hour,200-4000kg/h,1500 Kg/h
Year: New Product Name: Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery
Function: Tire Powder Recycling Machine,Make Rubber Granule,crumb Tires Into 30mesh Powder Raw Material: Waste Tire Sealing Sheet,rubber Scraps,truck Tire,car Tire
End Product: Rubber Granules And Powders,rubber Granules/rubber Powder,tire Steel,tire Fiber Usage: Used Tire Recyling,Waste Tyre Dispose
High Light:

Double Hoop Wire Drawing Machine

,

Tire Debeading Wire Drawing Machine

,

Automatic Waste Tyre Recycling Plant

double hook debeading steel and wire from used waste tire

Product Description

Car and Trucks Tire Debeader Used Tyre Debeader LS-1200

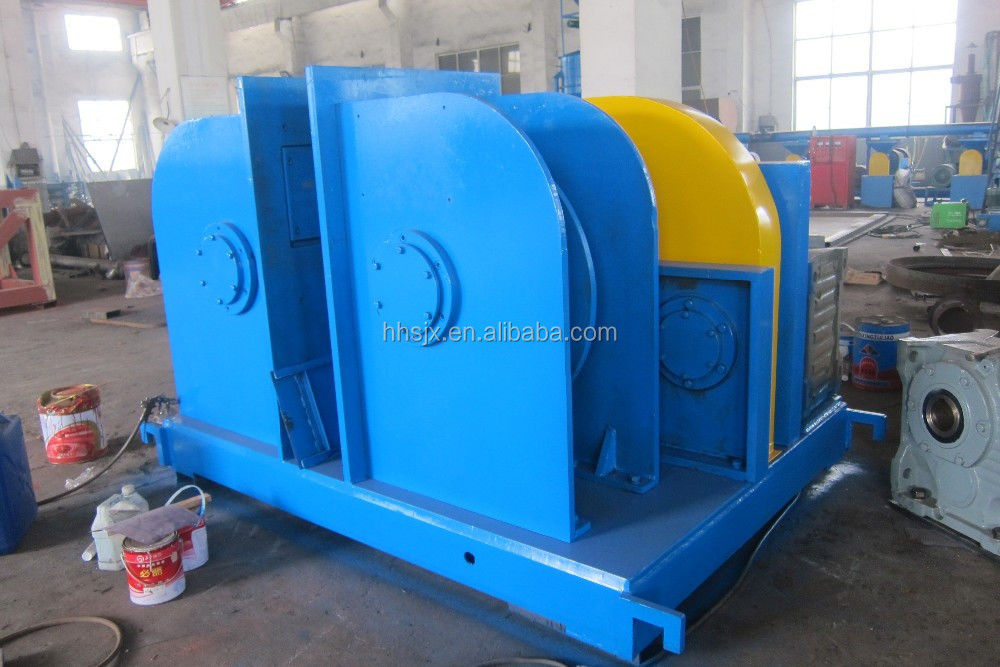

This Double Hoop Wire Drawing Machine is used to seperate the steel wire in the Tire,after this process,the tire can be put into the tire shredder to get 50*50mm rubber blocks.

It is used to pull out bead wires inside two tire sidewalls completely and simultaneously before next cutting and shredding process. It mainly consists of motor, speed reducer, transmission gears, round hooks, cross-hole plate, support boards, pedestal, bearing pedestal, rolling shelf control cabinet.



Advantage:

The machine use integral base pedestal, easy installation and operation, it is the most efficient debeader in the current market;
Adopts twin motor and twin hook design to pull out bead wires at 3 times the speed of the single hook debeader;
Mechanical transmission and round hook design, high efficient and small occupation area;
Circuit protection system, safety protection frame to make the operation easy and safe;
Round hook, cross hole plate and gears are made of materials after special treatment, wearable, heavy-duty, easy miantenance and long life.



Technical Parameter:

Model: LS-1200

Capacity: 60-80 tires/hour

Pulling force(T): 15 Tons x 2 sets

Max.tire diameter:≤1200mm

Motor Power(KW): 15 KW x 2 sets

Operation way: automatic system

Hook structure: dise-type

Hook quantity: 2 sets

Hook material: high hardness alloy steel

Weight: about 6000KG

double hook debeading steel and wire from used waste tire

double hook debeading steel and wire from used waste tire

double hook debeading steel and wire from used waste tiredouble hook debeading steel and wire from used waste tiredouble hook debeading steel and wire from used waste tiredouble hook debeading steel and wire from used waste tire





******If this machine is over your budget******

you can try our single hook debeader or sidewall cutter+strips cutter+steel wire separator to save your cost.





double hook debeading steel and wire from used waste tire double hook debeading steel and wire from used waste tire





Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire 8



Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire 9

Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire 10Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire 11Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire 12
