High Performance Tire Tube Valve Making Machine

High Performance Tire Tube Valve Making Machine
High Performance Tire Tube Valve Making Machine High Performance Tire Tube Valve Making Machine High Performance Tire Tube Valve Making Machine High Performance Tire Tube Valve Making Machine High Performance Tire Tube Valve Making Machine

Large Image :  High Performance Tire Tube Valve Making Machine

Product Details:
Place of Origin: Qingdao Shangdong
Brand Name: HHS
Certification: CE
Model Number: XLB50-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 4000-10000
Packaging Details: standard wood package or based on clients request
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/Year

High Performance Tire Tube Valve Making Machine

Description
Type: Vulcanizer Colour: Blue White,customized
Voltage: Customized Power(W): 5.5KW
Temperature: 300 Degree Working Layers: 1-4layers
Plates: 300-2100mm Hot Plates Material: Q-235 Material.
Heating: Electricity , Steam Heating , Conduction Oil Heating . Weight: 3000 Kg
Advantage: High Production
High Light:

Tire Tube Valve Making Machine

,

High Performance Valve Making Machine

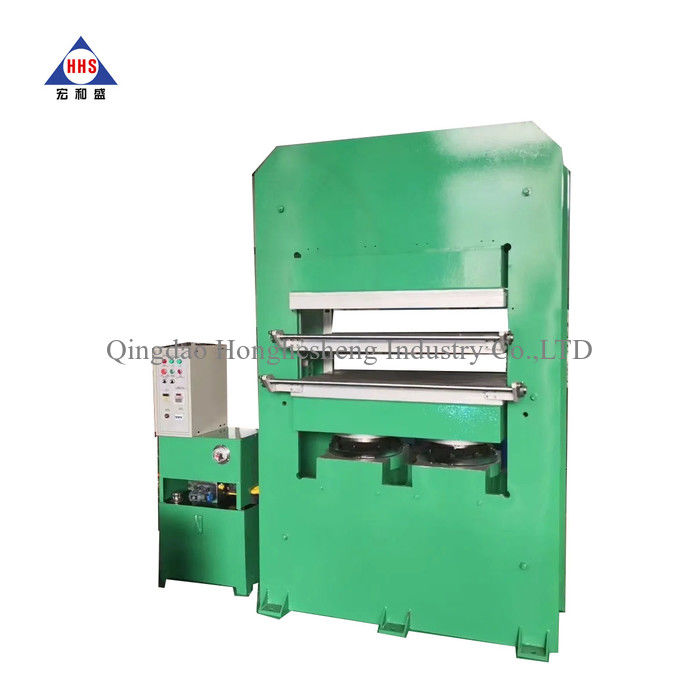

Introduction of rubber vulcanizing press



XLB series the plate vulcanizing press for rubber is the main molding equipments for various of rubber molding products and non-molding products, The equipment is also suitable for molding to thermosetting plastic, bubble, resins, Bakelite, sheet metal, building materials and other molding products, with simple structure, high pressure, wide applicability, and high efficiency.



Parameter of Column rubber vulcanizing press

Model
Total Pressure
Daylight
Working layer
Piston Stroke
Main Motor Power
Overall Diameter
XLB-350*350*2
0.25
125
2
250
2.2
1200*580*1200
XLB-400*400*2
0.50
125
2
250
2.2
1400*500*1400
XLB-600*600*2
1.00
125
2
250
2.2
1880*820*1680
XLB-750*850*4
1.60
125
4
500
3
1730*930*2460
XLB-900*900*2
2.5
200
2
400
4
2345*960*1385



Tyre inner tubes making machine Features

1.The cylinder ( piston ) adopts the best seals structure , with reasonable design and reliable function. The seals part is good quality YX type polyurethane seals (not rubber seal ) ,which is oil resistant , aging resistant .Our machine adopts the double seals structure , and seals part is easy change and protect.
2.Automatic control : automatic mold closing , automatic exhausting , automatic heating and keep stable temperature, automatically timing for vulcanization , automatic alarming , automatic mold opening ,etc
3.The vulcanizing temperature can be set and showed in the digital displan .
4.Vulcanizing time can be set in the PLC screen . If you want to heat and vulcanize for 1 minutes , just set it directly . When it reaches 1minutes ,machine will alarm then machine will open the mold automatically
5.Pillar is made of high quality # 45 steel, The hardness , wear resistance and abrasive resistance is high improved by quenching and tempering
6.The top beam and bottom plate form is welded with the good quality Q-235A ductile iron .After welding , it is also processed by the artificial vibration or high temperature aging treatment , to eliminate the internal stress and avoid the deformation
7.plunger is made of LG-P cold hard alloy steel . Surface of it owns high hardness and wear resistant.Depth of chilled layer is 8-15mm , hardness is HRC 60-70 , making the plunger own long life time
8.Mainly hdralic spare parts are imported from Taiwan

High Performance Tire Tube Valve Making Machine 0

IMG_20200729_142424IMG_20200729_142834IMG_20200729_142740IMG_20200729_142848IMG_20200729_142839



High Performance Tire Tube Valve Making Machine 6High Performance Tire Tube Valve Making Machine 7High Performance Tire Tube Valve Making Machine 8High Performance Tire Tube Valve Making Machine 9
