Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Plates: | 300-2100mm | Hot Plates Material: | Q-235 Material. |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 3000 Kg |
| Advantage: | High Production | ||
| High Light: | Rubber Hydraulic Vulcanizing Press Machine,Q235 Automatic Vulcanizing Press Machine |
||
1. Structure:
♥ This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet
♥ Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device; used as hydraulic press machine.
2. Technical Parameters
|
Parameters/version
|
XLB350*350*2 | XLB400*400*2 | XLB500*500*2 | XLB600*600*2/4 | XLB750*850*2 | XLB1000*1000*2 |
| Mould closing force | 0.25MN | 0.5MN | 0.8MN | 1.0MN | 1.6MN | 2.5MN |
| Hot plate spacing | 125mm | 125mm | 125mm | 125mm | 125mm | 200mm |
| Hot plate layer | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Plunger stroke | 250mm | 250mm | 250mm | 250/500mm | 250mm | 400mm |
| Heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/Stream | Electricity/stream |
| Main motor power | 2.2kw | 2.2kw | 2.2kw | 2.2kw | 3kw | 5.5kw |
| The thermal power | 2.4kw/board | 3kw/board | 3kw | 7.5kw/board | 9kw/board | 10.8kw/board |
| Size(L*W*H)mm | 1450*400*1350 | 1600*400*1440 | 1450*690*1818 | 1880*780*1660 | 2100*1010*1900 | 2400*960*2500 |
| Weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |

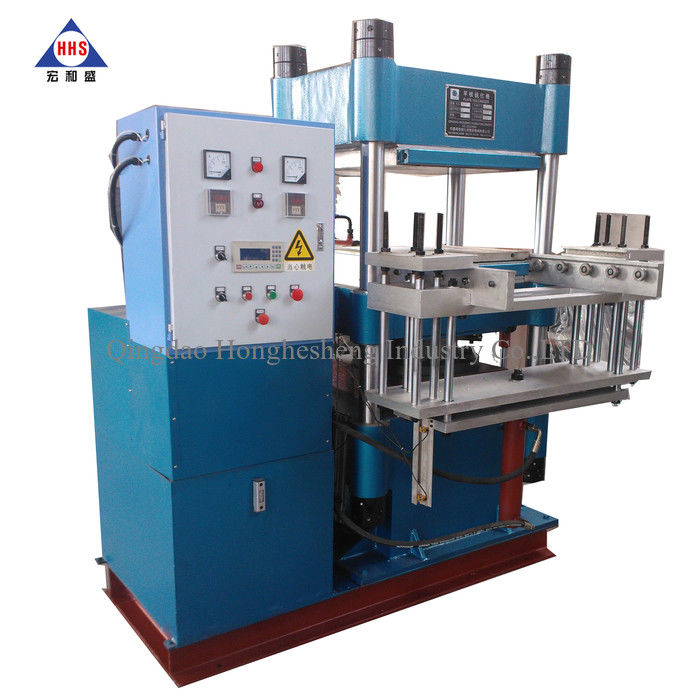

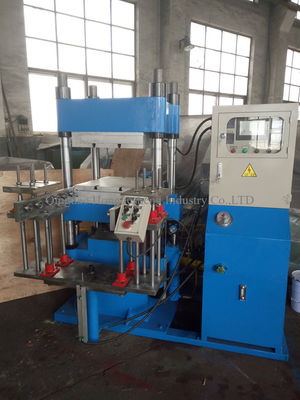

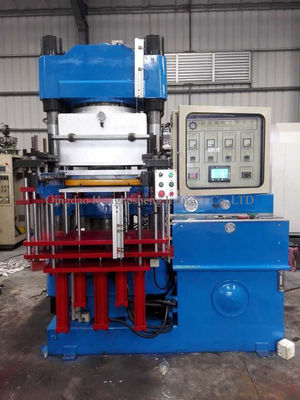

3. Detailed Pictures
