Product Details:
|
| Type: | Vulcanizer | Colour: | Blue White,customized |
|---|---|---|---|
| Voltage: | Customized | Power(W): | 5.5KW |
| Temperature: | 300 Degree | Working Layers: | 1-4layers |
| Heating: | Electricity , Steam Heating , Conduction Oil Heating . | Weight: | 3000 Kg |
| Advantage: | High Production | ||
| High Light: | Manual Rubber Vulcanizing Press,100T Automatic Rubber Vulcanizing Press,Laboratory Plate Vulcanizing Press |
||
Instruction:
Factory Sales Lab Rubber Compression Molding Machine is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.
Parameters:
| Capacity | 50T,100T,200T |
| Temp. Range | Room temp. ~300℃ |
| Temp. Controller | LED Indicator,press key set input |
| Timer | LED display,time range 0.1S~99min~9.9hr |
| Heating type | Electrical Heating |
| Hot pressure plate | 300×300mm / 350x350mm / 500x500mm optional |
| Cold pressure plate | 300×300mm / 350x350mm / 500x500mm optional |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature scope | Room temp. ~+5℃ |
| Cooling type | Water cooling / Air cooling (optional) |
| Oil pressure system |
The proportion hydraulic pressure current capacity loop circuit control system,GPY oil pump driver high performance electroencephalographic |
|
matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can preelection one, twice pressure and time. |
|
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0~350kg/sq.cm |
| power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power supply | 3 phase,AC 380V,20A (or customize) |
| Weight | About 500kg |

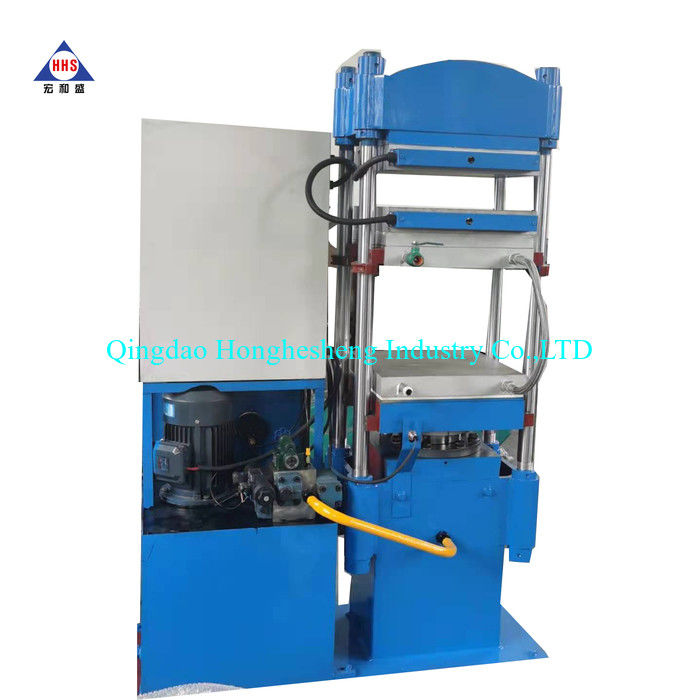

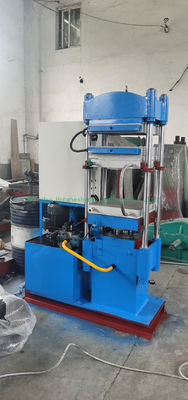

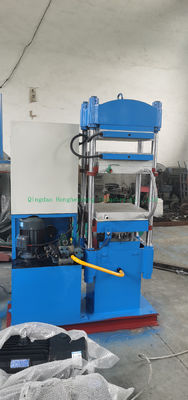

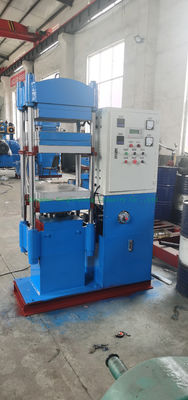

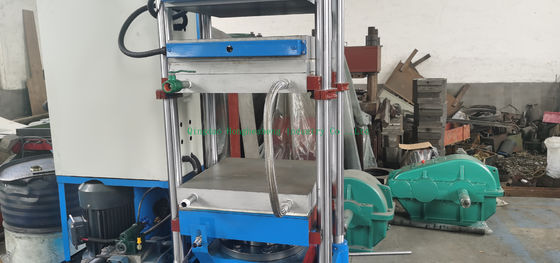

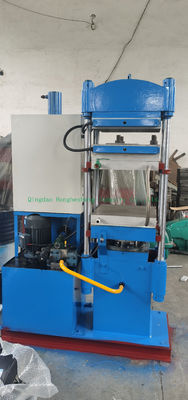

Detailed Pictures:
why choose us:
1 manufacturer direct sale, can ensure delivery time and quality.
2 plunger diameter difference is very small,which ensure pressure.
3 our vulcanizing press is equiped with PLC system. automatic controling temperature and pressure, automatic alarm, automatic loading ,emergency stop ,digital readout and son on.
4 low noise, no oil leakage, no pressure off.
5 small temperature difference of hot plate,
Plate temperature difference: ±1°C, which follows the national standard.
6 the parallelism differnce does not exceed ±0.01-0.02mm
7 hot plate use high quality carbon steel Q-235 material.
7 heating method according to your request : electricity , steam heating , conduction oil heating .
8 we can make machine according to the your request.
9 we can give a good discount according to your quantity
