Rubber Product Vulcanizing Press Machine 3plate 2layers 100T

Certification
China Qingdao Honghesheng Industry Co., Ltd. certification
I'm Online Chat Now

Rubber Product Vulcanizing Press Machine 3plate 2layers 100T

Rubber Product Vulcanizing Press Machine 3plate 2layers 100T
Rubber Product Vulcanizing Press Machine 3plate 2layers 100T Rubber Product Vulcanizing Press Machine 3plate 2layers 100T Rubber Product Vulcanizing Press Machine 3plate 2layers 100T Rubber Product Vulcanizing Press Machine 3plate 2layers 100T Rubber Product Vulcanizing Press Machine 3plate 2layers 100T Rubber Product Vulcanizing Press Machine 3plate 2layers 100T

Large Image :  Rubber Product Vulcanizing Press Machine 3plate 2layers 100T

Product Details:
Place of Origin: Qingdao Shangdong
Brand Name: HHS
Certification: CE
Model Number: XLB100T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000-20000
Packaging Details: standard wood package or based on clients request
Delivery Time: 15-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets/Year

Rubber Product Vulcanizing Press Machine 3plate 2layers 100T

Description
Type: Vulcanizer Colour: Blue White,customized
Voltage: Customized Power(W): 5.5KW
Temperature: 300 Degree Working Layers: 1-4layers
Plates: 300-2100mm Hot Plates Material: Q-235 Material.
Heating: Electricity , Steam Heating , Conduction Oil Heating . Weight: 3000 Kg
Advantage: High Production
High Light:

Rubber Product Vulcanizing Press Machine

,

100T Vulcanizing Press Machine

,

3 Plate Vulcanizing Press

100T Rubber Custom Vulcanizing Machine

This machine is suitable for vulcanization of all kinds of rubber products, also widely used in solid plastics, foams, building decoration materials, decorative products pressing molding. It has perfect function and compact structure. Automatic temperature control, alarm, manual mold opening, automatic pressure, timing. PC controller can also be used according to user requirements, to achieve the whole process according to the preset work procedures to automatically complete the process.

MAIN FEATURES

1. The machine adopts the semiautomatic control. Worker can set the vulcanzing time , vulcanizing temperature in the cabinet . On finishing vulcanization , machine will alarm and worker can open mold
2. Most spare parts for hydraulic system are from our best domestic brand
3. Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4. The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5. The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6. Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7. Main electrical elements are from Schneider France ,which can stabilize machine performance



TECHNICAL PARAMETER

Model
XLB-400*400*2
XLB-600*600*2
XLB-800*800*2
mold closing force
50 ton
100 ton
160 ton
plate size
400*400mm
600*600mm
800*800mm
working layer
2
2
2
plate clearance
200mm
200mm
200mm
piston stroke
400mm
400mm
400mm
piston diameter
200mm
300mm
400mm
plate pressure
2.2 Mpa
2.2 Mpa
3 Mpa
machine weight
about 1300 kg
2500kg
6500kg

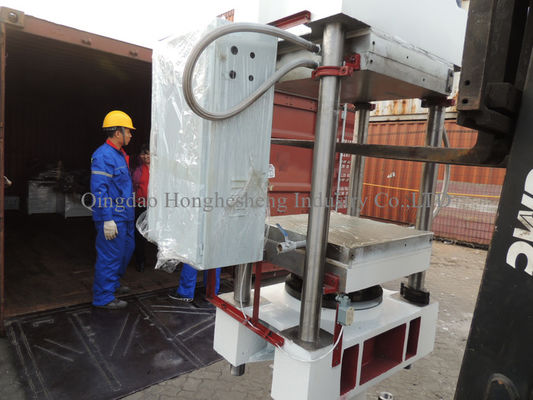

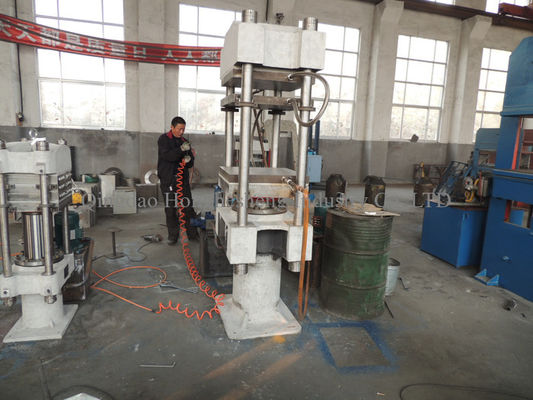

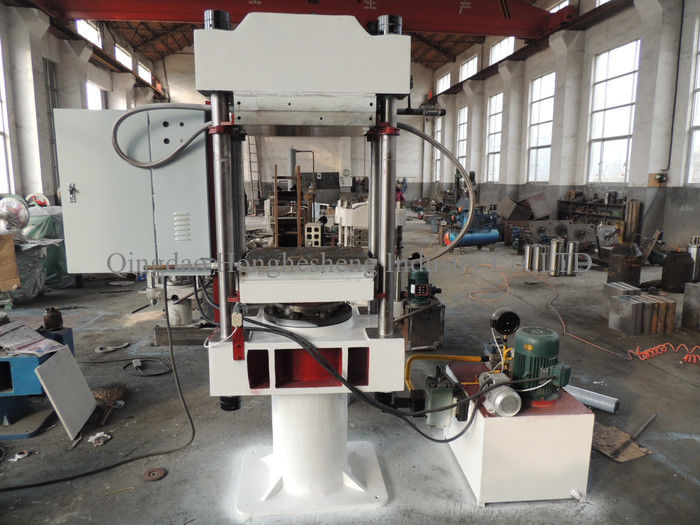

MACHINE PICTURES

Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 0Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 1Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 2

IMG_20200519_093943





_20220507144959



Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 6_20220507145019



Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 8_20220507145109_20220507145044



Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 11_20220507145132

Tips
  • Since the price of raw materials fluctuates, online price is for your reference price.

  • If you are interested in our products, please feel free to contact us for a real-time quotation.
  • We can guarantee the same quality and the lowest price among our peers.

Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 13Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 14Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 15Rubber Product Vulcanizing Press Machine 3plate 2layers 100T 16
