Product Details:
|
Type: | Vulcanizer,tile Machine | Cnc Or Not: | Normal |
---|---|---|---|
Color: | Blue,Customizable | Power Source: | Hydraulic |
Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Capacity: | 200ton,80ton |
Keyword: | High Speed Press Machine | ||
High Light: | Rubber Vulcanizing Machine 50 Ton,Rubber Vulcanizing Machine 550*550mm,Column Rubber Tile Plate Press |

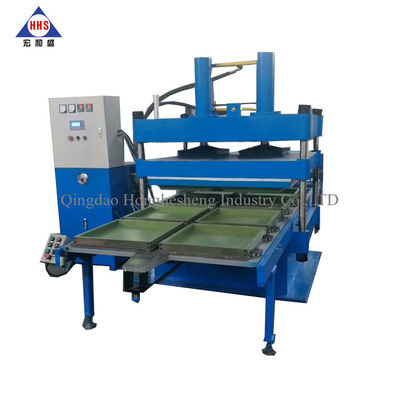

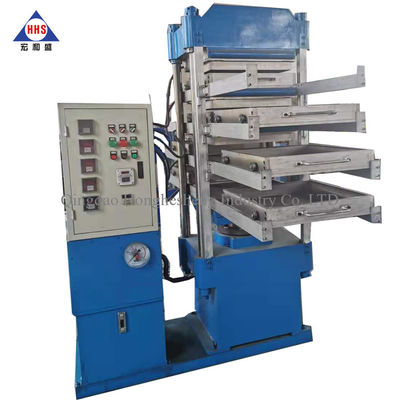

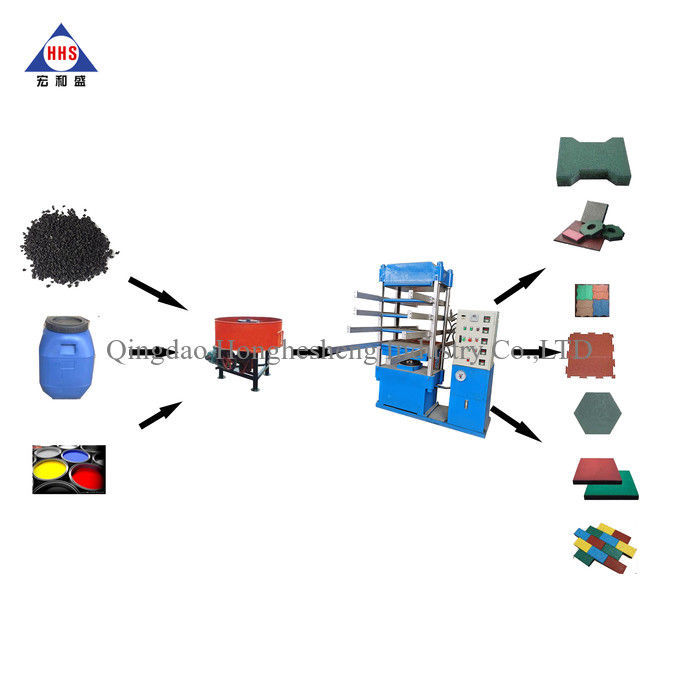

Rubber tile vulcanizing press is used to press the rubber tiles and rubber mats, it is good for using the recycling rubber.
Column Type Big Rubber Tile Plate Press Hydraulic Machine/Rubber Vulcanizer/Rubber Vulcanizing Machine 50t 550*550*4
1 Technical Parameters
S.no | Model | XLB-D550×550×4/0.5MN | XLB-D650×650×2/0.5MN |
1 | Nominal clamping force (MN) | 0.5 | 0.5 |
2 | Heating platen size(mm) | 550×550 | 650×650 |
3 | Plate clearance (mm) | 150 | 150 |
4 | Working layers | 4 | 2 |
5 | Piston stroke (mm) | 400 | 400 |
6 | Plate unit area pressure (Mpa) | 1.65 | 3.20 |
7 | Overall dimension (mm) | 2200×900×2200 | 2200×1200×2400 |
8 | Weight (kg) | 3600 | 5000 |
2 As a leading rubber machine manufacturer and exporter of China, we can supply professional quality rubber tile vulcanizer machine to you with competitive price and give guarantee to the quality. We also can produce various non-standard model press according to your detailed requirement.
3 Features:
Manual push-pull mold
High output and efficiency
Easy and safe operating
4 The Detailed Parameter:
1. we usually design as clients' products and details request. our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. and decide the working layers.
2.the machine is matched with manual push-out device .
3. we also can provide the different size of the molds, from 20mm to 75mm thickness.

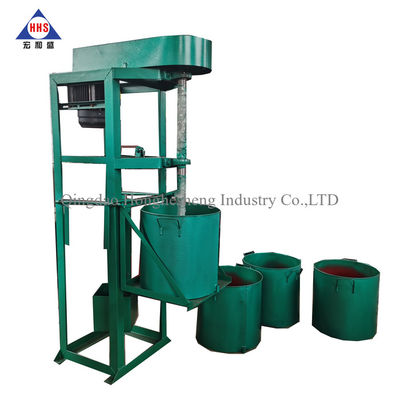

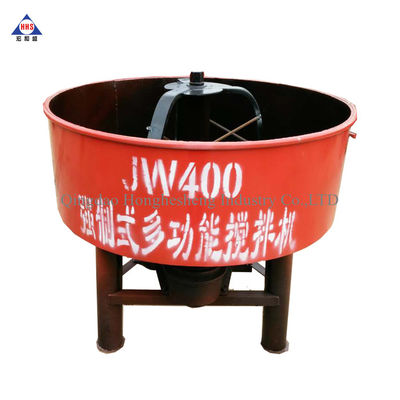

4. rubber mixer can also provided, if needed.
5. The press with 12 pcs molds and rubber mixer is only 8m3 of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6. We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine.
4 detailed pictures
note : or choose bigger machine(steam heating system),tell me which machine you like when sending enquiry
