Product Details:
|
| TYRE SIZE: | 4-18 INCHES Motorcycle Tyre ,atv | Bs Adjustment Range: | 180-350/350-600mm |
|---|---|---|---|
| Linng Cloth: | 400 | Nose Center Height: | 850-870 |
| Working Air: | 0.7-0.9mpa | Curtain Roll Max Diameter: | 450mm |
| Colour: | Green,blue, Customize | ||
| High Light: | Spring Turn Up Molding Machine,Motorcycle Tyre Spring Molding Machine,300mm Bicycle Tyre Making Machine |
||

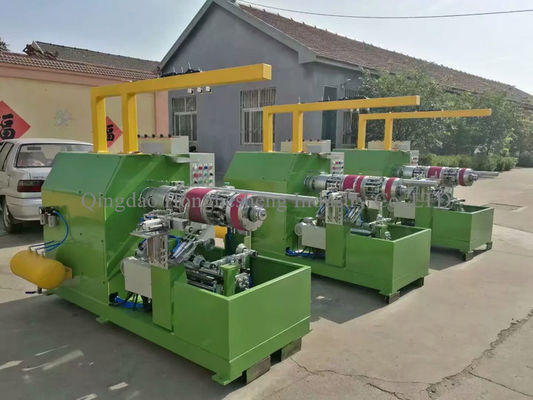

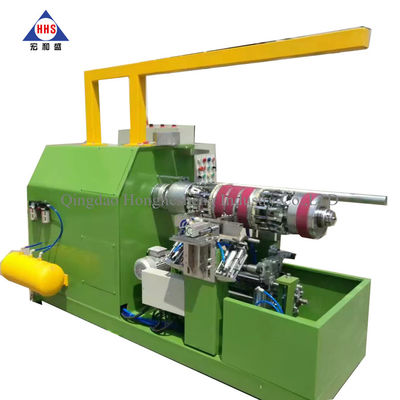

full automatic tire building machine for motorcycle
Motorcycle Tyre Spring Turn-Up Building Molding Machine/Bickcle Tyre Making Machine
1. Automatic control the tread length, cutting and building function
2. Tread centering function, avoid off center building
3. Tread stretching system, make tread have some lension with tire casing, stable tread building
4. Mechanism or electricity circumference measurement
5. With safe and lifting device, safe operation, reliable convenient
paremeter
| Size of tire | Motorcycle tyre |
| Nylon cord | 8"-18" |
| Cord fabric roll diameter (max) | 400mm |
| Inner cloth roll diameter (max) | 300mm |
| Revolution of drum | 35-120r/min |
| Main drive motor | 2.2kw |
| Ply servicer motor | 1/2HPx4P1/20each ply |
| Compressed air | 5-7KG/CM^2 |
| Under stitcher motor | 0.75KW |
| Overall dimension | 2300L*2200W*2050H |
| Building speed |
2PLY building 500pcs/8hr
|
Characters:
1. Easy-handling and handling safely
2. Advanced design
3. Almost full automatic control
4 .Equally heat and good heat distributions
5. Durable and reliable
6. Automatic and Efficient
7. Pneumatic, energy-saving and Labor-saving
8. Advanced design, one people can handle it
paremeter
drum
