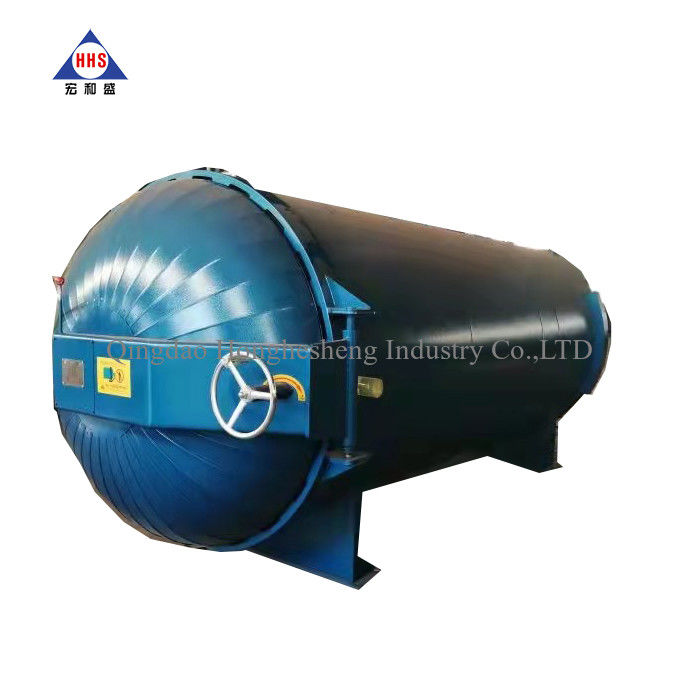

5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber

5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber
5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber

Large Image :  5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber

Product Details:
Place of Origin: CHINA
Brand Name: honghesheng
Certification: CE ISO
Model Number: 1200-1500-1800-2000 diameter or customize
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD:15000-20000 /SET
Packaging Details: wood package /20-40 container
Delivery Time: 20 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month

5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber

Description
Diameter: 1000-3000mm Heating Method: Electric Heating/steam Heating/oil Heating
Control Methods: Full Automatic Control/semi-automatic Control/manula Product: Tube/shoes, Sheets/wood
High Light:

500cm Vulcanization Tank

,

5000mm Indirectly Heating Vulcanizer

,

Vulcanizing Curing Chamber

indrectly heating vulcanizer/ vulcanizing tank/ curing chamber

Characters

1. Indirectly heating vulcanizer is heated by steam, conduction oil through pipes.heating pipe
is equiped with special fin, has characterstics of good heat dispersion and long life.



2. Glass Insulation and automatical heating make low energy consumption & best power efficiency



3. Door open&close security guaranteed by chain lock system,easy operation and maintenance .



4. Detector of probes automatical control temperature,pressure and time .



5. Payment and Transportation could negotiated while business discussion .



USAGES
Widely in new tire curing, tire recap industry, rubber pipe, roller,cables, shoes,latex belt,rubber balls , Specially autoclaves used in military scope ,aircraft composite ,carbon fiber industry ,glass composite



REFERENCE PARAMETERS




MOLD

CONTROL

DIA (mm)

LEN (mm)

MDM

PRE (Mpa)

TEM ()
DN1504B.3
Automatic
1500
4,000
Air
0.73~3.00

120~310
DN0206B.3
2000
6,000
120~310
DN0304B.3
3000
4,000
120~310
DN0410B.3
4000
10,000
120~310
DN0509B.3
5000
9,000
120~310
DN0610B.3
6000
10,000
120`310
1. TYPE: Electic heating , steaming for boiler , circulation oil
2. MEDIUM : air, water ,steaming, circulation oil
CONTROL MANNERS : Manual ,semi-automatic and fully automatic
3. Diameter, length ,design pressure and temperature done under customers requirements .


5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 0

5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 15000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 25000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 35000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 4



5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 55000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 6

we can make autoclave machine based on your request,because different equipment, prices changes a lot, , kindly confirm me

like chanber diameter ? length? pressure? temperature? what product you make?

Packaging & Shipping



For FCL goods, we usually pack machines with stretched film and then load them to the



container. to ensure safety, we will fix machine with steel .



For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .

Our Services



1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support



2 After sales:

1 once problems appear, we will reply in 24 hours. And give solutions



2 provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines

Company Information

Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line
,tyre production line, vulcanizing press, waste tyre recycling plant…

welcome to visit our factory!





5000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 75000mm Indirectly Heating Vulcanizer Vulcanization Tank Vulcanizing Curing Chamber 8
