Product Details:
|
| Heating Platen Size: | 550X550 | Mold Closing ForceF: | 50T |
|---|---|---|---|
| Plate Clearance: | 150mm | Working Layers: | 4 |
| Motor Power: | 2.2KW | Overall Dimension: | 2200X900X2200mm |
| Weight: | 3600KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | High Speed Press Machine |
| High Light: | 1.65Mpa Roof Tile Forming Machine,Cylinder Roof Tile Forming Machine,200T Tile Manufacturing Machine |
||

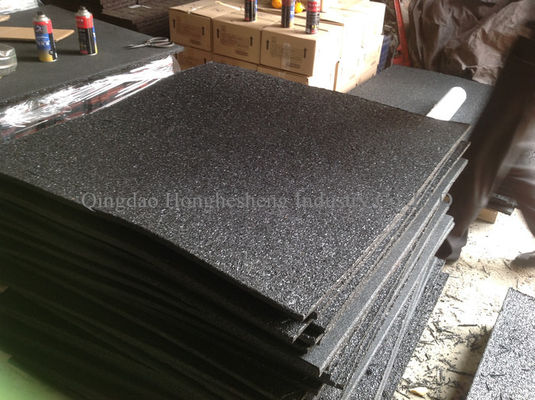

Rubber tile vulcanizing press is used to press the rubber tiles and rubber mats, it is good for using the recycling rubber.

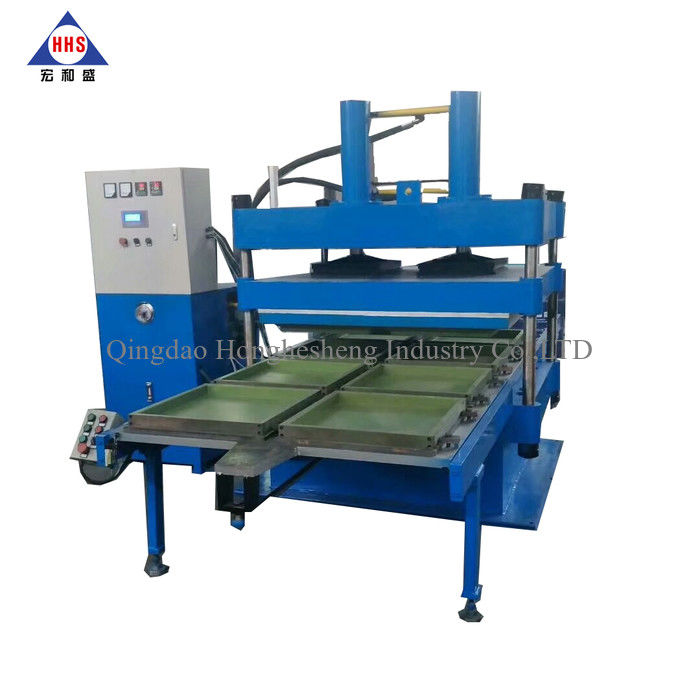

200T Top Cylinder Rubber Tile Vulcanizing Press Machine / Roof Tile Forming Machine/ Tile Manufacturing Machine
1. Technical Parameters
| No. | Model | XLB-550X550X4 |
| 1 | Nominal Clamping Force | 50T |
| 2 | Heating Platen Size | 550X550mm |
| 3 | Tile Size | 50X50cm,thickness 15-35-40 adjustable |
| 4 | Plate Clearance | 150mm |
| 5 | Working Layers | 4 |
| 6 | Piston Stroke | 400mm |
| 7 | Plate Unit Area Pressure | 1.65Mpa |
| 8 | Motor Power | 2.2KW |
| 9 | Overall Dimension | 2200X900X2200mm |
| 10 | Weight | 3600KG |
2. Features
Manual push-pull mold
High output and efficiency
Easy and safe operating
3. The Detailed Introduction
1) we usually design as clients' products and details request. our machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We can also according your needs. and decide the working layers.
2) the machine is matched with manual push-out device .

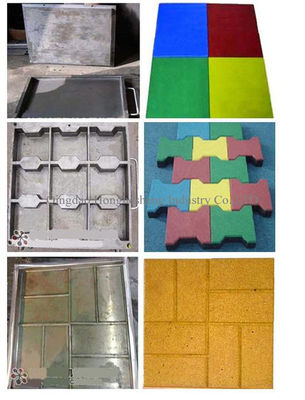

3) we also can provide the different size of the molds, from 20mm to 75mm thickness.
4) rubber mixer can also provided, if needed.
5) The press with 12 pcs molds and rubber mixer is only 8m³ of the flooring area, it can be LCL for loading, So the sea freight is very cheap.
6) We also can according to the customers' requirement, and design the non-standard type of rubber tile vulcanizing machine.
4. Detailed Pictures
