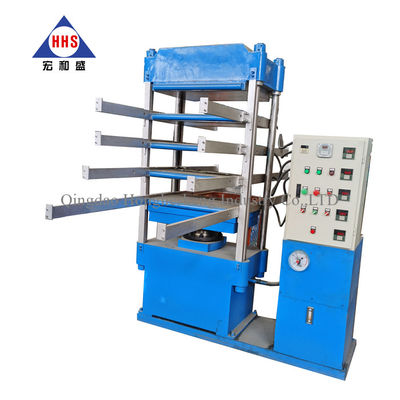

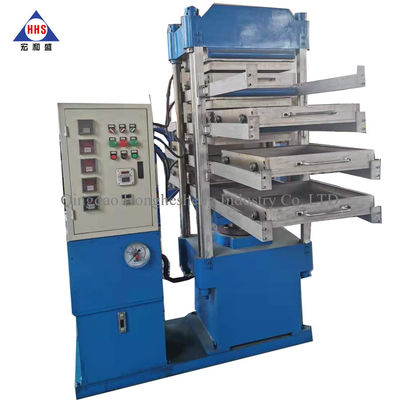

4 Layer Rubber Tile Vulcanizing Press Machine Hydraulic Press For Rubber Moulding

Large Image : 4 Layer Rubber Tile Vulcanizing Press Machine Hydraulic Press For Rubber Moulding

Product Details:

Place of Origin:	CHINA
Brand Name:	HHS
Certification:	CE/ISO
Model Number:	XLB-550X550

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD:4000 /SET
Packaging Details:	wood package/20-40 gp
Delivery Time:	15 working days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/month

Contact Now

4 Layer Rubber Tile Vulcanizing Press Machine Hydraulic Press For Rubber Moulding

Description

Heating Platen Size:	550X550	Mold Closing ForceF:	50T
Plate Clearance:	150mm	Working Layers:	1
Motor Power:	2.2KW	Overall Dimension:	200X1000X2200mm
Weight:	3500KG	Type:	Vulcanizer,tile Machine
Color:	Blue,Customizable	Power Source:	Hydraulic
Usage:	Rubber Tile From Waste Tyre Granule, Glue, Colour	Keyword:	High Speed Press Machine
High Light:	Rubber Tile Vulcanizing Press Machine , 4 Layer Vulcanizing Press Machine , 50T Hydraulic Press For Rubber Moulding

High Capacity , Long Life Rubber Floor Tile Making Machine , Rubber Tile Vulcanizing Press Machine With Mould

Product Description

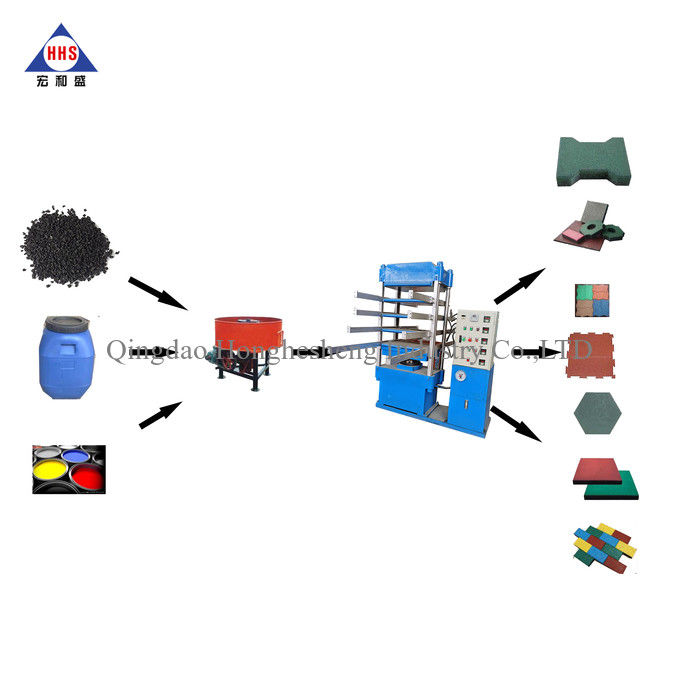

This machine is used to heat , vulcanize and solidify the rubber compound from mixer machine to be 500*500mm and 1000*1000mm rubber tiles .One set molds includes one top mold and two bottom mold . As showed in picture , the machine is equipped with adjustable rail device , which is used to push mold in and out for easy operation

Parameter/model	XLB 550x550x4
Pressure (T)	50
Hot plate size (mm)	55055040
Plates Distance (mm)	150
Working layer	4
Hot plate quantity	2
Piston stroke (mm)	500
Motor power (kw)	3
Weight(kg)	2700
