Product Details:
|
| Heating Platen Size: | 800X800 | Mold Closing ForceF: | 250T |
|---|---|---|---|
| Plate Clearance: | 300mm | Working Layers: | 1 |
| Motor Power: | 5.5KW | Overall Dimension: | 2400*1100*2400mm |
| Weight: | 5500KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |
| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | High Speed Press Machine |
| High Light: | Rubber Tile Making Machine 800x800mm,250T Rubber Tile Making Machine,1000x1000mm Hot Press Machine |
||
250T 800x800 1000x1000mm Rubber Tile Floor Hot Press Making Machine
1. Features:
It is used for vulcanizing all kinds of rubber tiles, floor, mat, etc.
High speed open/close molds, high production efficiency, low locking speed, protect mold.
It has column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger.
2. Technical Parameters:
| Type | XLB-D(Y)600*800*1/2 | XLB-D(Y)800*800*1/2 | XLB-D(Y)1000*1000*1/2 |
| Nominal molding power(MN) | 1.20 | 1.00/1.60 | 1.00/1.60 |
| Working layer number | 2 | 1-2 | 1-2 |
| Piston stroke(mm) | 250-500 | 250-500 | 250-500 |
| Main motor power(KW) | 2.2 | 2.2 | 2.2 |
| Plate clearance(mm) | 250 | 125-500 | 125-500 |
| Calefaction manner | Steam ecectricity | Steam ecectricity | Steam ecectricity |
| Configuration | Frame | Frame | Frame |
| Electric pipe heating power | 4.2 | 4.8 | 8.0 |
We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time.

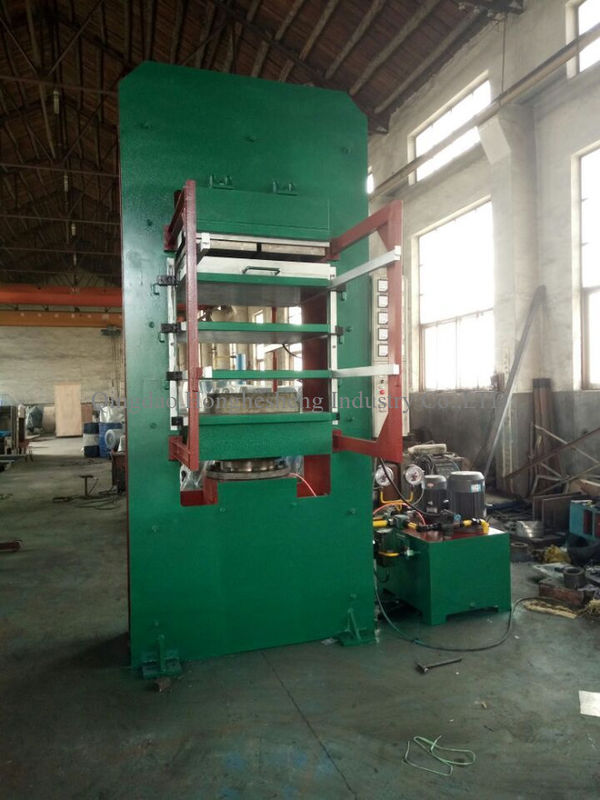

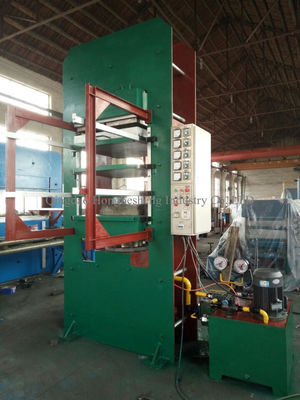

3. Machine Picture Show:
