Product Details:
|
| TYRE SIZE: | 4-18 INCHES Motorcycle Tyre ,atv | Linng Cloth: | 400 |
|---|---|---|---|
| Nose Center Height: | 850-870 | Working Air: | 0.7-0.9mpa |
| Curtain Roll Max Diameter: | 450mm | Colour: | Green,blue, Customize |
| Operation Person: | 6-8 Workers | Raw Material: | Reclaimed Rubber |
| Production Capacity: | 10000 Tires Per Day | Power (kW): | 7.5 KW |
| Weight (KG): | 2500 KG | Voltage: | According To Customers' Requirement |
| High Light: | Tyre Bladder Curing Press Machine,2 Cavity Curing Press Machine,Motorcycle Inner Tube Making Machine |
||

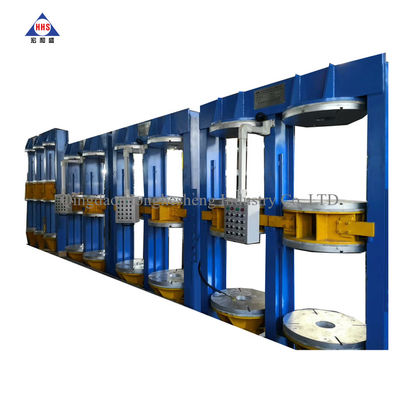

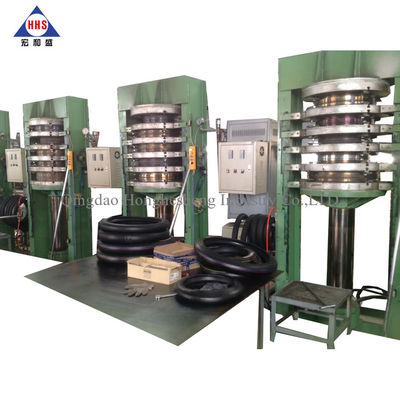

Motorcycle Tyre Bladder Curing Press Machine/ Inner Tube Making Machine
1. USES:
capsule vulcanizing press for tire: from bottom to up, capsule vulcanizing, low price, easily repair
2. Paremeter
| Model | LLY-60 | LLY-66 | LLY-103 | LLY-135 | LLY-135 | LLY-160 |
| Tire Size | M/C & S/C | S/C I/D | L/T M/C S/C | L/T M/C S/C | L/T M/C S/C | L/T M/C S/C |
| Bead Dia. Range | 8-18 | 4-10 | 8-21 | 8-21 | 8-21 | 8-21 |
| Oil Cylinder Size(mm) | 225 | 200 | 250 | 300 | 300 | 325 |
| Clamping force (tons) | 60 | 66 | 103 | 135 | 135 | 160 |
| Platen O.D.(mm) | 800 | 600 | 883 | 1000 | 1067 | 1100 |
| Mold Thickness(mm) | 50-180 | 130-300 | 100-230 | 100-340 | 100-340 | 170-400 |
| No. Of Cavity | 2 | |||||
| Internal Pressure | Max.22Kg/cm2 | |||||
| Platen Steam | Max.10Kg/cm2 | |||||
| Hydraulic Water | 20Kg/cm2 | |||||
| Compress Air | 7Kg/cm2 | |||||
| Vacuum | Above 100mm Hg | |||||
| Curing System | High temperature hot water or steam | |||||
