Product Details:
|
| Place Of Origin: | Shandong, China | Type: | Tire Machine |
|---|---|---|---|
| Marketing Type: | Ordinary Product | Warranty Of Core Co: | 3 Years |
| Core Components: | PLC, Motor | Colour: | Green,blue, Customize |
| Dimension(L*W*H):: | 900x730x1700mm | Power (kW): | 5.5 KW |
| Weight (KG): | 1200 KG | Voltage: | According To Customers' Requirement |
| High Light: | Motorcycle Tire Making Machine 50mm,Motorcycle Tire Making Machine 120mm,NJQ 120H6 Tyre Making Machine |
||

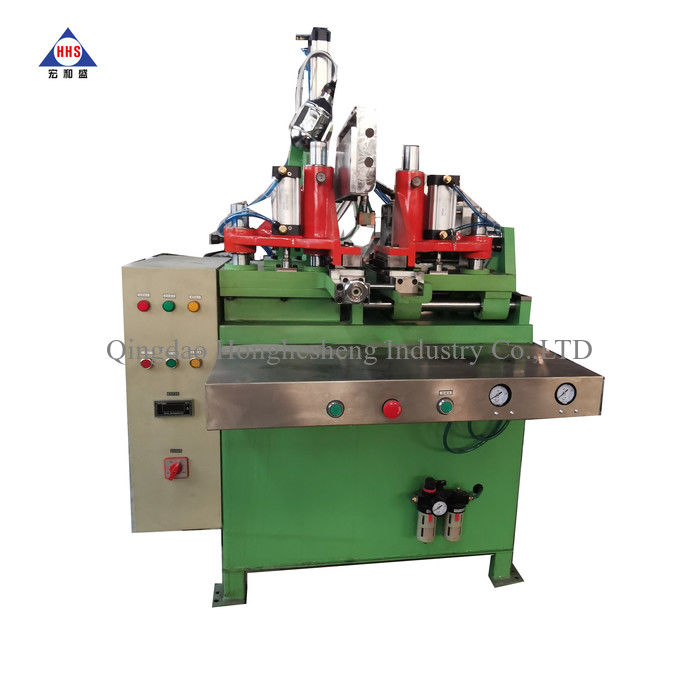

New Type Motorcycle Tire Making Machine / Tire Inner Tube Making Machine For Motorcycle
1. Application:
Inner tube splicer is mainly used in automobile,motorcycle,bicycle inner tube butyl rubber or nature rubber tube splicing ,with high efficiency and low work intensity.
2. Structure Features:
This machine adopts the most advanced hydraulic control system and PLC (programe control ). Main drive part is equipped with linear motion bearings ,improving reciprocating movement accuracy .
Horizontal cutting ,electric knife heating,big range of temperature adjustment .
Joint module adopts rubber connect mould ,applicable to various rubber compound joint ,with high accuracy and stable quality.
3. Main technical parameters:
| Inner tube splicer Type | NJQ-120H6 | NJY-160 | NJY-200H |
| Width of abutting joint (mm) | 50-120 | 100-160adjustable | 65-200 |
| Flat thickness of double layers (mm) | 1.6-6 | 1.8-8 | 2-8 |
| Max. Chucking power (KN) | 2.2 | 7.8 | 7.8 |
| Max. abutting joint force (KN) | 12 | 40 | 55 |
| Input voltage (V) | 220 | 380 | 380 |
| Working pressure of air (liquid) (Mpa) | 0.6-0.8 | 4-6 | 4-6 |
| Min. tube perimeter (mm) | 480 | 600 | 800 |
| Weight of single machine (kg) | 780 | 1200 | 2300 |
| Overall dimensions (LxWxH) (mm) | 900x730x1700 | 1235x950x1900 | 1270x1110x1900 |
