Product Details:
|
| Place Of Origin: | Shandong, China | Max Working Press: | 0.65MPa |
|---|---|---|---|
| Warranty: | 1 Years | Core Components: | PLC, Pressure Vessel |
| Color: | Customer's Requirements | Advantage: | Full Automatic |
| Certification: | ASME CE, ASME CE | Key Selling Points: | Easy To Operate |
| Voltage: | 220V/380V/450V | Dimension(L*W*H): | 3200*2200*2300MM |
| Weight: | 64000 KG | Curing Time: | 2.6~3h |
| Power: | 110 KW | Temperature: | 95~120℃ |
| High Light: | 6000mm Rubber Vulcanization Tank,4000mm Rubber Vulcanization Tank,Curing Chamber Autoclave Vulcanizer |
||

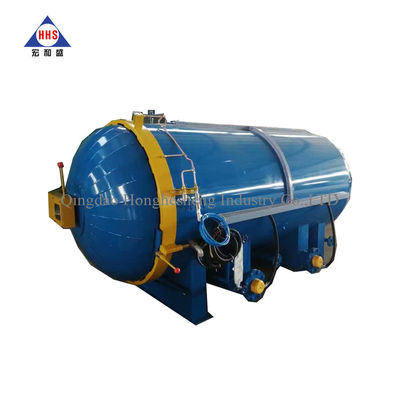

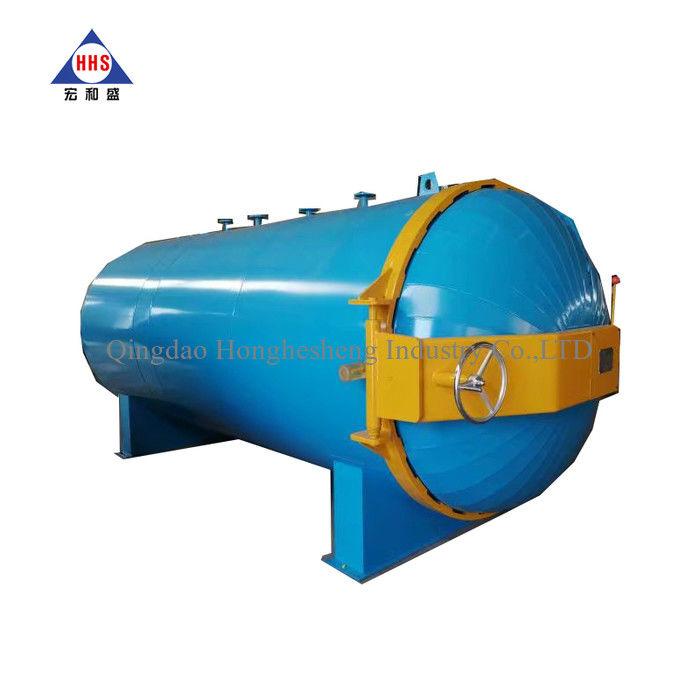

Rubber Vulcanizing Tank Tyre Retreading Equipment Curing Chamber Autoclave Vulcanizer
Multi-functional tires pre-sulfided cans are safe and reliable curing equipment, this tank chain device is the guarantee quality the first points qualified products. The equipment is available
electricity or steam, heat conduction oil heat. Equipment operation in control panel before you can adjust on the pressure, temperature, time
Electric Autocalve Work Field :
1. Rubber industry vulcanization
2. Timer /wood processing for fire prevention, anti -moth,corrosion prevention, shape keeping
3. Yarn steaming for textile such as spindle heating,socks shaped
4. Modified with high pressure for bones /horns, hydrolysis of feather
5. Aluminium oxidation treatment for composite material in aircraft industry
Rubber Curing Machines Characters
1. Famous for its Japanese technology which create even temperature distribution
2. Low energy consumption and even temperature distribution
3. Special safety chain lock system operate easily and security guaranteed
4. Fully automatic(semi-automatic )control view pannel .
5. Electrical heating
Industry Autoclave Machine Characters
1. Automatical MITSUBISHI control system with touch screen view panel, less workers ,
2. Insulation and steam heating automatically make low energy consumption & best power efficiency
3. Door open&close security guaranteed by chain lock system,easy operation and maintenance .
4. Detector of probes automatical control temperature,pressure and time .
5. Payment and Transportation could negotiated while business discussion .
Tire Autoclave Molds:
Popular in tire curing, tire recap industry, rubber pipe, roller, cables, shoes, latex belt,rubber balls , Specially composite autoclaves used in military industry ,aircraft composite ,glass composite ,carbon fiber industry .
rubber vulcanizing autoclave / rubber roller curing machine / rubber hose curing machine
| MOLD | CONTROL | DIA (mm) | LEN (mm) | MDM | PRE (Mpa) | TEM (°C) |
| DN1504B.3 | Automatic | 1500 | 4,000 | Air |
0.73~3.00
|
120~310 |
| DN0206B.3 | 2000 | 6,000 | 120~310 | |||
| DN0304B.3 | 3000 | 4,000 | 120~310 | |||
| DN0410B.3 | 4000 | 10,000 | 120~310 | |||
| DN0509B.3 | 5000 | 9,000 | 120~310 | |||
| DN0610B.3 | 6000 | 10,000 | 120`310 | |||
|
1. TYPE: Electic heating , steaming for boiler , circulation oil 2. MEDIUM : air, water ,steaming, circulation oil CONTROL MANNERS : Manual ,semi-automatic and fully automatic 4. Diameter, length ,design pressure and temperature done under customers requirements . |
||||||
| Tyre number12.00R20 | 12 | 14 | 16 | 18 | 22 | 25 |
| Theoretical steam consumptionkcal/h | 43000 | 52000 | 60000 | 65000 | 70000 | 90000 |
| Electric hot-tube power--electrickw | 50 | 60 | 70 | 75 | 80 | 100 |
| Electric hot-tube power--steamkw | 8 | 8 | 9 | 9 | 12.5 | 12.5 |
| Fan motor powerkw | 4 | 4 | 5 | 5 | 11 | 11 |
| Width--uncovered mm | 5900 | 6600 | 7400 | 7800 | 8900 | 9900 |
| Width--covered mm | 5100 | 5800 | 6600 | 7100 | 8100 | 9100 |
| Practicable work widthmm | 3600 | 4200 | 5000 | 5500 | 6800 | 7500 |
| heightmm | 2200 | |||||
| depthmm | 2900 | |||||
| weightt | 4.6 | 4.9 | 5.3 | 5.52 | 5.9 | 6.4 |
| Designed pressureMPa | 0.9 | |||||
| Maximum work pressureMPa | 0.8 | |||||
| Experimental pressureMPa | 1.1 | |||||
| Designed temperature(c) | 180 | |||||
| Power supply | AC380V,AC220V,50HZ | |||||
| Compressed air sourceMPa | 0.8 | |||||
