Product Details:
|
| Place Of Origin: | Shandong, China | Brand Name: | HHS |
|---|---|---|---|
| Model Number: | XQL-120 | Voltage: | 220V /380V /440V |
| Dimension(L*W*H): | 2300X1500X2530 | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | Type: | Rubber Cutting Machine |
| Weight: | 2000kg | Power(W): | 11KW |
| Product Name: | High Quality Vertical Rubber Bale Cutter | Time Of Blade Cutting: | 13-16 |
| High Light: | Vertical Rubber Bale Cutter,Rubber Bale Cutter CE ISO9001,XQL120 bale cutter machine |
||

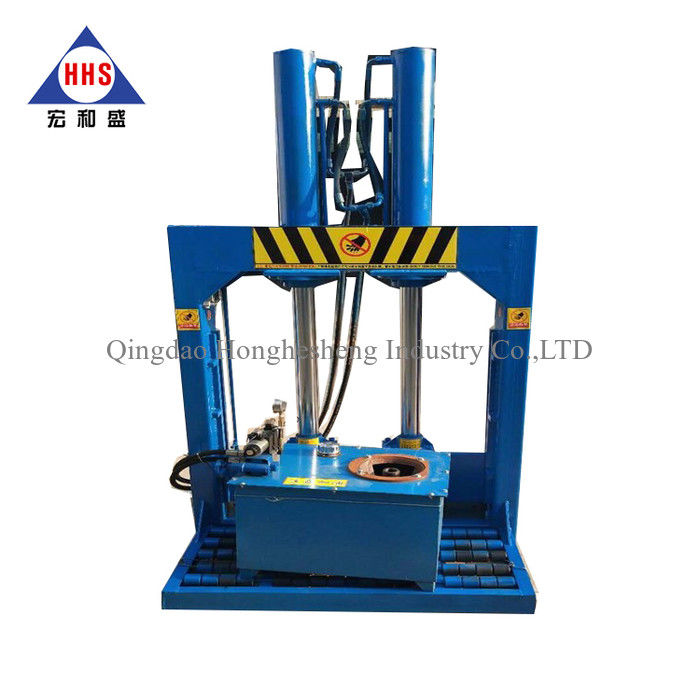

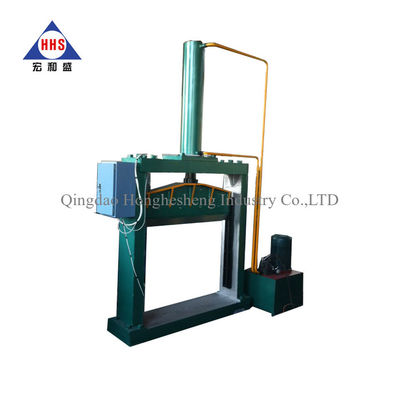

High Quality Vertical Rubber Bale Cutter With CE ISO9001 New Price
1. Main Application
This rubber cutting machine/cutter/bale splitter is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials, especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.
This bale splitter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.
When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
Two limit switches are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
Simple structure,convenient to operate,high production efficiency,reduce labor intensity.
2. Technical Parameter
| Parameter name/ type | XQL-80 | XQL-100 | XQL-120 |
| Width of blade cutter (mm) | 660 | 660 | 760 |
| Length of blade cutter (mm) | 680 | 680 | 680 |
| Total pressure of cylinder (KN) | 80 | 100 | 120 |
| Time of blade cutting (s) | 14-16 | 14-16 | 13-16 |
| Motor power (KW) | 5.5 | 5.5 | 11 |
| Overall dimension(mm) : (L × W × H ) | 2100×1440×2500 | 2100×1400×2500 | 2300×1500×2530 |
| Weight of products(KG) | 1600 | 1700 | 2000 |
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
