Product Details:
|
| Heating Platen Size: | 550X550 | Mold Closing ForceF: | 50T |
|---|---|---|---|
| Plate Clearance: | 150mm | Working Layers: | 4 |
| Motor Power: | 2.2KW | Overall Dimension: | 2200X900X2200mm |
| Weight: | 3600KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |

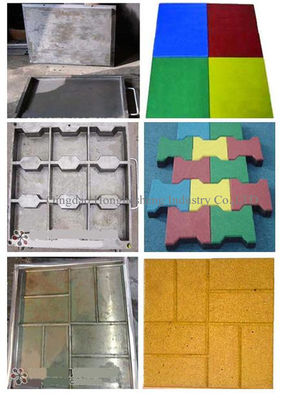

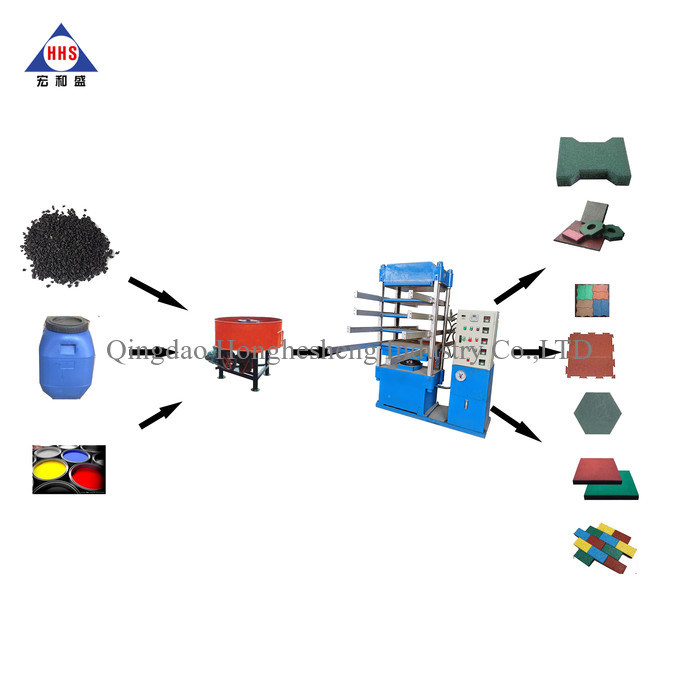

| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | Tile Vulcanizing Press |
| High Light: | 50000kg Rubber Tile Making Machine,Four Column Rubber Tile Making Machine,Vulcanizing Press Machine 550*550*4 |
||

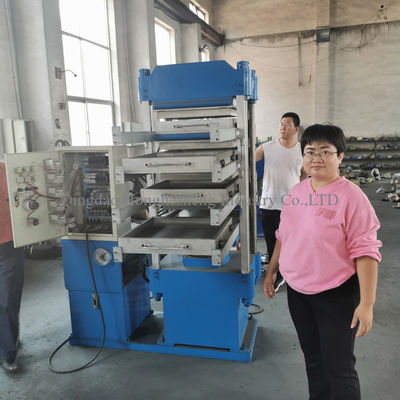

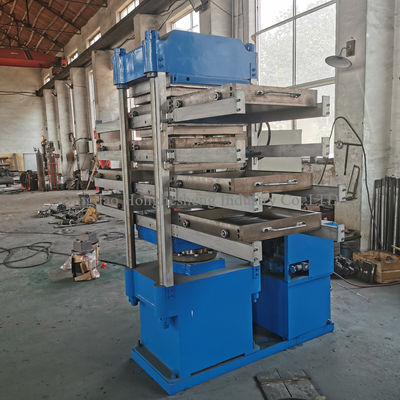

50ton Rubber Tile Vulcanizing Press Machine 550*550*4
Vulcanizing Machine For Pressing The Rubber Products Being
A Model Machine Suppliers In China
Product Description
Conveyor belt vulcanizer, also called conveyor belt vulcanizing press or belt vulcanizing press machine. It's vulcanize equipment and tools for repairing & splicing of conveyor belt. It suits for various conveyor belt, such as EP, Rubber, Nylon, Canvas and Steel cord belt, etc.
The belt vulcanizer is dependable, lightweight and portable machine, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc. Heating plates are available for rhombic, rectangular and modular type (two or more sets of heating plates together).

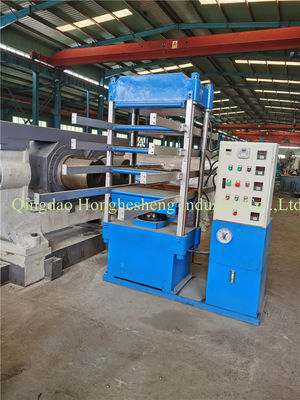

Universal column type vulcanizing machine
This machine is the main device which is used for pressing and forming various rubber model and non-model products. It can also be used for pressing various thermosetting plastic products. It has independent drive mechanism and electrical system, adopts button to centralized control. Working pressure and heating temperature can be adjust in the range.
It has the function of automatic pressure retrieve and oil pump stops overtime system. Circuit configuration is more reasonable and reliable.
Heating temperature, vulcanizing time, vulcanizing pressure, hydraulic pressure compensation can be set according to your need, easy to operate.
Hydraulic cylinder adopts to independent oil cylinder structure, easy to exchange. Piston adopts chilled cast iron, high wearable and long time use.
User can configure and select machine type according to the characteristic of products.
| type | XLB-D350x350x2 | XLB-D400x400x2 | XLB-D500x500x2 | XLB-D600x600x2/4 | XLB-D750x850x1 |
| nominal mold power(mn) | 0.25 | 0.5 | 0.8 | 1 | 1.6 |
| working layer | 2 | 2 | 2 | 2 | 2 |
| piston stroke(mm) | 250 | 250 | 250 | 300 | 300 |
| plate pressure(Mpa) | 2.04 | 3.13 | 2.4 | 4.94/2.78 | 2.51 |
| main motor power(kw) | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 |
| plate clearance(mm) | 125-200 | 125-200 | 125-200 | 125-250 | 125-250 |
| heating mode | electric oil steam | electric oil steam | electric oil steam | electric oil steam | electric oil steam |
| configuration | column | column | column | column | column |
| electric power(kw) | 1.8 | 2.7 | 3.0 | 2.7/3.6 | 4.8 |
Detailed Pictures
