Product Details:
|
| Heating Platen Size: | 550X550 | Mold Closing ForceF: | 50T |
|---|---|---|---|
| Plate Clearance: | 150mm | Working Layers: | 4 |
| Motor Power: | 2.2KW | Overall Dimension: | 2200X900X2200mm |
| Weight: | 3600KG | Type: | Vulcanizer,tile Machine |
| Color: | Blue,Customizable | Power Source: | Hydraulic |

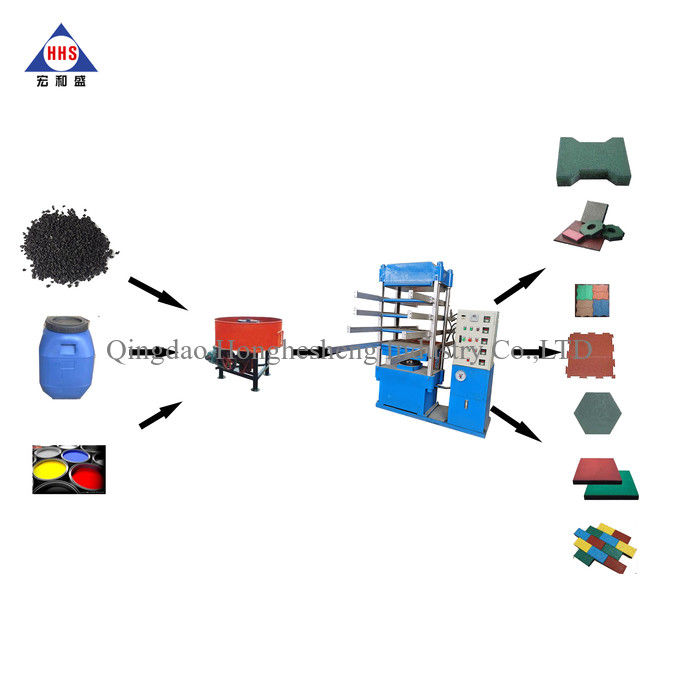

| Usage: | Rubber Tile From Waste Tyre Granule, Glue, Colour | Keyword: | High Speed Press Machine |
| High Light: | 40mm Rubber Tile Making Machine,15mm Rubber Tile Making Machine,hydraulic rubber vulcanizing machine |
||

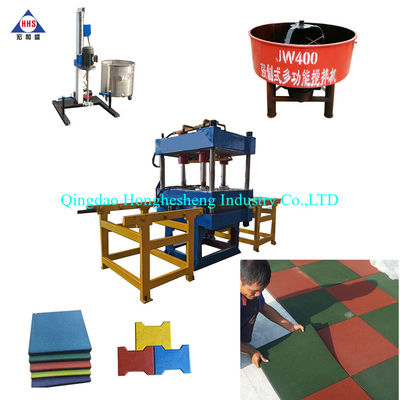

Xlb_550x550x4 Rubber Tiles Vulcanizing Press
Each layer is equipped with two sets of mold, can improve the production efficiency.
The machine is equipped with manual push-out device.
We can provide the different size mold (20mm to 75mm) and mixer.
Mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame.
It has the function of automatic pressure retrieve and oil pump stops overtime system. Circuit configuration is more reasonable and reliable.
Heating temperature, vulcanizing time, vulcanizing pressure, hydraulic pressure compensation can be set according to your need, easy to operate.
Hydraulic cylinder adopts independent oil cylinder structure, eay to exchange. Piston adopts chilled cast iron, high warable and long time use.
User can configure and select machine type according to the characteristic of products.
The main parameter of 550x550x4.
| total pressure | 50ton |
| piston size | 550x550mm |
| number of working layer | 4 |
| piston diameter | 200mm |
| stroke of piston | 600mm |
| distance between hot plate | 125mm |
| unit area pressure of hot plate | 2.0Mpa |
| power | 2.2kw |
| voltage | 380V 50Hz |
| working oil pressure | 16Mpa |
| heating mode | electrical mode |
| working temperature | 200 |
| overall size | 1800x550x2100mm |
| weight | 1700kg |
| control mode | automatic |

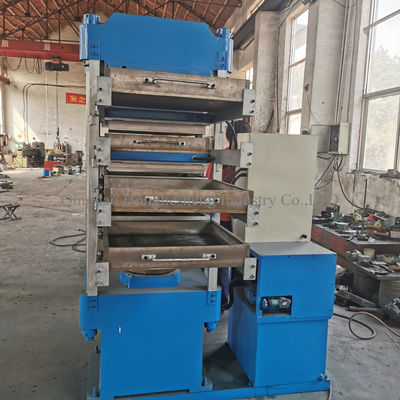

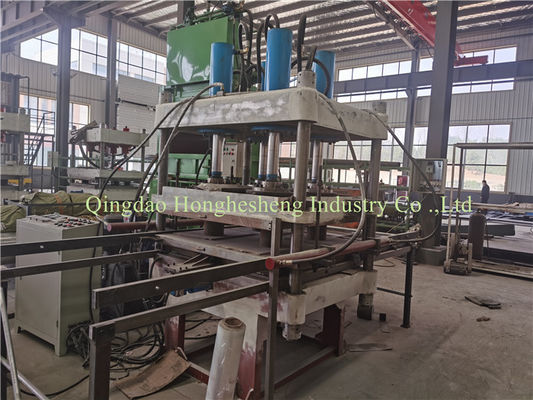

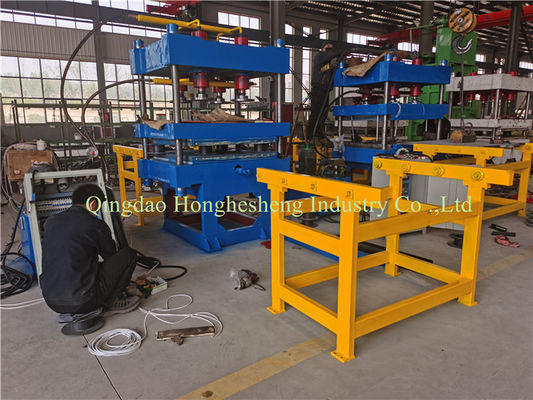

Detailed Pictures
| model | XLB-D1.2MN/1100x1100x2 |
| nominal clamp modl force | 1.2mn |
| size of hot plate | 1100x1100x55mm |
| distance between hot plate | 250mm |
| unit area pressure of hot plate | 1.0Mpa |
| piston diameter | 300mm |
| number of cylinder | 1 |
| stroke of piston | 400mm |
| number of working layer | 2 |
| working hydraulic pressure | 17Mpa |
| column diameter | 70 |
| heating method | electric heating |
| control method | PLC automatic+manual |
| overall size | 3500x1500x2200mm |
| type | four pillar type |
| weight | 6500kg |
rubber mixer
The mould
